SH103 Trace Moisture Meter GBT11133 Double Circuit Balance Titration

SH103 Trace Moisture Meter GBT11133 And ASTMD 0304.Double Circuit Balance Titration Function

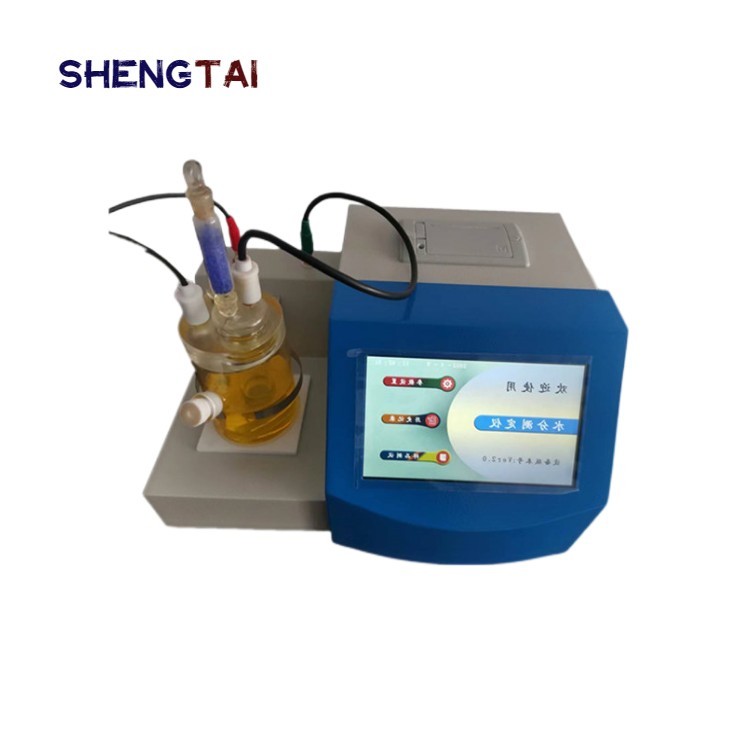

SH103 Trace moisture meter

According to the principle of Carl Fischer Coulomb titration, SH103 micro moisture tester adopts microcomputer automatic control, compared with similar products at home and abroad, it has the advantages of high sensitivity, fast electrolysis speed, short balance time, accurate blank deduction, accurate and reliable analysis results, etc.

It is a high quality analytical instrument for petroleum, chemical, electric power, environmental protection, medicine, scientific research and other departments.

The instrument adopts 32-bit embedded microprocessor as the main control core, embedded in the mini-operating system;

The instrument comes with constant current detection, double circuit balance titration function;

The electrolytic tank adopts waterproof and sealed design;

Support multiple calculation formulas, in line with the standard GBT11133 and ASTMD 0304.

Technical parameters:

The Karl Fischer Coulomb method is a reliable method for determining trace moisture in different substances, in accordance with GB/T11133. This trace moisture analyzer has successfully applied this method and adopted microcomputer control. Its analysis speed is fast, accuracy is high, LCD screen Chinese display, automatic printing, dual CPU design, blank current automatic deduction function, instrument fault self diagnosis, menu selection and other functions, To achieve better operation and use, with a simple and fully automated analytical instrument. It is an ideal instrument for oil moisture analysis

Display method: Color touch screen display

Titration method: Microcomputer-controlled coulometric titration

Output method: automatic calculation, capable of outputting ug, PPM, and%

Measurement range: From 0.00001% to 100% in percentage, according to PPM, it can range from 0.1ppm to one million ppm (1ppm=0.0001%)

Resolution: 0.1ug

Electrolytic control: Automatic electrolytic current tracking control (maximum 400mA)

Titration rate: 2.5mg/min (maximum)

Sensitivity: 0.1ug to -100g, no more than 2%. Conversion from 1mg to 0.3% (excluding injection error)

Printer: 16 character needle printing paper width 44 millimeters

Power supply: AC 220V ± 10% 50Hz ± 10%

Power: 60VA

Operating environment temperature: 5-40℃

Operating environment humidity: ≤ 90%

External dimensions: 380 * 350 * 390mm, approximately 18kg

Required consumables: Karl Fischer reagent, the instrument is equipped with a set of reagents, which can be purchased or self equipped after use.

DL/T 915-05,GB 5832-1986

Meet the following standards:

1, GB/T7600 "in operation transformer oil moisture content determination method (coulomb method)"

2, GB6283 "chemical products in the determination of moisture content Karl Fischer method (general method)"

3, SH/T0246 "determination of water content in light petroleum products (electric quantity method)"

4, SH/T0255 "additives and lubricating oil containing additives moisture determination method (electric quantity method)"

5, GB/T11133 "Determination of water content in liquid petroleum products (Karl Fischer method)"

6, GB/T7380 "surfactant water content determination (Karl Fischer method)"

7, GB10670 "industrial fluoromethane in the determination of trace moisture in the Karl Fischer method"

GB/T606 General method for determination of moisture in chemical reagents Karl Fischer method

9, GB/T8350 "denatured fuel ethanol"

10, GB/T8351 "automotive ethanol gasoline"

11, GB/T3776.1 "pesticide emulsifier moisture determination method"

12, GB/T6023 Determination of trace moisture in butadiene for industrial use - Karl Fischer Coulomb method

13, GB/T3727 Industrial ethylene, propylene determination of trace water

GB/T7376 Determination of trace moisture in fluoroalkanes for industrial use

GB/T18619.1 Determination of water content in natural gas -- Karl Fischer - Coulomb method

16, GB/T512 "grease moisture determination method"

17, GB/T1600 -- Determination of pesticide moisture

18, GB/T11146 "crude oil water content determination method (Karl Fischer coulomb method)"

19, GB/T12717 "industrial acetate test method"

GB/T5074 Coking products -- Determination of moisture

1,1, 2-tetrafluoroethane (HFC-134a) for industrial use

1 PPM = 0.0001%
