SD-2801A Needle Penetration Tester Dry Powder Fire Extinguishing Agent

SD-2801A Needle Penetration Tester Dry Powder Fire Extinguishing Agent

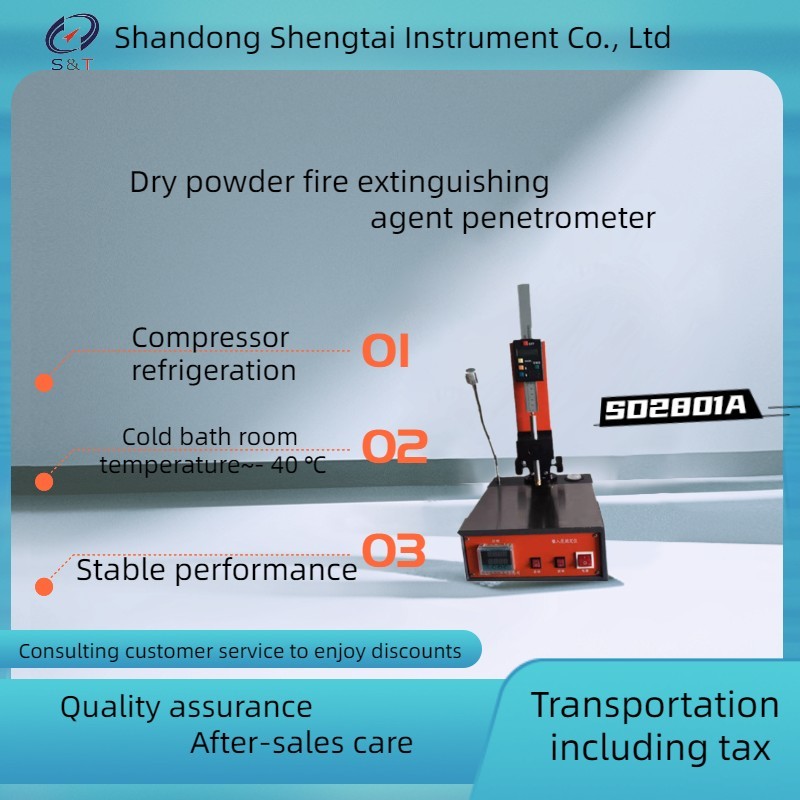

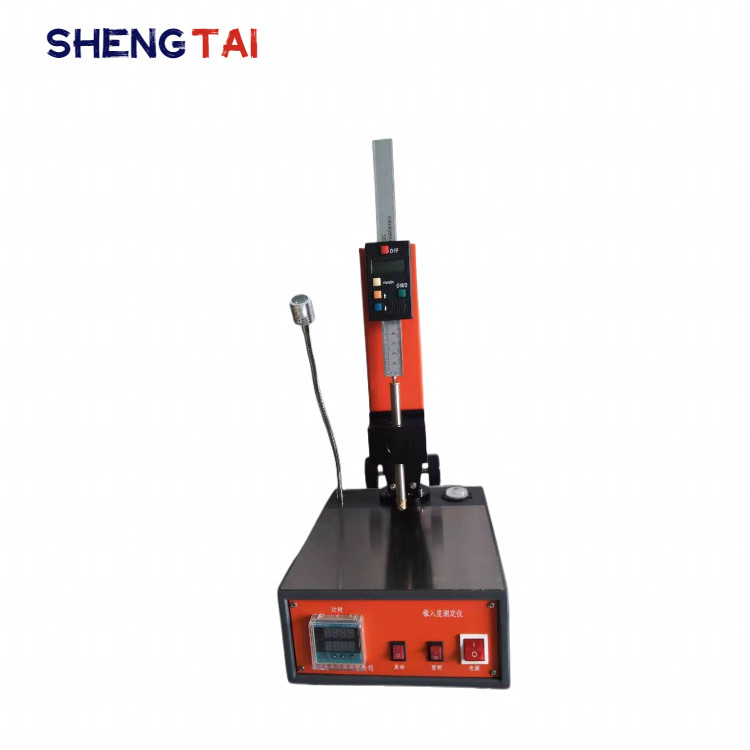

SD-2801A Needle penetration tester

SD-2801A dry powder fire extinguishing agent penetration tester is designed and manufactured according to the requirements of "dry powder fire extinguishing agent" GB 4066-2017 and GA979-2012D dry powder fire extinguishing agent, but also suitable for road oil asphalt, modified asphalt and liquid oil asphalt or emulsified asphalt residual injection degree test.

I. Main technical features

1, the use of digital display to display the taper value, intuitive and eye-grabbing.

2. Digital display of cone entry time control device.

3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

II. Main technical parameters and indicators

1, measuring range: 0 ~ 600 cone degree;

2, cone timing control device: the time can be set according to their own needs, the time error is less than ±0.1 seconds;

3, the resolution of 0.01㎜;

4, coning accuracy: ±1 coning degree;

5, standard cone: 2.5±0.05g (including standard bar 50g±0.05g),

6, lifting bracket: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;

7, others: equipped with cold light source, easy to use and operation.
