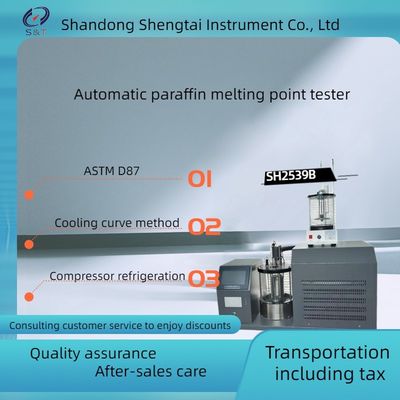

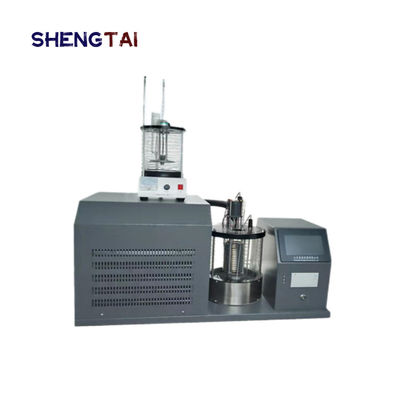

Touch Screen SH2539B Automatic Paraffin Melting Point Analyzeris accorging to GB/T2539 ASTMD87

SH2539B automatic paraffin melting point tester is in line with the national standard GB/T2539 ASTMD87 ISO3841 design and production, double temperature double bath this instrument is according to the national standard GB/T 2539-81, international standard ISO3841 and the American standard ASTMD87 "paraffin melting point (cooling curve) determination method" specially designed and manufactured for the instrument requirements.

Suitable for measuring the melting point of paraffin wax.

Not suitable for the determination of microcrystalline waxes and greasy paraffin products

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

Color touch screen;

The test results can be stored;

You can view historical data;

The instrument prints the results, the experimental results can be exported through the U disk, stored in the computer can be compared for many times.

Instrument functions:

1, Paraffin melting point tester cold bath box for double hole single temperature, compressor refrigeration, cold temperature can be set arbitrarily

2, paraffin melting point tester adopts compressor refrigeration.

3, The sensor adopts PT100, with high temperature sensitivity and resolution, strong anti-interference and high temperature control precision.

4, the instrument compressor is small in size, light in weight, stable in operation, no vibration, very suitable for laboratory use.

5. The left side of the water bath is the melting sample, and the right side is the test sample.

Instrument indicators:

Working environment: 0℃~35℃.

Temperature control accuracy of bath: ±0.1℃.

Relative humidity: ≤80%.

Working power supply: 220V±10% 50Hz.

Machine power: 800W.

Size: 580 * 420 * 480mm Weight: 42kg

Temperature control range: 0℃~120℃ adjustable.

Display mode: color touch screen display.

Refrigeration mode: compressor refrigeration.

Storage: 199 sets of historical data can be stored for easy query;

★ Result output: at the same time can be equipped with U disk output function, output to the computer for long-term storage

★ Output format: the output format of the U disk is CSV or EXCEL.

Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade

★ Data management: can be connected to LIMIS system

Data memory: microcomputer instrument memory can be expanded to 16 gigabytes.
