Cone Penetration Apparatus ASTM D217 needle Penetrometer with constant temperature SD2801C

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SD-2801C
Minimum Order Quantity 1
Price 6800
Payment Terms T/T
Supply Ability 100+

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 0 ~ 600 Cone Penetration (digital Display Table Shows 0-60mm) Cone-in Time Control Device The Time Can Be Set Arbitrarily According To Your Needs, And The Time Error Is Less Than ± 0.1 Seconds
Resolution 0.01㎜ Needle Penetration Accuracy ± 1 Cone Penetration
Temperature Measurement Range 10 ~ 50 Degrees Temperature Control Accuracy 25 ± 0.1 ℃
Standard ASTM D 5 Key Words Asphalt Cone Penetration Tester
Key Words1 Grease Cone Penetration Meter
High Light

600 cone penetration test apparatus

,

GB / T269 penetrometer apparatus

Leave a Message
Product Description

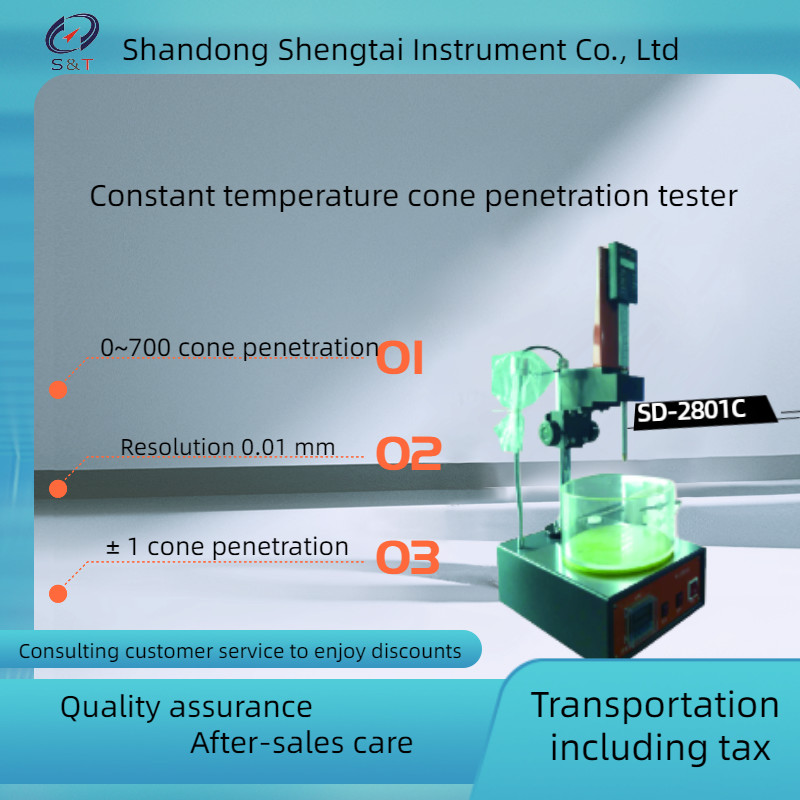

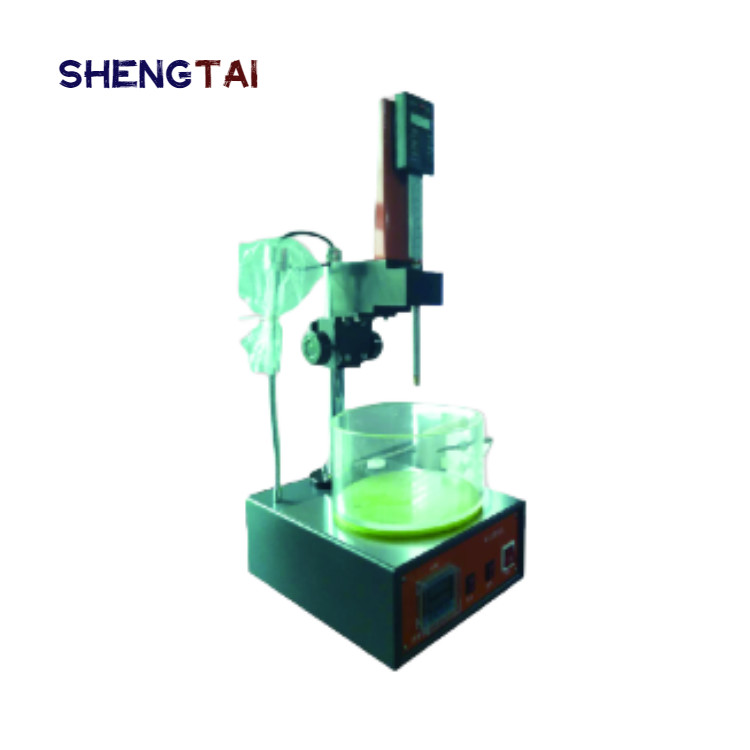

SD2801C constant temperature needle penetration meter is designed and manufactured according to the technical requirements and related regulations of GB/T269 "Determination of the cone penetration of grease and petroleum grease" and GB/T4509 standard of the People's Republic of China. It is mainly used for testing the needle penetration of asphalt and lubricating grease (or petroleum grease).

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.

Standard: ASTM D217 ASTM D1403

Constant Temperature Needle Penetration Tester SD2801C

ASTM D217 Penetrometer with constant temperature bath



I. Main technical features

1, the use of digital display to display the taper value, intuitive and eye-grabbing.

2, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

3, Equipped with heating constant temperature bath, water bath temperature automatic control, high cost performance instrument.

II. Main technical parameters and indicators

1, measuring range: 0 ~ 700 taper degree (digital display table 0-70mm);

2, cone entry time control device:;

Time can be set according to their own needs, the time error is less than ±0.1 seconds;

3, the resolution of 0.01㎜;

4. Needle insertion accuracy: ±1 cone insertion degree;

5, temperature range: 10 ~ 50 degrees (with semiconductor cold circulation device, can be heated or refrigerated);

6, temperature control accuracy: 25±0.1℃;

7, temperature control mode: high precision digital temperature controller, can be constant temperature to the standard requirements of 25 degrees;

8, standard cone: 102.5±0.05g, in line with the specifications of the national standard GB/T269;

9, lifting bracket: coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;

10, others: equipped with cold light source, easy to use and operation.

measuring range : 0 ~ 700 taper degree (digital display table 0-70mm)
cone entry time control device Time can be set according to their own needs, the time error is less than ±0.1 seconds;
resolution 0.01㎜;
Needle insertion accuracy ±1 cone insertion degree;
temperature range 10 ~ 50 degrees (with semiconductor cold circulation device, can be heated or refrigerated);
temperature control accuracy 25±0.1℃;
temperature control mode high precision digital temperature controller, can be constant temperature to the standard requirements of 25 degrees;
standard cone 102.5±0.05g, in line with the specifications of the national standard GB/T269;
lifting bracket coarse adjustment, fine adjustment of double lifting adjustment mechanism, easy to tip alignment sample plane;
others equipped with cold light source, easy to use and operation
Penetrometer size :340*282*515mm weight: 11kg
Constant temperature bath size:412*322*305mm weight:10.5kg



Packing list:

S/N Name Unit Quantity Remarks
1 Instrument host set 1
2 Standard vertebral body piece 1
3 Standard sample box piece 1
4 Heating and cooling thermostatic bath set 1 Warm up in winter and cool down in summer
5 Power cord piece 1
6 instructions copy 1
7 Certificate warranty card copy 1
