Cone Penetration Apparatus ASTM D217 Grease Penetration tester ASTM D5 Asphalt penetration meter

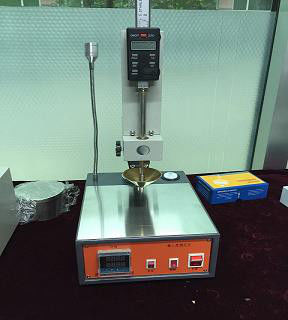

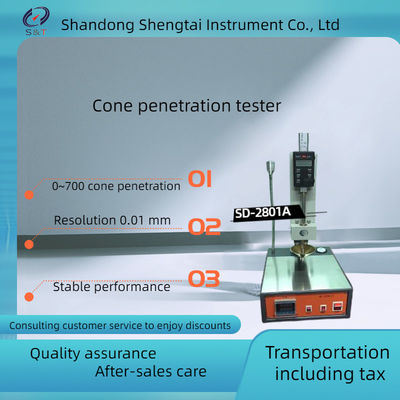

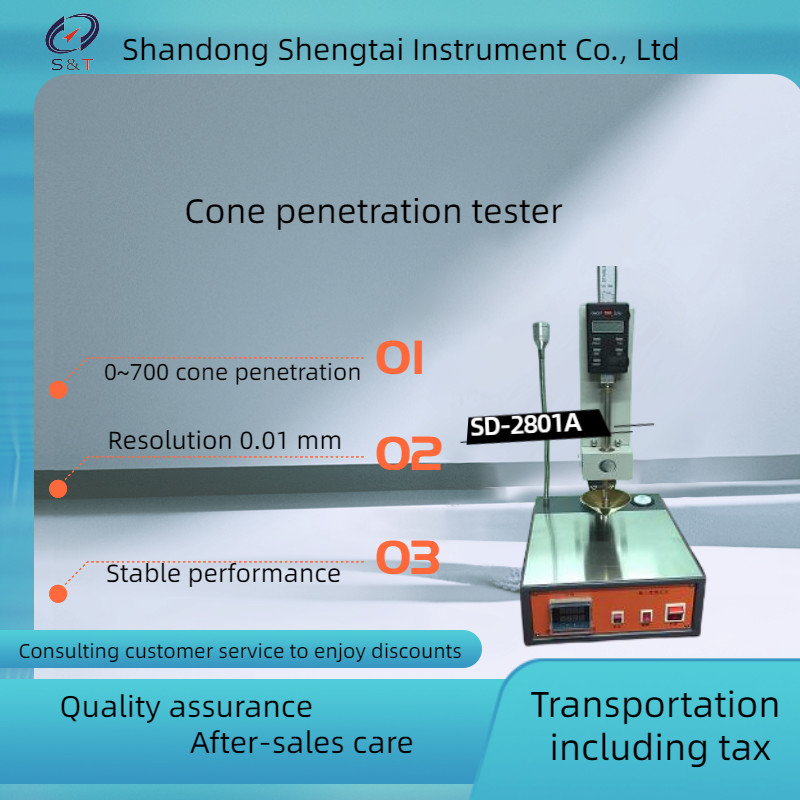

     SD-2801A Cone Penetration Tester is designed and manufactured according to the People's Republic of China Standard GB / T269 "Determination of Cone Penetration of Lubricating Grease and Petroleum Grease" and ASTM D217    ASTM D5  which is mainly applicable to grease (or Vaseline) Cone penetration test. This instrument can also be used for solid fine particles, powders, colloids, frozen bodies and other materials, as well as food raw materials such as cheese, sugar gum, butter, wheat cream, cream, fermentation body, etc., in the food industry, transportation highway engineering and other industries Departments can be widely used.

Main technical features
1. Adopt a digital display to display the cone penetration value, which is intuitive and eye-catching.
2. Digital display of cone-in time control device.
3. It has the functions of coarse and fine adjustment of the lifting frame, which is convenient to adjust and accurate to the needle.

Main technical parameters and indicators
1. Measuring range: 0 ～ 600 cone penetration;
2. Cone-in time control device: The time can be set arbitrarily according to your needs, and the time error is less than ± 0.1 seconds;
3. Resolution 0.01㎜;
4. Cone penetration accuracy: ± 1 cone penetration;
5. Standard cone: 102.5 ± 0.05g, which meets the requirements of national standard GB / T269;
6. Lifting bracket: Coarse adjustment and fine adjustment dual lifting adjustment mechanism to facilitate the needle tip to align with the sample plane;
7. Others: Equipped with cold light source, easy to use and operate.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
