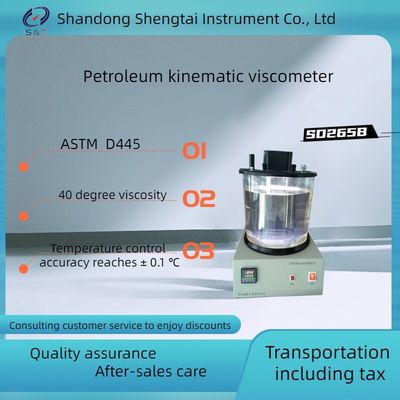

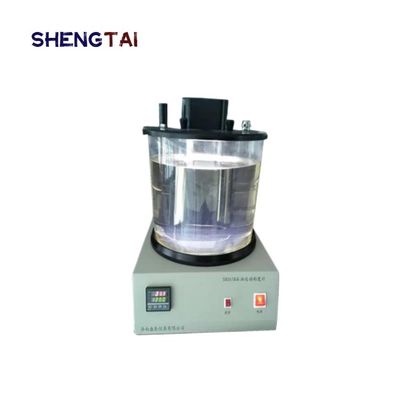

ASTM D445 semi-automatic oil motion viscometer lubricating oil 40 degree motion viscometer single cylinder SD265B

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SD265B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100+

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC 220±10%, 50Hz Heating Device Electric Heating With Power Of 1800W.
Stirring Motor Power 6W, Speed 1200r/min. Temperature Control Range Arbitrarily Set The Temperature Within The Range Of Room Temperature ~ 100℃.
Temperature Control Accuracy ±0.1℃ Ambient Temperature Room Temperature ~ 35℃.
High Light

Petroleum kinematic viscometer

,

GB / T265 Kinematic Viscosity Tester

Leave a Message
Product Description

SD265B oil kinematic viscosity meter manufacturing in line with the law of the People's Republic of China industry standard SY/T5651 the kinematic viscosity of petroleum products tester technical conditions of specified requirements, applicable to according to the standard of the People's Republic of China GB/T265 the kinematic viscosity of petroleum products determination method and dynamic viscosity calculation method "regulation, the determination of liquid petroleum products (Newton liquid) at a constant temperature under the condition of kinematic viscosity.
I. Main technical features
1. The instrument adopts the form of an all-in-one machine, and the control switch adopts the form of light touch keys, with novel design, compact structure and elegant appearance.
2. Intelligent digital display temperature controller is adopted to control temperature rapidly, respond quickly, overset small, and control temperature accuracy up to ±0.1℃.
3. Adopt the hard glass cylinder and electric stirring device, the sample is observed clearly, and the temperature in the bathtub is even.
4. Two groups of tests can be carried out simultaneously.

II. Main technical parameters and indicators

Working power supply AC 220±10%, 50Hz.
Heating device electric heating, power 1800W.
Stirring motor power 6W, speed 1200r/min
Temperature control range room temperature ~ 100℃ range of temperature can be set.
Temperature control accuracy ±0.1℃.
Ambient temperature

room temperature ~ 35℃.

relative humidity≤ 85%.

Overall dimension: 320*380*530mm weight: 12kg

If the kinematic viscosity is measured at 100 degrees, transformer oil and stopwatch are required

Packing list:

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Water bath crock 1 piece 1
3 Water bath top cover assembly 1 piece It has two capillaries
4 thermometer 1 piece thermometer
5 power cord 1 piece
6 fuse tube 1 piece 10A
7 Capillary viscometer 4 piece Any 4 viscosity tubes that comply with GB/T265
8 Operating instruction 1 copy
9 Wash ears ball 1 piece
10 packing list 1 copy
11 Certificate of approval 1 copy

ASTM D445 semi-automatic oil motion viscometer lubricating oil 40 degree motion viscometer single cylinder SD265B 0ASTM D445 semi-automatic oil motion viscometer lubricating oil 40 degree motion viscometer single cylinder SD265B 1ASTM D445 semi-automatic oil motion viscometer lubricating oil 40 degree motion viscometer single cylinder SD265B 2

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

ASTM D445 semi-automatic oil motion viscometer lubricating oil 40 degree motion viscometer single cylinder SD265B 3
