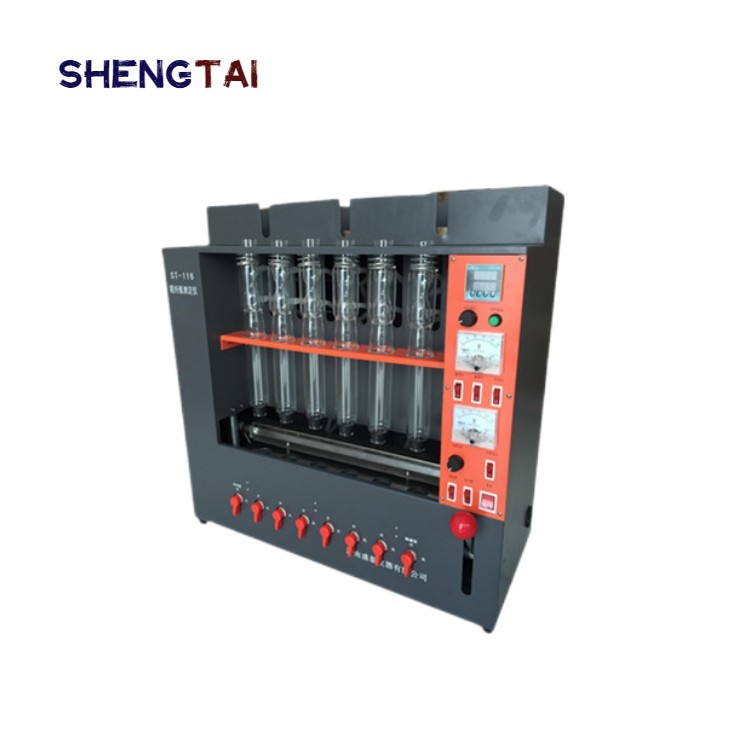

Neutral Acid Fiber Tester ST116A Van Soest's washing fiber analysis method
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODDEL | ST116A | Power Supply | AC220V/50HZ |
---|---|---|---|
Power | 3.3KVA | Volume | 540 ×450× 670mm |
Measurement Time | About 90 Minutes On The Instrument. | ||
High Light | 6 / times Coarse Fiber tester,6 / times Coarse Fiber Testing Instrument |
ST116A Neutral Acid Fiber Tester is an instrument that uses Van Soest's washing fiber analysis method to determine neutral washing fiber (NDF) and acid washing fiber (ADF), and performs weight measurements to obtain the neutral washing fiber and acid washing fiber content of the sample. Use neutral or acidic detergent to digest and boil the sample under specific conditions, then repeatedly filter in a specific crucible, rinse twice with acetone, move the crucible into a 100 degree drying oven for 3 hours, and then weigh and calculate.
Technical indicators:
1. Test objects: various feeds, grains, grains, foods, and other agricultural and sideline products that require the determination of crude fiber, neutral fiber, and acidic fiber content;
2. Number of test samples: 6/time;
3. Repeatability error:
When the cellulose content is below 10%, the absolute value error is ≤ 0.4;
When the cellulose content is above 10%, the relative error is ≤ 4%;
4. Measurement time: about 90 minutes on the instrument.
5. Power supply: AC220V/50HZ;
6. Power: 3.3KVA;
7. Volume: 540 ×450× 670mm;
8. Weight: 28kg.
Product Packing List
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Fiber crucible | 6 | piece | |
3 | Glass Flask | 3 | piece | |
4 | Power cord | 1 | piece | |
5 | Fuse tube | 1 | piece | In the safety seat 10A |
6 | Instruction manual | 1 | copy | |
7 | Certificate of Conformity Warranty Card | 1 | copy |
