Standard Penetration Test ASTMD217Dynamic Grease Cone Penetrometer

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SD-2801A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SD-2801A Measuring Range 0 ~ 700 Cone Degree
The Time Error Less Than ±0.1 Seconds Coning Accuracy ±1 Coning Degree
Standard National Standard GB/T269
High Light

Asphalt penetration meter

,

Asphalt Penetrometer Apparatus

Leave a Message
Product Description

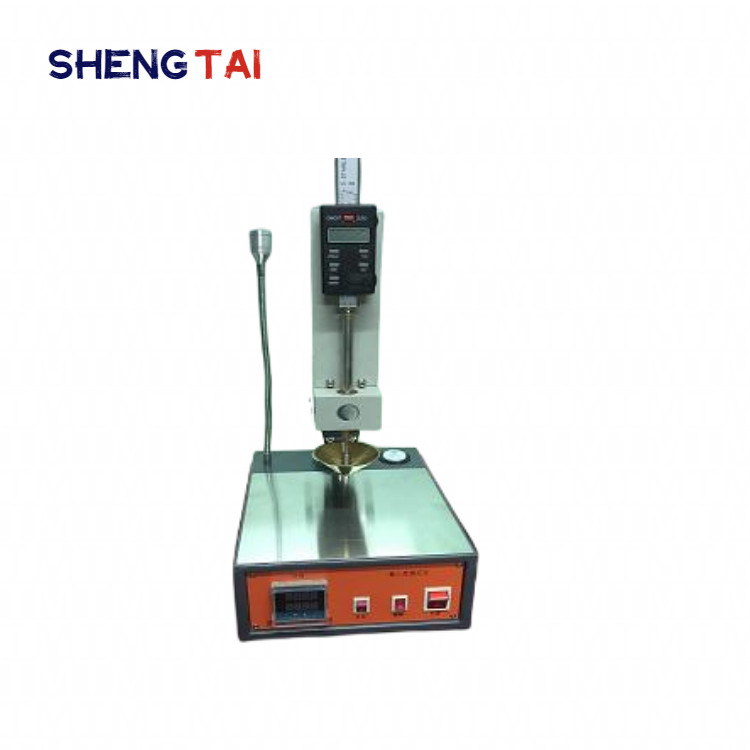

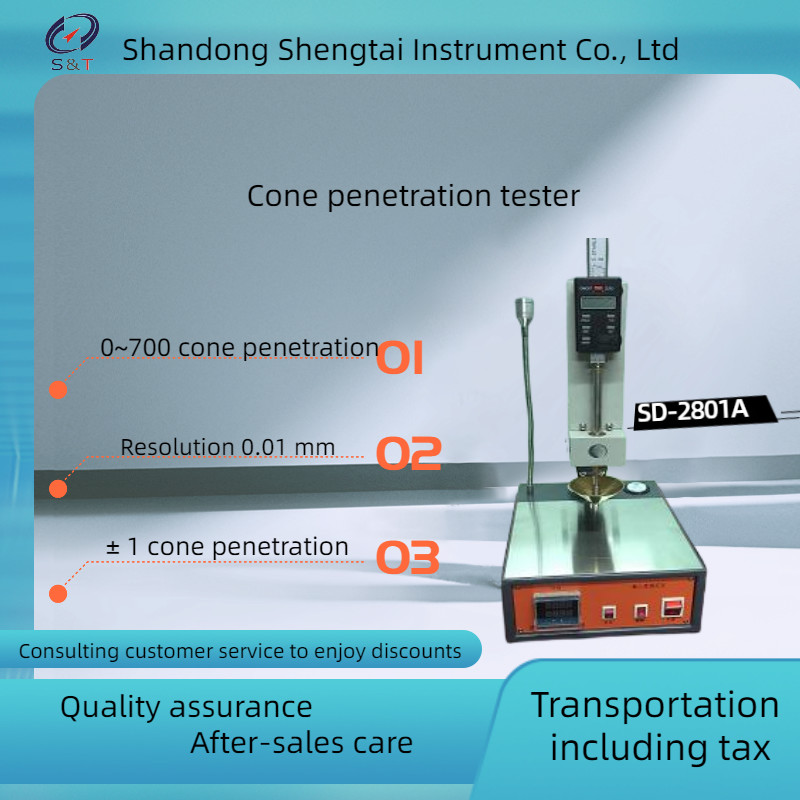

   SD-2801A cone penetration tester is designed and manufactured according to the technical requirements and relevant regulations of the People's Republic of China standard GB/T269 "Grease and petroleum grease cone penetration determination method". It is mainly suitable for testing the cone penetration of grease.

The instrument can also be used for solid fine grain, powder, colloid, frozen materials, as well as cheese, sugar gum, butter, cream, fermented materials and other food raw materials inspection, in food industry, traffic and highway engineering and other industrial departments can be widely used.



I. Main technical features

1, the use of digital display to display the taper value, intuitive and eye-grabbing.

2. Digital display of cone entry time control device.3, With lifting frame coarse adjustment, fine adjustment function, easy adjustment, accurate needle.

II. Main technical parameters and indicators

measuring range 0 ~ 700 cone degree
the time error less than ±0.1 seconds;
coning accuracy ±1 coning degree
standard national standard GB/T269
Instrument size: 340*282*515 weight: 11kg





Timing controller Time can be set according to their own needs, the time error is less than ±0.1 seconds;
Resolution 0.01mm
Temperature control accuracy 25±0.1ºC (Note:The ambient temperature shall not exceed 20 ºC)
Temperature control mode High accuracy digital temperature controller
Constant temperature bath Hard glass bath
Working power supply 80W
Standard needle 2.5±0.05g
Stirring automatically stirred by a magnetic stirrer
Standard cone 102.5±0.05g
Needle holder It can be adjusted roughly and finely. Convenient toad just and exact to aim the sample
Others Equipped with a cold light source and a magnifier; Convenient for operation and observation



Packing list:

S/N Name Unit Quantity Remarks
1 Instrument host set 1
2 Standard cone piece 1
3 Connecting rod piece 1
4 Sample holder piece 1
5 Fuse 5A(∮5×20) piece 1
6 Power cord(250V 6A) piece 1
7 instructions copy 1
8 Certificate warranty card copy 1

Standard Penetration Test ASTMD217Dynamic Grease Cone Penetrometer 0Standard Penetration Test ASTMD217Dynamic Grease Cone Penetrometer 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

Standard Penetration Test ASTMD217Dynamic Grease Cone Penetrometer 2
