|Name:||SH105D Balance Method Low Temperature Closed Flash Point Instrument||Working Power Supply::||AC220V ± 10%, 50Hz|
|. Flash Point Detection Range::||(-30 ～ + 50) ℃||Temperature Control Accuracy::||± 0.1 ℃|
|Ambient Temperature::||5 ℃ ～ 30 ℃||Relative Humidity::||(30 ～ 80)%|
|Power Consumption Of The Whole Machine::||No More Than 300W||Key Words:||Paints And Solvents Rapid And Low Temperature Closed Cup Flash Point Test Apparatus|
pour point tester,
transformer oil ppm testing kit

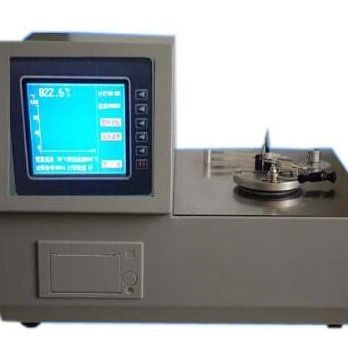

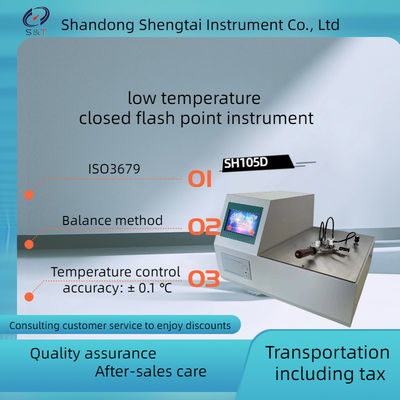

SH105D balance method low temperature closed flash point instrument
The SH105D balance method low temperature closed flash point instrument is designed and manufactured according to the requirements of the People's Republic of China Standard GB / T 5208 "Determination of Flash Point" Rapid Balance Closed Cup Law. This instrument also meets the requirements of ISO 1523 and ISO 3679 standards.
This instrument is based on advanced electronic temperature control instruments and is equipped with appropriate interface circuits to realize the automation of temperature control. It has functions such as automatic heating power switching and automatic temperature control. The instrument is simple to operate, reasonable in structure, accurate in detection, stable in performance, and intuitive in display. It is an ideal substitute for imported instruments, and can meet the requirements of petroleum, chemical, paint, paint, railway, aviation, electric power, commodity inspection and scientific research units on petroleum products Flash point quick test requirements.
This instrument is especially suitable for the flash point test of closed cups with flash point of -30 ℃ ～ + 100 ℃
Main technical indicators and parameters
★ 1. Upgrade to 7-inch touch color screen display
2. Flash point detection range: (-30 ～ + 100) ℃;
3. Measurement precision: The absolute difference between the two experimental results is less than 2 ℃ (same operator);
The absolute difference between the two experimental results is less than 3 ℃ (different operators);
4. Temperature control accuracy: ± 0.1 ℃;
5. Ignition device: Electronic ignition gun ignites;
6. Refrigeration method: semiconductor internal refrigeration and external compressor refrigeration cycle
★ 7. It can store 199 groups of historical data after upgrade for easy query; at the same time, it can output U disk
★ 8, laser printer interface, can link HP1108 laser printer (optional)
★ 9, with date and password setting function.
10. Standard micro printer, automatic measurement, automatic thermal printing
★ 11, with TCP network transmission function
★ 12, can upload and connect limis system
13. Compliance with standards: Compliance with Chinese standards GB / T5208-2008, GB5207, GB7634, GB / T21790
14. Power supply voltage: AC220V ± 10%, 50Hz;
15. Power consumption of the whole machine: no more than 300W
16. Ambient temperature: 5 ℃ ～ 30 ℃;
17. Relative humidity: (30 ～ 80)%.
|Product name||Paints and Solvents Rapid and Low Temperature Closed Cup Flash Point Test Apparatus|
|Power Supply||AC 220V±10%, 50 Hz|
|Flash point measurement range||-30~50°C|
|Measurement accuracy||Repeatability: less than 2°C|
|Reproducibility: less than 2°C|
|Temperature controlling accuracy||±0.5°C|
|Igniter||an electron igniter|
|Refrigeration type||It uses semiconductor for refrigeration (It connects to outer cooling water);|
|Power supply||AC 220V±10%, 50 Hz|
|Total power consumption||not more than 300 W|
|Standards||GB/T261, ASTM D93||GB/T261, ASTM D93||GB/T261, ASTM D93||GB/T5208 ASTMD3278,ASTMD3828|
|Test sample||Gaoline, jet fuel, kerosene, diesel, gas turbine liquid, solvent oil, lubricating oil, insulating oil, fuel oil , petroleum wax, electricoil, biodiesel, etc.||Colored paints, oil paints, adhesives, Solvents and petroleum products|
|Temperature display||Thermometer||Color LCD||Color LCD||LCD|
Standard oil cup
Standard oil cup
Standard oil cup
Packaging and transportation
