Kerosene, diesel and transformer oil detection instrument SH105B full-automatic closed flash point tester

Place of Origin China
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH105B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 1000 set per mouth

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Model SH105B Working Power Supply AC220V±10%, 50Hz
Accuracy ≥104℃±2℃ ≤104℃±1℃ Range Room Temperature ~ 390℃
Power Consumption Of The Whole Machine Not More Than 500W Ambient Temperature (10~40) ℃
Relative Humidity ≤ 80%
High Light

ASTM D 93 Flash Point Tester


ASTM D 93 flash point analyzer

Leave a Message
Product Description

SH105B closed flash point automatic tester is designed and manufactured in strict accordance with the GB/T261 standard. It uses microcomputer technology and large screen LCD display.

The instrument is heated up, automatically raised and lowered, automatically ventilated, automatically ignited, automatically displayed, automatically locked flash point value, and automatically printed results according to the standard method. After the test, it can automatically cool down and realize the full automation of the working process. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. It is widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO-2719, ASTM D93, Pensky-Marten closed cup method GB261 GB 5085.4-2007


Instrument features

1, the use of color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard, for the pre-value temperature, sample label, atmospheric pressure, test date and other parameters, with a prompt menu-oriented input.

2. Simulate tracking displays the function curve of temperature rise and test time. It has the function of Chinese wrong operation software to prompt modification and the parameter prompt function of test date, test time and so on.

3. Equipped with standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, the optional software can be connected with the computer to store data in large capacity and can be long-term storage, data transmission, the upper can modify the lower computer parameters in real time.

4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

5, computer operation, Chinese operation prompt interface, automatic detection, automatic printing reports.

6, open the lid, ignition, detection, printing data automatically completed, the test arm automatically rise and fall.

7, Electronic ignition, forced air cooling, without air source, automatic ignition.

8, without automatic ignition of air source, improve the safety of the test.


Main technical indexes and parameters


Working power supply AC220V±10%, 50Hz
Temperature measurement

Range: room temperature ~ 390℃

Accuracy: ≥104℃±2℃ ≤104℃±1℃;

Resolution: 0.1℃;Precision: 0.1;

Base parameters

Heating speed: in line with GB/T261-2008 standard;

Step A: Heating rate: 5 ~ 6℃/min

Step B: Heating rate: 1.0 ~ 1.5℃/min

Ignition mode: electronic ignition;

Stirrer: Electric stirring device

(1) 90 ~ 120 RPM, suitable for test step A.

⑵ 250±10 RPM, suitable for test step B.

Ambient temperature: (10~40) ℃; Relative humidity: ≤ 80%;
Power consumption of the whole machine: not more than 500W.
Instrument size: overall size: 430 * 380 * 520 (mm), about 15kg


Packing List

S/N Name Quantity Unit Remarks
1 Automatic closing flash point meter 1 set
2 Oil cup 1 piece
3 AC power cord 1 piece
4 Printing paper 1 piece
5 Operating instruction 1 piece
6 packing list 1 copy
7 Certificate of approval 1 copy



Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging and transportation

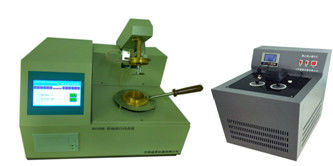

Kerosene, diesel and transformer oil detection instrument SH105B full-automatic closed flash point tester 0

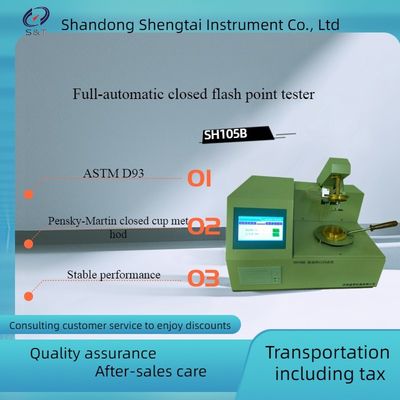

Kerosene, diesel and transformer oil detection instrument SH105B full-automatic closed flash point tester 1Kerosene, diesel and transformer oil detection instrument SH105B full-automatic closed flash point tester 2
