Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine

Certification
China Shandong Shengtai instrument co.,ltd certification
I'm Online Chat Now

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine
Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine

Large Image :  Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine

Product Details:
Place of Origin: China
Brand Name: Shengtai Instrument
Model Number: SH105B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden box
Delivery Time: About 5 working days
Payment Terms: T/T
Supply Ability: 1000 set per mouth

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine

Description
Name: Fully Automatic Closed Flash Point Tester Working Power Supply:: AC220V ± 10%, 50Hz
Temperature Measurement: Range:: 40 ~ 370 ℃ Accuracy:: ≥104 ℃ ± 2 ℃ ≤104 ℃ ± 1 ℃
Model: SH105B Key Words: Closed Mouth Flash Point Tester
High Light:

pour point tester

,

transformer oil ppm testing kit

SH105B improved version of automatic flash point tester

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 0

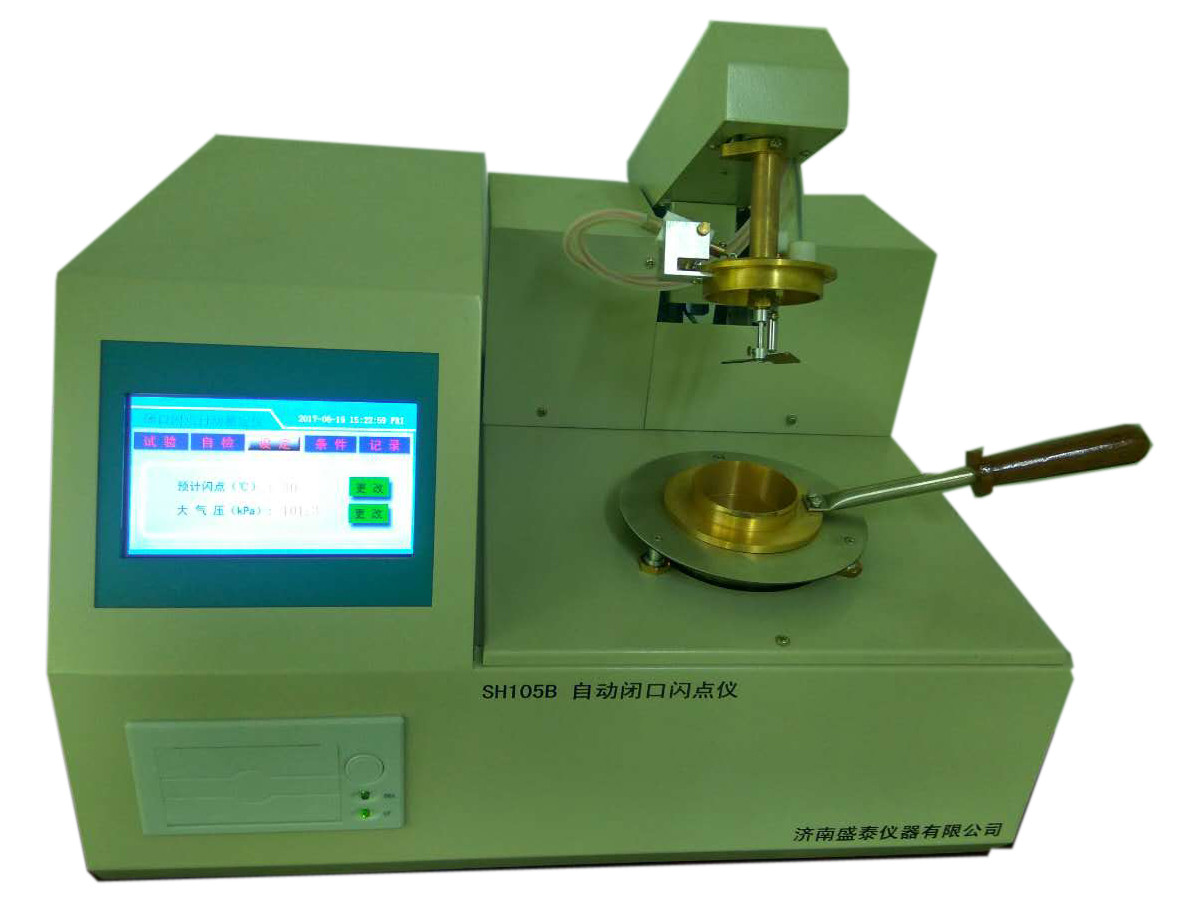

SH105B closed mouth flash point automatic measuring instrument is a product developed by the latest scientific research outside the center. The instrument adopts microcomputer technology and large LCD display. The instrument heats up according to standard methods, automatically raises and lowers, automatically ventilates, automatically ignites, automatically displays, automatically locks the flash point value, and automatically prints the results. After the test is completed, it can be automatically cooled, and the working process is fully automated. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. Widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO—2719, ASTM D93, GB261-2008 standards.


Instrument characteristics

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 1
1. It adopts a large color LCD display, full Chinese man-machine dialogue interface, no logo keyboard, and prompt menu-oriented input for parameters such as predictable temperature, sample label, atmospheric pressure, and test date.
2. Simulated tracking shows the function curve of temperature rise and test time. It has the function of prompting modification of Chinese misoperation software and the prompting function of parameters such as test date and test time.
3. Equipped with a standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, and the optional software can be connected to the computer to store data in a large capacity and can be stored for a long time. When transmitting data, the upper computer can modify the parameters of the lower computer in real time.
4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
5. Computer operation, Chinese operation prompt interface, automatic detection and automatic report printing.
6. The data of opening the lid, igniting, detecting and printing are automatically completed, and the test arm is automatically raised and lowered.
7. Electronic ignition, forced air cooling, no gas source, automatic ignition.
8. Automatic ignition without gas source is required, which improves the safety of the test.


Main technical indicators and parameters


1. Working power supply: AC220V ± 10%, 50Hz;
2. Temperature measurement: Range: The improved version can be connected to the external circulation of refrigeration, the range is 0-400 degrees (external circulation refrigerator is equipped separately)
Accuracy: ≥104 ℃ ± 2 ℃ ≤104 ℃ ± 1 ℃;
Resolution: 0.1 ℃; accuracy: 0.5%;
3. Cardinal parameter: Heating rate: in line with GB / T261-2008 standard;
Ignition mode: electronic ignition, gas flame;
4. Ambient temperature: (10 ~ 40) ℃; relative humidity: ≤80%;
5. Power consumption of the whole machine: no more than 500W.




Temperature measurement Range room temperature~300℃
Power AC(220±10%)V, 50Hz
Heating rate:Procedure A (5~6)℃/min
Heating Procedure B (1~1.6)℃/min
Igniting mode Electric ignition
Total power ≤500W
Overall dimension 520mm×360mm×310mm

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 1

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 3





Packaging and transportation



Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 4

Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 5



Microcomputer Closed Mouth ASTM D93 Flash Point Testing Machine 6
