ST203B Automatic Liquid Coagulation Point Instrument for Detecting the Purity of Drugs Mechanical Automatic Mixing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST203B | Display | Display 7-inch Color Touch Screen |
---|---|---|---|
Cold Tank Temperature Control | -30 ℃ ~ +80℃ | Power Supply | AC220V±10%; 50 Hz. |
Ambient Temperature | ≤30℃ | Relative Humidity | ≤85%. |
Overall Power Consumption | No More Than 2000W | Temperature Control Accuracy | ±0.1℃ |
High Light | lab test equipment,laboratory testing equipment |

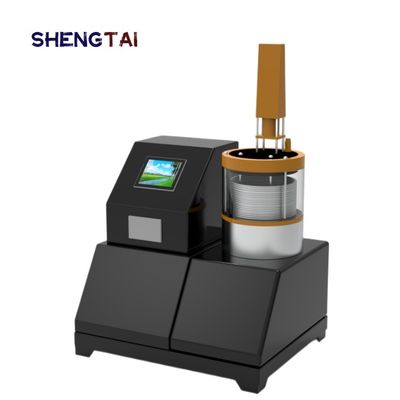

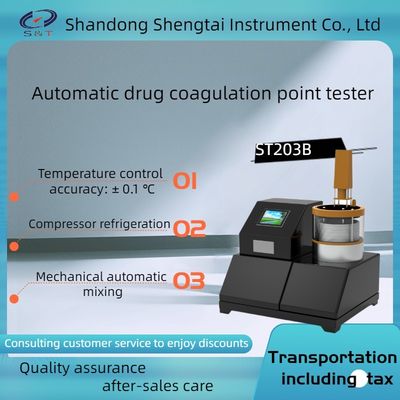

ST203B automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature.
Suitable for determination of the congealing temperature of medicine.
The maximum temperature at which a drug stays unchanged in a short period of time when it condenses from a liquid to a solid is determined.
Some drugs have certain condensation point, purity change, condensation point also changed.
Polyethylene glycol congealing temperature tester/Freezing point tester
glacial acetic acid congealing temperature tester/Freezing point tester
Phenol congealing temperature tester/Freezing point tester
Chlorophenol congealing temperature tester/Freezing point tester
stearic acid congealing temperature tester/Freezing point tester
magnesium stearate congealing temperature tester/Freezing point tester
dibutyl hydroxytoluene congealing temperature tester/Freezing point tester
The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.
Technical parameters:
Display | 7-inch color touch screen |
Output | exported through the U disk |
Working cold bath | double vacuum glass bath. |
Standard | rule 0613 of The Chinese Pharmacopoeia in 2020 and USP41 651 congealing temperature. |
Cold tank temperature control | -30 ℃ ~ +80℃ |
Power supply | AC220V±10%; 50 hz. |
Ambient temperature | ≤30℃. |
Relative humidity | ≤85%. |
Sample agitation |
synchronous deceleration motor, 60 times/min.
|
Overall power consumption | no more than 2000W. |
Temperature control accuracy | ±0.1℃ |
Bath liquid stirring | Automatic stirring by stirring motor, 6W power, 1200r/min. |
Refrigeration system | new type refrigeration compressor |
Typing | Chinese or English character printing |
Printer | Micro needle printer |
Curve display | Display the trend chart of temperature time curve |
Instrument size: 680 * 450 * 580mm Weight: 38kg |
- Using embedded system design, the whole test process automatic detection, automatic printing
- The test results can be stored ;You can view the historical data;
- The result is printed on the instrument and stirred automatically by the machine.
- Account management: According to the password to set up the account management layer, can set up the total account and sub-account.
- Account management: audit tracking function and account hierarchical management, level 3 account management (optional).
- Data Management: the LIMS system is available (optional)
- Input extension: scan code input sample information (optional)
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Gel stopper | 2 | piece | Conforming to pharmacopoeia |
3 | Freezing point test tube | 2 | piece | |
4 | sensor | 2 | piece | |
5 | power cord | 1 | piece | |
6 | Printing paper | 2 | volumes | Needle printing paper |
7 | Certificate warranty card | 1 | copy | |
8 | instructions | 1 | copy |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
