Automatic CANNON-Fenske Routine Viscometers Kinematic Viscometer for dark color petreum oil crude oil ASTM D445

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH112H
Minimum Order Quantity 1
Price 78000
Packaging Details Wooden box
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 1000 set per mouth

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH112H Ambient Temperature (0-40) ℃
Maximum Power 2000W. Working Power Supply AC220V ± 10%, 50Hz.
Measurement Accuracy ± 0.1s Temperature Control Accuracy ± 0.1 ℃.
Temperature Range Room Temperature - 150 ℃ Number Of Measurements 2 Sets
High Light

diesel quality testing equipment

,

sulfur content tester

Leave a Message
Product Description

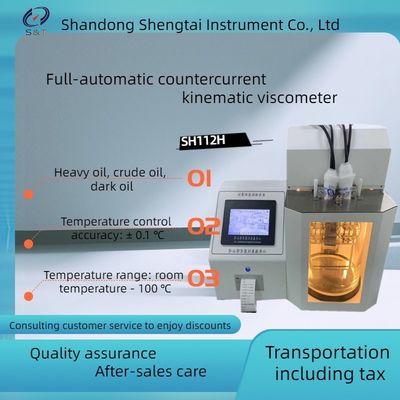

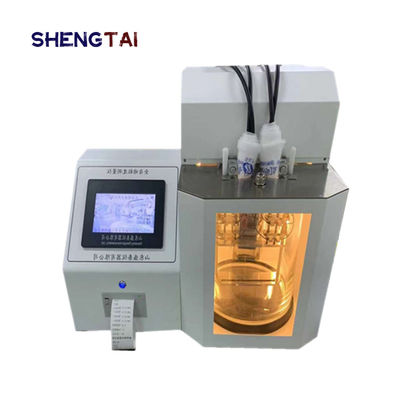

SH112H automatic CANNON-Fenske Routine Viscometers is designed and manufactured in accordance with the requirements stipulated in the PRC standard ASTM D 445 and. ISO 3104.Method of Kinematic viscosity of Dark Petroleum Products and SY2409 method of kinematic viscosity of dark petroleum products. It is suitable for the determination of dark petroleum products and heavy oils. Fully automatic ,constant temperature, viscosity testing, cleaning, and drying viscometer, no random operation is required. After the operator sets out, the operator can leave the site and the instrument can automatically complete all tasks.



Main technical features
1. Large size color touch screen display.
2. Adopt 32-bit microprocessor as the control core.
3. The main parts and electronic components of the instrument are imported devices with good stability.
4. The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying, automatic U disk output and other functions.
5. Temperature control is fast and stable, and the heating rate is more than 5 ℃ / min.
6. It is equipped with LED soft light lamp, which can make up light evenly and facilitate observation.


7. It has the function of viscometer parameter storage.
★ 9. It has date password setting function.
★ 11. With TCP network transmission function
★ 12. It can be uploaded and connected to limis system
★ 13. It can expand the memory of microcomputer to 16G


 Main technical indexes and parameters
1. Working viscometer: cannon finsk capillary, in line with the requirements of GB / t11137.
2. Number of measurements: 2 sets.
3. Temperature range: room temperature - 150 ℃
4. Temperature control accuracy: ± 0.1 ℃.
5. Measurement accuracy: ± 0.1s
6. Maximum timing time: 999.9 seconds.
7. Working power supply: AC220V ± 10%, 50Hz.
8. Maximum power: 2000W.
9. Ambient temperature: (0-40) ℃.



Main Technical indicators

Range room temperature ~ 120℃;Temperature control accuracy: 0.1℃
Repeatability ≤0.01S Reproducibility: ≤0.02S
Resolution 0.01℃ Accuracy: 0.5%
Basic parameters Heating rate: in accordance with ASTM D445 standard;
Detection method photoelectric detection
Timing range 0~999.99s
Timing accuracy 0.01s
Overall power consumption 1600W
Dimensions 650×400×540
Instrument weight 50kg
Power supply AC 220V±10%, 50Hz
Storage Experimental results can be stored in 199 groups of historical data for easy query
Result output At the same time can be equipped with U disk output function, output to the PC side for long-term storage
Output format The output format of the usb flash disk is CSV or Excel.
Data extension laser printer interface, link to HP1108 laser printer (optional).
Data protection With date password setting function.
Standard printing standard printing with automatic measurement and thermal sensitivity of micro printer
Remote upgrade With TCP network transmission function, software remote upgrade can be carried out later
Data management Can connect to limIS system
Data memory Microcomputer instrument memory can be expanded to 16 gigabytes.
