pensky martens closed cup astm d93 flash point Lab Test Instrument closed cup flash point tester for diesel oil

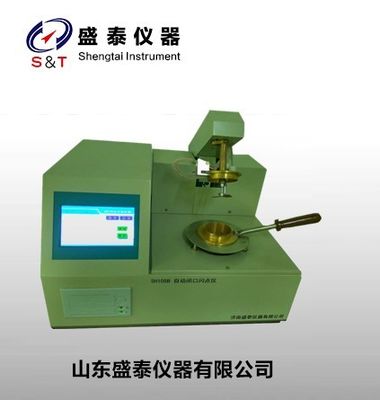

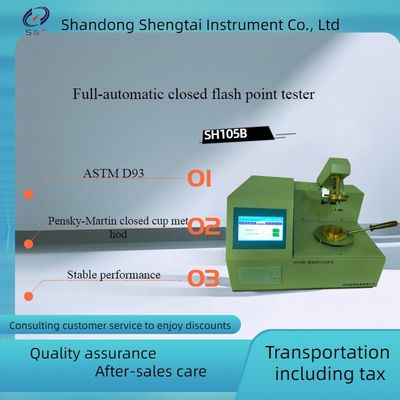

Automatic closed flash point instrument

SH105B closed mouth flash point automatic measuring instrument is a product developed by the latest scientific research outside the center. The instrument adopts microcomputer technology and large LCD display. The instrument heats up according to standard methods, automatically raises and lowers, automatically ventilates, automatically ignites, automatically displays, automatically locks the flash point value, and automatically prints the results. After the test is completed, it can be automatically cooled, and the working process is fully automated. It has the advantages of accurate measurement, good repeatability, stable performance and simple operation. Widely used in power, petroleum, chemical, commodity inspection, scientific research and other departments. Comply with ISO-2719, GB261-2008 standards.

Instrument characteristics

1. It adopts a large color LCD display, full Chinese man-machine dialogue interface, no logo keyboard, and prompt menu-oriented input for parameters such as predictable temperature, sample label, atmospheric pressure, and test date.

2. Simulated tracking shows the function curve of temperature rise and test time. It has the function of prompting modification of Chinese misoperation software and the prompting function of parameters such as test date and test time.

3. Equipped with a standard RS-323,485 computer interface, the lower computer stores 120 sets of historical data, and the optional software can be connected to the computer to store data in a large capacity and can be stored for a long time. When transmitting data, the upper computer can modify the parameters of the lower computer in real time.

4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.

5. Computer operation, Chinese operation prompt interface, automatic detection and automatic report printing.

6. The data of opening the lid, igniting, detecting and printing are automatically completed, and the test arm is automatically raised and lowered.

7. Electronic ignition, forced air cooling, no gas source, automatic ignition.

8. Automatic ignition without gas source is required, which improves the safety of the test.

Main technical indicators and parameters

1. Working power supply: AC220V ± 10%, 50Hz;

2. Temperature measurement: Range: room temperature ~ 370 ℃

Accuracy: ≥104 ℃ ± 2 ℃ ≤104 ℃ ± 1 ℃;

Resolution: 0.1 ℃; accuracy: 0.5%;

3. Cardinal parameter: Heating rate: in line with GB / T261-2008 standard;

Ignition mode: electronic ignition, gas flame;

4. Ambient temperature: (10 ～ 40) ℃; relative humidity: ≤80%;

5. Power consumption of the whole machine: no more than 500W.

Technical indicators

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China
