ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil mechanical impurity meter

Certification
China Shandong Shengtai instrument co.,ltd certification
I'm Online Chat Now

ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil mechanical impurity meter

ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter
ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter

Large Image :  ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil mechanical impurity meter

Product Details:
Place of Origin: CHINA
Brand Name: Shengtai instrument
Model Number: SH101C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden box
Delivery Time: About 5 working days
Payment Terms: T/T
Supply Ability: 1000 set per mouth

ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil mechanical impurity meter

Description
Temp Range: Room Temperature-100℃ Resolution: 0.1 °C
Printer: 58mm Wide Micro Thermal Printer Weight: About 9kg
Power: 400W Standard: ASTM D473
High Light:

soil hardness tester

,

soil lab instruments

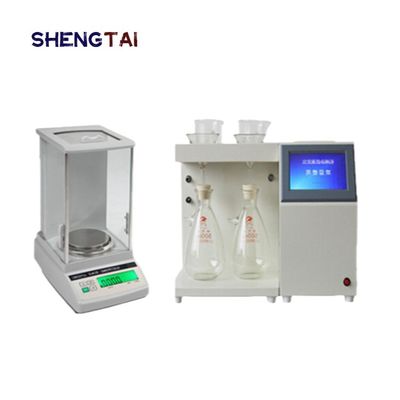

   SH101B/Cmechanical impurity meter is designed and manufactured in accordance with ASTM D473 and GB/T 511-2010 Petroleum and Petroleum Products and Additives Mechanical Impurities Determination Method, suitable to measure the mechanical impurity content of various hydrocarbons, heavy oils, lubricating oils and additives. It is widely used in electric power, petroleum, chemical, commodity inspection and scientific research departments.
   SH101B automatic mechanical impurity content tester (no balance) is designed according to the requirements of the national standard GB / T511 "Petroleum Products and Additives Mechanical impurity determination method (weight method)", is suitable for the determination of the content of mechanical impurities of light, heavy oil, lubricating oil and additives in petroleum products, after weighing the weight from the touch screen, the instrument automatically, automatically printing.

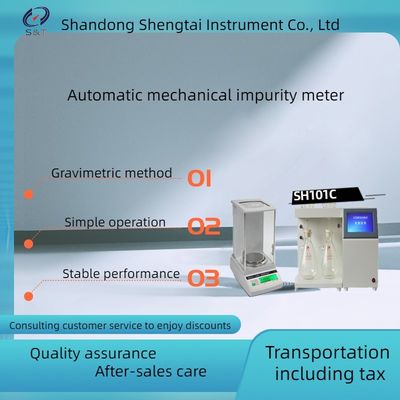

   SH101C automatic mechanical impurity content instrument (with balance) is designed according to the national standard GB / T511 Petroleum Products and Additives Mechanical impurity measurement method (weight method) requirements, suitable for the determination of all kinds of light, heavy oil, lubricating oil and additives in petroleum products,

ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of Lub Oils
ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter 0

Performance characteristics:
1. Built-in oil-free maintenance-free vacuum pump, double solvent oil preheating system, one instrument host to complete all functions, without external vacuum pump and water bath.
2. 7-inch TFT true color touch screen, 800×480 resolution, human-computer interaction is simple and easy to use.
3. Adopt 32-bit microprocessor as the main control core, a new generation of intelligent operating system.
4. Built-in oil-free maintenance-free vacuum pump, programme-controlled dual-channel pumping and filtration.
5. 4 PID temperature control, precise control of solvent oil preheating temperature and heat preservation funnel temperature.
6. Built-in formula, automatic calculation of test results, and can save and print data.
7. With automatic data query function, it is convenient to find test records and statistical data, and the results can be printed at any time.



Display7-inch LCD display with resolution of 800×480
Temperature control rangeRoom temperature-100℃
Temperature control accuracy±1℃
Resolution0.1 °C
Printer58mm wide micro thermal printer
Power400W
Dimensions510 × 330× 320mm (foot pad not included)
WeightAbout 16kg
Ambient temperature5 ° C - 40 ° C
Relative humidity<80%
Power supplyAC220V±10V 50Hz(can be customized)



ASTM D473 /GB/T 511 Additives Mechanical Impurities Tester of crude oil  mechanical impurity meter 1
Technical parameters
Display: 7-inch liquid crystal display (LCD)
Resolution 800 x 480
Temperature: 4-channel PID temperature control
Temperature control range: room temperature ~ 100℃
Temperature control accuracy: ±1℃
Resolution: 0.1℃
Printer: 58mm wide width miniature thermal printer
Storage: 199 sets of historical data can be stored for easy query;
Result output: at the same time can be equipped with U disk output function, output to the PC for long-term storage
★ Output format: the output format of the U disk is CSV or EXCEL.
★ Standard printing: standard micro printer automatic measurement automatic thermal printing
★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade
Power: 800 w
Dimensions: 510×330×320 (not including foot pads)
Weight:16kg

OUR service
We advocate a technical marketing model, is a professional service, a pre-sale service, in-sales service and after-sales service throughout the body of trusted professional services.
Pre-sales service to provide customers with pre-sales technical advice, design of the test plan, assist users to complete the test, assist users in making inquiries for special auxiliary equipment for components.
After the contract is signed, we still negotiate and communicate with the user, confirm the specific test items and specific test requirements of the user, and communicate with the user's user department or user further. To ensure that the equipment provided to the user can fully meet the overall requirements of the user.
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.


Packaging & Delivery

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Port Any port of China

Lead Time :

Quantity(Sets)1 - 12 - 56 - 10>10
Est. Time(days)62030To be negotiated
