Automatic hydraulic acid value meter/Tester the standard ASTM D974 Oil Acid Value Analyzer And Acidity Measuring

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH108A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range 0.001 ~ 3.000mgKOH/g Standard ASTM D974
Key Words Automatic Hydraulic Acid Value Meter/Tester Resolution 0.001 Mg KOH/g
Power AC 220 V ±10% Warranty 1 Year
High Light

soil hardness tester

,

soil lab instruments

Leave a Message
Product Description

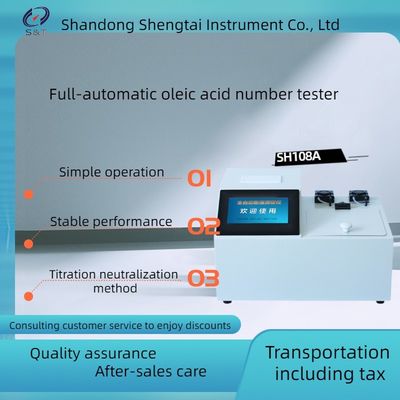

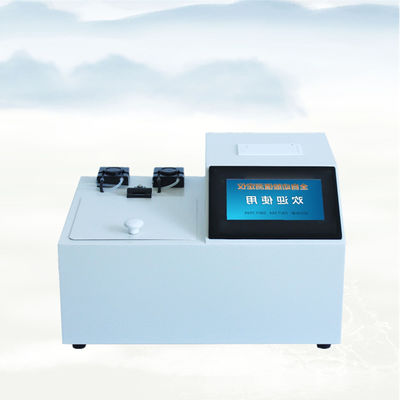

    SH108A automatic hydraulic acid value meter/Tester  meets the requirements of the People's Republic of China standard GB/T 264 "Determination of the acid value of petroleum products" and GB7599, GB/T4945and ASTM D974, GB7299.

The instrument adopts color LCD large screen display, Chinese menu, no marker button.

Microcomputer automatic measurement, automatic printing, the test process to achieve computer automation, intuitive and simple operation.

Using magnetic stirring, no noise, safe and reliable, compact size.

It can meet the needs of oil refineries, power plants and scientific research units, and is one of the essential instruments for oil analysis and quality inspection.



First, performance characteristics

1, using the principle of titration and neutralization method, under the control of the microcomputer automatically complete liquid injection, titration, mixing, determination of neutralization and titration end point, LCD screen display the measurement results, and automatically print the measurement results.

The measurement process takes seven minutes.

2. Special reagent bottles are used to hold the extraction liquid and neutralizing liquid, and the reagent is isolated from the air during use to avoid the influence of volatilization and carbon dioxide in the atmosphere.

At the same time also play a role in protecting the operator.

3, automatic acid value tester can choose a test of 1 ~ 3 oil samples.



Hydraulic oil product parameters



Range 0.001~ 3.000 mgKOH/g
Standard ASTMD 974 GB/T4945
Resolution 0.001 mg KOH/g
Accuracy ± 0.005mgKOH/g
Repeatability 0.002 mg KOH/g
Power voltage AC 220 V ±10%
Power frequency 50 Hz ±2%
Working temperature 0~45℃
Relatively humidity <85 % RH
Width * height * depth 420×190×340mm
Weight 9 kg



II. Technical indicators

⑴ Ambient temperature: 10 ℃ ~ +30℃

⑵ Relative humidity: < 80%

⑶ Power supply: AC220V± 10% 50Hz±1Hz

(4) Range: 0.001 ~ 3.000mgKOH/g

⑸, accuracy: ±0.005mgKOH/g

⑹ Differential power: 0.001mgKOH/g

⑺ and reconstructability: 0.003mgKOH/g

⑻, power rate: 300 W

Phase size: 420 x 250 x 280 mm

We, weight: 10 Kg

Required consumables: the instrument itself has a set of reagents, after the use of their own purchase or self-matching.
