Density tester for petroleum product GB/T1884,ISO 3675,ASTM D1298,DIN 51757,JIS K2249,IP 160

Place of Origin CHINA
Brand Name Shengtai instrument
Certification ISO9001
Model Number SH102
Minimum Order Quantity 1
Packaging Details wooden case
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard GB/T1884,ISO 3675,ASTM D1298,DIN 51757,JIS K2249,IP 160 Name Density Tester For Petroleum Product
Capacity Of Cylinder 500ml Temperature Control Range 0℃ ~ 100℃.
Temperature Control Accuracy ±0.1℃. Density Tubes Specification 600-1010 Kg/m
Dividing Value 0.5
High Light

soil hardness tester

,

soil lab instruments

Leave a Message
Product Description

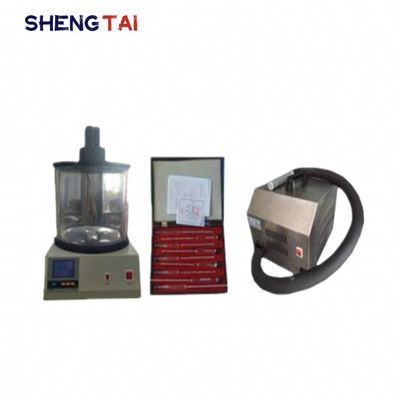

    SH102 Density tester for petroleum product is based on the People's Republic of China standard GB/T 1884 "petroleum and liquid petroleum product density determination method (densimeter method)" the requirements of the design and manufacture, is the liquid petroleum product density tester developed by our company, suitable for the determination of crude oil and liquid petroleum product density.
GB/T1884,ISO 3675,ASTM D1298,DIN 51757,JIS K2249,IP 160

I. Main technical features
1. The instrument adopts the form of all-in-one machine, the control box adopts the humanized design, the control switch adopts the form of light touch key, the design is novel, the structure is compact, the operation is comfortable, beautiful and generous.
2, Digital tube display temperature controller, rapid temperature control, fast response, small overshoot, temperature control accuracy up to ±0.2℃.
3, the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.

Power supply AC(220±10%)V,50Hz
Capacity of cylinder 500ml
Heating power 700W,1000W
Temperature controller

(1) Range: Ambient to 100℃
(2) Accuracy: ±0.2℃
(3) Sensor: Pt100

Thermometer Mercury-in-glass thermometer. Scale division is 0.2℃


II. Main technical parameters and indicators
1, working power supply: AC 220V± 10%, 50Hz.
2, the bath volume: Ф 250 x 300 mm.
3. Tube capacity: 500ml.
4, heating power: 2100W
5. Temperature controller:
⑴ Temperature control range: 0℃ ~ 100℃.
(with refrigeration)
⑵ Temperature control accuracy: ±0.2℃.
⑶ Temperature sensor: industrial platinum resistance, and its grading number is PT100.
6, thermometer: the indexing value of 0.2℃ immersion mercury thermometer.
10 group density tubes:
Specification: 600-1010 kg/m after
Dividing value: 0.5
Length: 300 mm


Packing List

S/N Name Quantity Unit Note
1 Host 1 set
2 Water bath crock 1 piece
3 Bath cover assembly 1 set 2 measuring cylinders can be placed
4 Cryogenic refrigerating plant 1 set Compressor refrigeration
5 Control cable 1 piece
6 fuse tube 1 piece
7 Measuring cylinder 500 ml 2 piece
8 Operating instruction 1 copy
9 packing list 1 copy
10 Certificate of conformity warranty card 1 copy








Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
