Product Details
Name Octane Cetane Number Tester Measurement Items Motor Gasoline And Diesel
Standard ASTM D2699-86, ASTM D2700-86 Model SH131
High Light

lubricating oil testing equipment

,

oil moisture meter

Leave a Message
Product Description

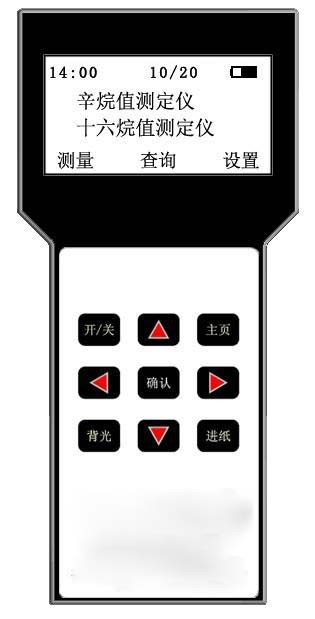

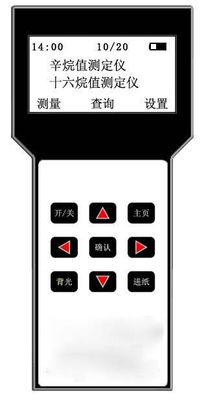

SH131 octane cetane number tester



SH131 octane cetane number tester is adopt international advanced measuring principle, according to the diversity of domestic oil product design and development, fill the blank of the variety of product testing, with precise and can quickly detect the octane value of the product and cetane number, both Chinese and English two languages, the large capacity data storage and can print directly measured values, page design humanized operation is simple, adopts imported case and chips, sensors use alloy metal seal design, super long standby, a charging circuit suitable for on-site, field and laboratory work.
The main features
1. It can simultaneously detect octane number of gasoline and cetane number of diesel, which can be used for one machine.
2. Through long-term data acquisition instrument, database, complete with new technology to develop a variety of detection mode, detectable methanol gasoline, ethanol gasoline, naphtha, solvent oil, straight run oil, light oil, aromatic hydrocarbons, MTBE, manganese base, methanol diesel, catalytic diesel oil, biological diesel oil, emulsified diesel oil and other oil products, fill the some product octane number and cetane number blank.
3. The introduction of the international dielectric constant measurement principle, according to the Chinese market demand design and development, is a fully in line with the domestic market of the instrument, and includes the advantages of the original domestic testing instrument.
4. Quick detection, accurate and simple operation, large Chinese screen display, EL backlight support, easy to use in dim light environment, host panel Chinese menu operation.
5. The instrument shell imported from Germany is strong and durable, and compact and easy to carry. The chip and core components are imported from Germany, which can increase the sensitivity and service life of the instrument, and the circuit board can be guaranteed for three years.
Sensor alloy metal completely sealed manufacturing, outer packing box with high strength, high impact resistance, absolutely sealed waterproof, moistureproof, dustproof, with square sponge inside.
6. The upper and lower limits of the mode can be set in advance to automatically display beyond the scope, which is convenient for users to detect their needs.
7. It has the energy-saving function of automatic shutdown, low power consumption design, 4 rechargeable batteries, which can be recharged in a cycle, making the battery more reliable.

Measuring principle
The principle of octane number tester is to measure the insulation permeability of octane number of gasoline and cetane number of diesel and the charge characteristics of electromagnetic induction.
The results are measured by measuring the dielectric properties of the oil and comparing them with a known data model that exists in memory.
The sensor is very accurate and can measure small changes in dielectric parameters, which can be used to detect octane number and cetane number and other parameters of petroleum products.

Technical parameters
● measurement items: motor gasoline and diesel
● octane number measured in accordance with: ASTM d2699-86, ASTM d2700-86.
The cetane number of diesel fuel was measured in accordance with: ASTM d4737-03, ASTM D613, EN ISO 5165.
Operating range: temperature -10℃~+40℃, relative humidity 30%~81%R.H., atmospheric pressure 64~106kPa
