SY0336 Lubrication grease mechanical impurity degree meter microscope method

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SY0336
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SY0336 Eyepiece Micrometer Scale 0.01mm
Magnification > 100 Times Coarse Fine Tuning Focus Range 30mm
Observation Head Hinged 30 Tilt, 360° Rotation
High Light

laboratory testing equipment


oil analysis lab equipment

Leave a Message
Product Description

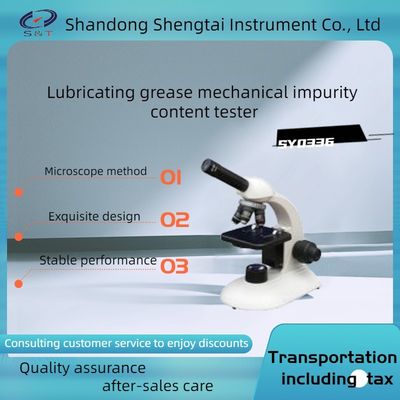

SY0336 Lubrication grease mechanical impurity degree meter is designed and manufactured according to the national industry standard SH/T 0336-1994 "grease impurity content determination method (microscope method)". It is an environmental protection scientific detection method for mechanical impurity content detection of lubricating grease.

SY0336 Lubrication grease mechanical impurity degree meter microscope method 0

Technical indicators:

Eyepiece Category



Eyepiece micrometer scale 0.01mm
Magnification > 100 times
Observation head hinged 30 tilt, 360° rotation
Coarse fine tuning focus range 30mm
Micro lattice value 2um coarse micro coaxial focus, coarse tension adjustable, with locking and limit
Standard blood cell count board standard
Lighting 220V Kohler lighting, brightness adjustable, halogen tungsten bulb 6V20W
Concentrator 1.25nA Abbe condenser, variable light bar with color filter (up and down)


1. One main machine

2, the eyepiece

3. Eyepiece tube

4. Objective lens converter

5. Objectives

6. Blood cell counting board

SY0336 Lubrication grease mechanical impurity degree meter microscope method 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

SY0336 Lubrication grease mechanical impurity degree meter microscope method 2
