Crude Fiber Tester Feed Testing Instrument GB/T5515 And GB/T6434 Standard

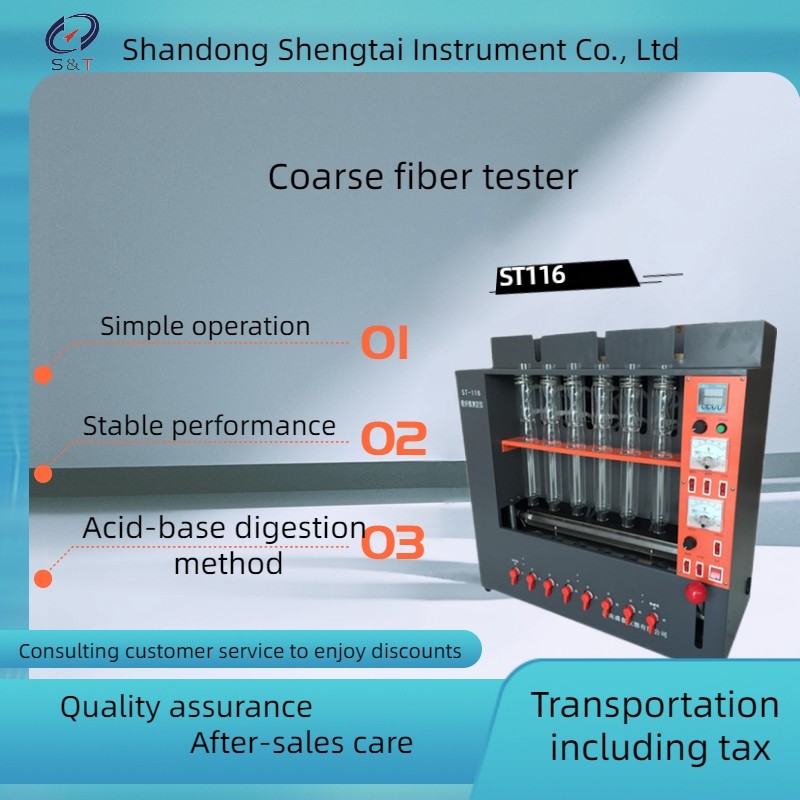

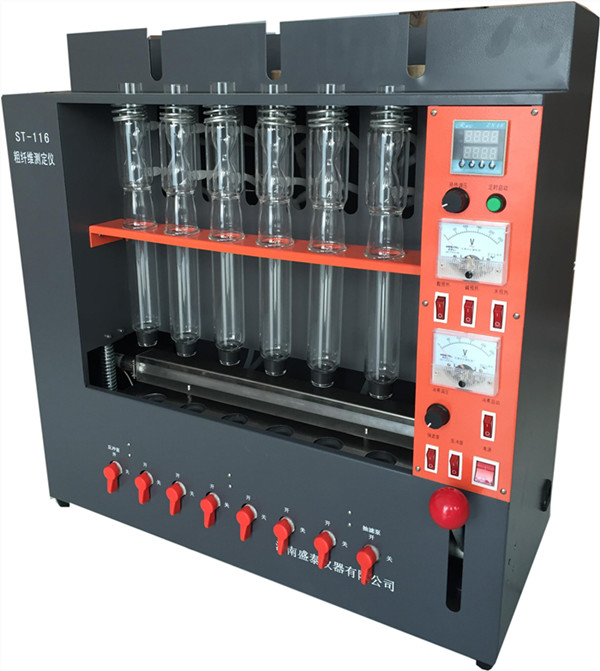

ST116 crude fiber tester is an instrument to obtain the crude fiber content of the sample by means of the acid and alkali boiling method commonly used at present.
Using acid and alkali with accurate concentration, the sample is boiled under specific conditions, and then ethanol is used to remove the soluble substances, after high temperature burning deducts the amount of minerals, the content is called crude fiber.
It is not an exact chemical entity, but only a general composition measured under generally accepted and mandatory conditions, consisting mainly of cellulose, with a small amount of hemicellulose and lignin.
It is applicable to the determination of crude fiber content of various grains and feeds. The test results are in accordance with GB/T5515 and GB/T6434.
Technical indicators:
1. Objects of determination: various feeds, grains, grains, foodstuffs and other agricultural and sideline products that need to be determined in crude fiber content;
2. Number of test samples: 6 / time;
3. Repeatability error:
Crude fiber content is below 10%, absolute error ≤0.4;
Crude fiber content is more than 10%, relative error ≤4%;
4. Determination time: about 90 minutes (including 30 minutes for acid and 30 minutes for alkali, and about 30 minutes for extraction and washing) is needed on the instrument;
5. Power supply: AC220V/50HZ;
6. Power: 3.3KVA;
7. Volume: 540×450×670mm3;
8. Weight: 28kg.

Packing list

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :
