|Name:||Automatic Opening Flash Point Measuring Instrument||Working Power Supply:||AC220V ± 10%, 50Hz|
|Temperature Measurement: Range:||Room Temperature ~ 400 ℃;||Key Words:||Flash And Fire Points By Cleveland Open Cup Tester|
|Standard:||ASTM D92||Ignition Mode:||Electronic Ignition|
|Weight:||20kg||Heating Rate:||Accord With ASTM D92 Standard|
crystal point analyzer,
sulfur content tester

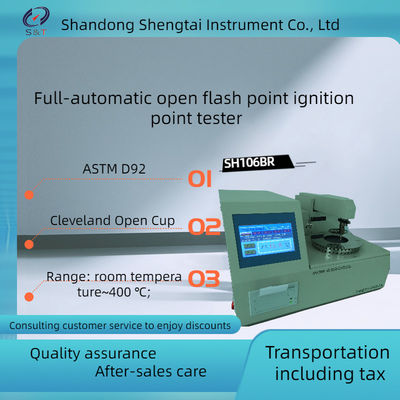

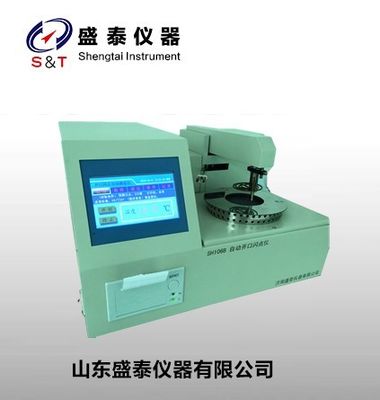

Automatic opening flash point measuring instrument Flash and Fire Points by Cleveland Open Cup Tester ASTM D92
The SH106BR automatic opening flash point tester is based on the People's Republic of China Standard GB / T 3536 "Determination of Flash Point and Fire Point of Petroleum Products (Cleveland Open Cup Method)" and GB / T267-1988 Determination of Flash Point and Fire Point of Petroleum Products Designed and manufactured according to the requirements stipulated by the (open cup method).
1. The instrument uses a large color LCD display, full Chinese man-machine dialogue interface, no logo keyboard, and has a prompt menu and guided input function for parameters such as predictable temperature, sample label, atmospheric pressure and test date.
2. Simulated tracking shows the function curve of temperature rise and test time. It has the function of prompting and modifying the Chinese wrong operation software. It is equipped with the function of prompting parameters such as test date and test time.
3. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
4. Differential detection, automatic correction of system deviation.
5. The sweeping, testing and printing data are automatically completed, and the test arm is automatically raised and lowered.
6. Electronic ignition, forced air cooling
7. Automatic ignition without gas source is required, which improves the safety of the test
Main technical indicators and parameters
1. Working power supply: AC220V ± 10%, 50Hz
2. Temperature measurement: Range: room temperature ~ 400 ℃;
Repeatability: Flash point ≤150 ℃ error ± 2 ℃ Flash point ≥150 ℃ error ± 3 ℃
Resolution: 0.1 ℃; accuracy: 0.5%;
3. Heating rate: accord with ASTM D92 standard;
4. Ignition method: Electronic ignition;
5. Ambient temperature: (10 ~ 40) ℃;
6. Relative humidity: ≤80%;
|Working power supply||AC220V ± 10%, 50Hz|
|Temperature measurement: Range||room temperature ~ 400 ℃|
|Heating rate||accord with ASTM D92 standard|
|Ignition method||Electronic ignition|
|Ambient temperature||(10 ~ 40) ℃|
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
|Quantity(Sets)||1 - 1||2 - 5||6 - 10||>10|
|Est. Time(days)||6||20||30||To be negotiated|
