Double layer cylinder body fully automatic Pinnacle kinematic viscometer automatically completes all tasks
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication Method | GB / T265 | Temperature Control Range | Room Temperature + 5 ℃ ~ 100.0 ℃ |
---|---|---|---|
Timing Range | 0.0s ~ 999.9s | Power Supply | 50Hz, AC220V±10%, AC220V |
Measurement Range | 0.6-1700mm2/s | ||
Highlight | transformer oil testing machine,transformer oil ppm testing kit |

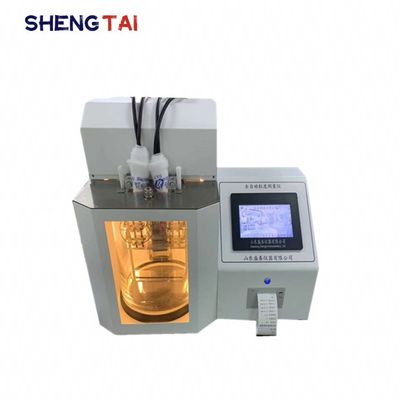

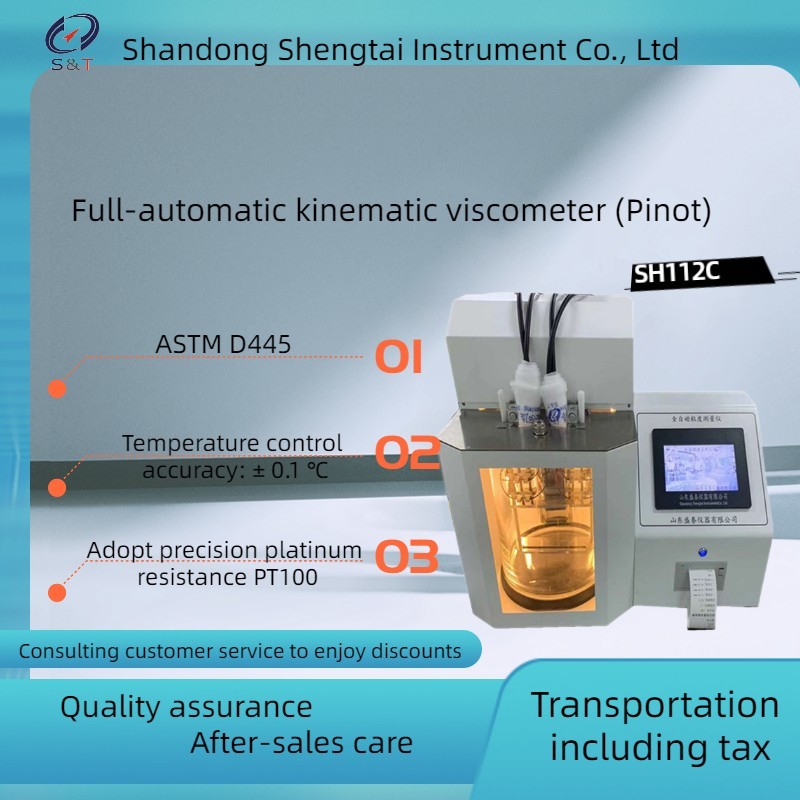

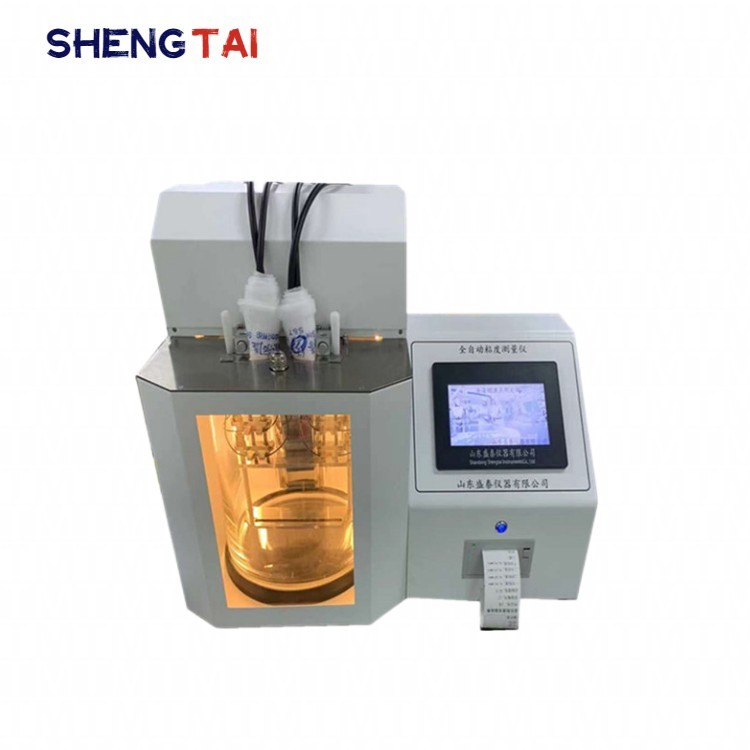

SH112C automatic kinematic viscometer is designed and manufactured in strict accordance with GB / T265 and astmd445 standards. It can measure the kinematic viscosity of transparent and opaque liquids to the same accuracy, including crude oil, light fuel oil, lubricating oil, additives and silicone oil. It is also suitable for measuring the kinematic viscosity of samples with high wax content or samples containing insoluble components at room temperature. Fully automatic sample injection, constant temperature, viscosity test, cleaning and drying viscometer do not need random operation. After setting out, the operator can leave the site, and the instrument can complete all tasks automatically.
The working principle is to put the sample into the selected capillary viscometer, the capillary immersed in a constant temperature bath. The sample is inhaled to the calibration position. When the sample flows to the upper calibration position, the instrument starts to record the time. When the sample flows to the calibration position, the recording time stops. The instrument will automatically calculate the kinematic viscosity of the sample.
The main features
1. Large size color touch screen, resolution up to 1024*600.
2. Adopt 32-bit microprocessor as the control core, independently developed graphical man-machine interface for operation.
3. The main parts and electronic components of the instrument are imported devices with good stability.
4. The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.
5. Double cylinder body, fast and stable temperature control, heating rate >
5 ℃ / min.
6. Equipped with LED soft light, uniform filling light, easy to observe.
7. It has the function of storing viscometer parameters.
8. Standard micro printer for automatic measurement and thermal printing
9. Application method: GB/T265 ASTMD445
10. Temperature control range: room temperature+5 ℃~100.0 ℃ Temperature control accuracy: ± 0.1 ℃
11. Measurement range: 0.6-1700mm2/s
12. Timing range: 0.0s~999.9s
13. Sample quantity: 2 sets of capillary viscometers (indicate viscosity range when ordering)
14. Temperature sensor: Pt100 platinum resistor
15. Storage method: The experimental results can store 199 sets of historical data for easy query
16. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage
17. Output Format: The output format of the result USB drive is CSV or Excel
18. Viscometer fixture: Made of all 304 stainless steel material and resistant to high and low temperature graphite sliding bearing device
19. Data memory: The memory of microcomputer instruments can be expanded to 16GB
20. Standard printing: Standard micro printer for automatic measurement and thermal printing
★ 22. Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out in the later stage
★ 23. Data management: can be connected to the LIMS system (optional)
Size : 450 * 380 * 550mm weight: 38kg
Temperature control range | room temperature+5 ℃~100.0 ℃ |
Temperature control accuracy |
± 0.1 ℃
|
Measurement range | 0.6-1700mm2/s |
Timing range | 0.0s~999.9s |
Temperature sensor | Pt100 platinum resistor |
Size : 450 * 380 * 550mm weight: 38kg
|
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Full-automatic viscosity tester | 1 | set | |
2 | Special viscosity tube | 4 | piece | |
3 |
Sample injector
|
1 | piece | |
4 | Printing paper | 2 | piece | |
5 | Electric aspirator | 1 | set | |
6 | certificate | 1 | copy | |
7 | instructions | 1 | copy | |
8 | Special tools | 1 | piece |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
