Transformer Oil Testing Equipment SH112 Automatic Calculation of Four Hole Test for Kinematic Viscometer

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH112
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 5-8work days
Payment Terms T/T
Supply Ability 100 set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH112 Power Supply 50Hz, AC220V±10%, AC220V
Ambient Temperature 5 ℃ -40 ℃ Dimensions 190mm × 380mm × 280mm
Weight 15Kg Heating Power 1800W
Temperature Control Accuracy ± 0.1 ℃ Temperature Control Point Any Setting From Room Temperature To 100 ℃
High Light

pour point tester


transformer oil ppm testing kit

Leave a Message
Product Description

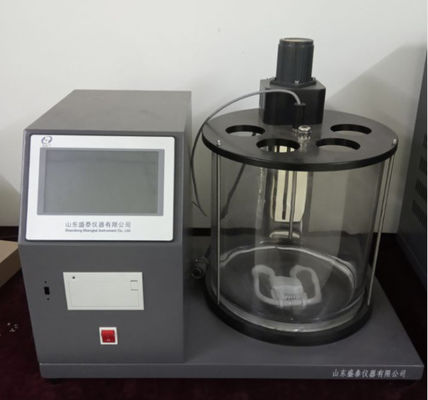

SH112 Petroleum Kinematic Viscometer This instrument meets the requirements of the national standard GB / T265 "Determination of Kinetic Viscosity and Dynamic Viscosity of Petroleum Products". Four viscosities can be placed and tested at the same time, and other experiments can also be carried out as a high-viscosity constant temperature water bath. Adopt blue liquid crystal large screen Chinese display, no logo button, temperature measurement adopts precision platinum resistance PT100, 10 ~ 100 ℃ arbitrarily set, the main and auxiliary heaters are automatically switched, and the capillary constant can be stored after power off. The viscosity value is calculated automatically. This product also complies with ASTM D445.

The main features are as follows:
1. The constant temperature bath is a round glass cylinder, the temperature distribution in the bath is even, and the temperature control effect is good (it can be made into a double cylinder).
2. This instrument uses a precision digital temperature controller to control the temperature in the bathtub. The actuator uses a solid state relay SSR, which has the characteristics of accurate temperature control, no contact, no noise, no sparks, fast action, long life and so on.
3. The capillary gauge card adopts three-point vertical type, which is flexible and convenient to operate and reliable in clamping.


Technical Parameters:
Temperature control point: any setting from room temperature to 100 ℃;
Temperature control accuracy: ± 0.1 ℃;
Display mode: digital display;
Stopwatch timing: 0.05 seconds-99 minutes 99.99 seconds;
Heating power: 1800W;
Power supply: AC 220V ± 10%, 50HZ ± 5%;
Ambient temperature: 5 ℃ -40 ℃;
Environmental humidity: <85%;
Dimensions: 190mm × 380mm × 280mm;
Weight: 15Kg.

Requires customer-supplied consumables: water or glycerin. Strictly in accordance with national standards, the following reagents are required to clean the viscosity tube before the experiment: solvent oil or petroleum ether.

Packing list


S/N Name Quantity Unit Remarks
1 host 1 set
2 Special thickened sealed glass cylinder 1 piece 1
3 Water bath top cover assembly 1 set Contains 4 capillary stands
4 Control cable 1 piece
5 Fuse tube 1 piece 10A
6 Capillary viscometer 4 piece Can choose
7 Operating instruction 1 copy
8 Wash ears ball 1 piece
9 Packing list 1 copy
10 Certificate of approval 1 copy
