Single - Chip Interfacial Tension Meter Adopts Microprocessor Technology ISO 6295-1983

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Automatic Interface Tension Meter | Power Supply | AC 220V ± 5%, 50H2 |
---|---|---|---|
Measuring Range | 5 ~ 200mN / M | Applicable Temperature | 10--30 ℃ |
Adapt To Temperature | ≤80% | International Standard | ISO 6295-1983 |
K1 | Large LCD Display | K2 | Various Liquid Surface Tension |
K3 | Interfacial Tension Between Mineral Oil And Water | ||
Highlight | pour point tester,transformer oil testing machine |

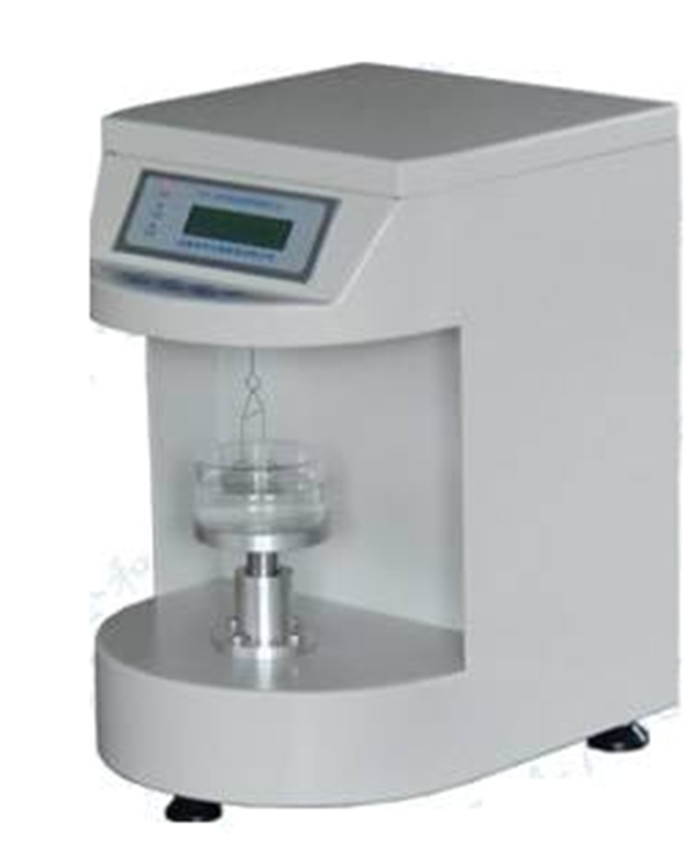

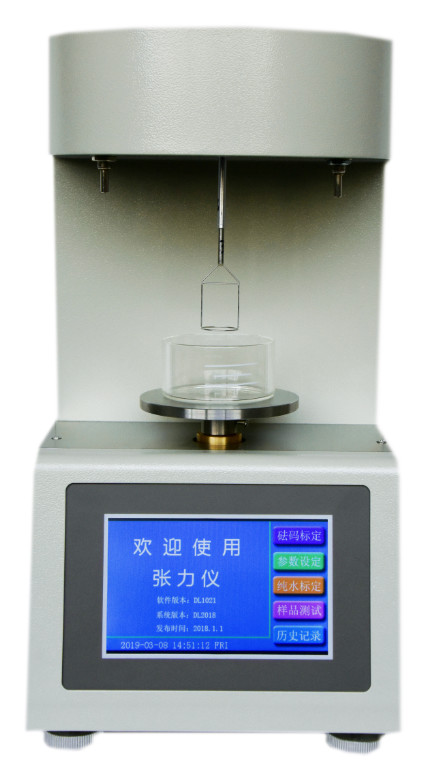

SH107 automatic interfacial tensiometer uses the ring method to measure the surface tension of various liquids (liquid-gas phase interface) and the interfacial tension of mineral oil and water (liquid-liquid phase interface) under non-equilibrium conditions. The instrument adopts microprocessor technology, high degree of automation, simple operation and reliable operation. After the sample is injected into the sample cup, as long as the start key is pressed, the instrument can automatically complete the measurement of the sample, and can automatically according to the input The specific parameters calculate the tension value of the tested sample.
The instrument uses single-chip technology, large-screen LCD display, beautiful appearance, high degree of automation, simple operation, high accuracy and good repeatability. Input data parameters are saved after power-off; with temperature correction function. The instrument is widely used in the determination of interfacial tension in the production process and products of power, petroleum, chemical, railway and other industries.
Technical Parameters
Display system: large-screen LCD display interface tension
Measurement method:
|
ISO 6295-1983,GB/T6541-86 |
|
5 ~ 200mN/m |
|
fast: 1mm/S |
|
0.3 -- 0.4 mm/S |
|
0.1mN/m |
|
10--30℃ |
|
≤80% |
|
AC 220V±5%, 50H2 |
|
20VA |
|
length 185, width 290, height 360 |
Company Introduction
Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.
For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.
Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
