High Degree Automatic Edible Oil Testing Equipment Oxidation Stability Tester oxygen pressure change method
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Method | Oxygen Pressure Change Method | Power Supply | 220V 50hz |
|---|---|---|---|
| Pressure Rang | 0-8bar | Temperature Range | Room Temperature-200 Degree |
| Test Item | Test Food Pellet Feed Oxidation Stability Time | Key Words | Oxidation Stability Tester Oxygen Pressure Change Method |
| Highlight | soil laboratory equipment,professional soil ph tester |
||
Product Description

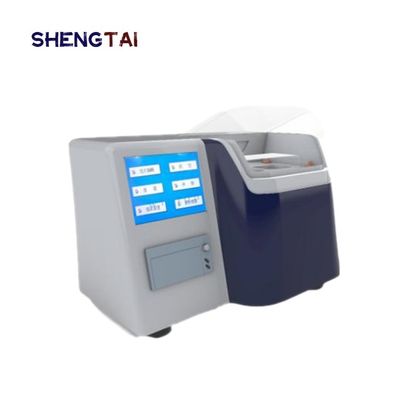

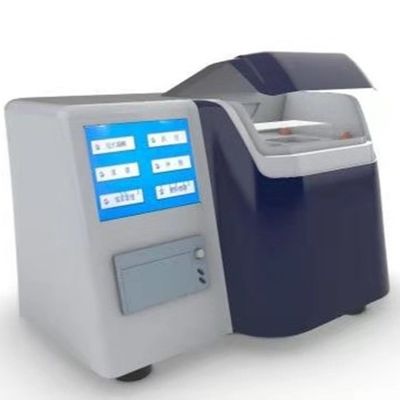

Automatic plant oil oxidation stability instrument (oxygen pressure change method)
The ST149B Automatic Oxidation Stability Tester maintains a relatively stable environment for a short period of time under an oxygen-free environment according to the food at room temperature. When the temperature and pressure are increased, the food's resistance to the oxidation of fat will be weakened. This product complies with ISO 6886: 2004 "Animal and vegetable fats and oils-Determination of oxidation stability (accelerated oxidation test)". This instrument automatically records the changes in oxygen pressure during the oxidation of food. Through this method, you can know the stability of food oil oxidation . It is suitable for foods containing oils, solids or liquids, including vegetables and animal tissues, and can directly detect foods without the need to separate oils and fats.
The grease oxidation analyzer is a general-purpose instrument that is widely used,
★ Predict shelf life, oxidation stability during research;
★ Evaluate storage conditions;
★ Evaluate packaging solutions;
★ Comparison of oxidation stability of foods with different formulas;
★ Evaluate the oxidation stability of vegetable oils from different plants;
★ Evaluate the effectiveness of antioxidants;
★ Oxidation stability of raw materials and information about finished products;
★ Product oxidation information: Some products are oxidized slowly and are not visible, especially for products with low fat content (4-5%). In this case, the oxidation of the product can be determined by a combination of oil oxidation analyzer and gas chromatography technology.
Performance characteristics
l, Instrument display: 7-inch color touch screen, beautiful interface, simple operation
2. High degree of automation: automatic heating and constant temperature, automatic recording of test data and real-time display of curves.
3. Adopt PT100 imported sensor, the experiment temperature can be set at will.
4. The design volume is small, and the metal bath is free of liquid medium.
5. Simple ventilation, no need to be placed in a fume hood, exhaust gas and odor can be simply discharged through a plastic tube.
6. The operation of up to 2 groups of tests can be detected at the same time
7. Sample temperature sensor assembly: the temperature of the sample can be measured during the test
8. Single sample capacity: 20ml
9. Equipped with micro printer.
Technical Parameters:
1. Power supply: AC220V ± 10%.
2. Heating tube power: 2500W.
3. Range of pressure sensor: 0-8bar
4. Temperature control range: temperature control range: room temperature ~ 200.0 ℃
5. Temperature control accuracy: ± 0.1 ℃.
6. Instrument size: 550mm * 430mm * 380mm (length, width and height)
7. Weight: 30k
| Power supply | AC220V ± 10% |
| Heating tube power | 2500W |
| Range of pressure sensor | 0-8bar |
| Temperature control range | room temperature ~ 200.0 ℃ |
| Temperature control accuracy | ± 0.1 ℃ |
| Instrument size | 550mm * 430mm * 380mm (length, width and height) |
| Weight | 30kg |
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
| Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
| Est. Time(days) | 6 | 20 | 30 | To be negotiated |
Contact us
Shandong Shengtai Instrument Co.,ltd
ADD:6-8 time base NO.15 lanxiang road tianqiao Area jinan city
TEL:+86 0531-85919987 85929987
FAX:+86 0531-85957987
Wechat:+86 13370527859
Whatsapp/facebook:+86 13370527859
QQ:3206156217
Email:3206156217@qq.com
Web:www.labtool.net/en
