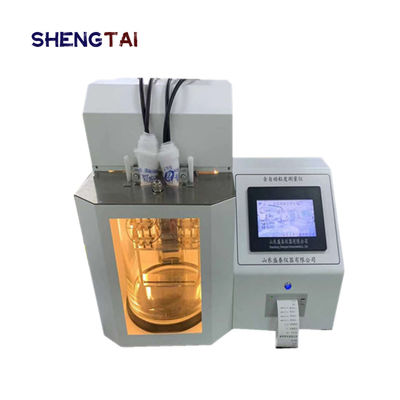

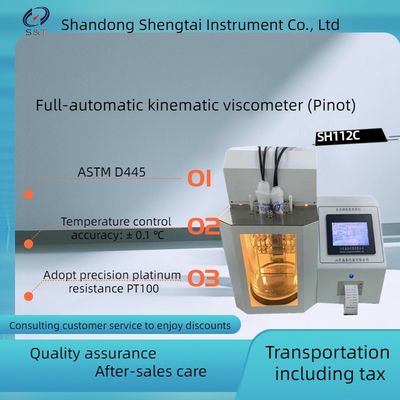

ASTMD445 Fully Automatic Kinematic Viscometer SH112C for Measuring the Kinematic Viscosity of Light Fuel Oil (Pinot)

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SH112C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH112C Temperature Control Range Room Temperature+5 ℃~100.0 ℃
Temperature Control Accuracy ± 0.1 ℃ Measurement Range 0.6-1700mm2/s
Timing Range 0.0s~999.9s Temperature Sensor Pt100 Platinum Resistor
Highlight

USB kinematic viscosimeter

,

Digital kinematic viscosimeter

Leave a Message
Product Description

SH112C automatic kinematic viscometer is designed and manufactured in strict accordance with GB / T265 and astmd445 standards. It can measure the kinematic viscosity of transparent and opaque liquids to the same accuracy, including crude oil, light fuel oil, lubricating oil, additives and silicone oil. It is also suitable for measuring the kinematic viscosity of samples with high wax content or samples containing insoluble components at room temperature. Fully automatic sample injection, constant temperature, viscosity test, cleaning and drying viscometer do not need random operation. After setting out, the operator can leave the site, and the instrument can complete all tasks automatically.



The working principle is to put the sample into the selected capillary viscometer, the capillary immersed in a constant temperature bath. The sample is inhaled to the calibration position. When the sample flows to the upper calibration position, the instrument starts to record the time. When the sample flows to the calibration position, the recording time stops. The instrument will automatically calculate the kinematic viscosity of the sample.

The main features

1. Large size color touch screen, resolution up to 1024*600.

2. Adopt 32-bit microprocessor as the control core, independently developed graphical man-machine interface for operation.

3. The main parts and electronic components of the instrument are imported devices with good stability.

4. The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

5. Double cylinder body, fast and stable temperature control, heating rate >

5 ℃ / min.

6. Equipped with LED soft light, uniform filling light, easy to observe.

7. It has the function of storing viscometer parameters.

8. Standard micro printer for automatic measurement and thermal printing

9. Application method: GB/T265 ASTMD445

10. Temperature control range: room temperature+5 ℃~100.0 ℃ Temperature control accuracy: ± 0.1 ℃

11. Measurement range: 0.6-1700mm2/s

12. Timing range: 0.0s~999.9s

13. Sample quantity: 2 sets of capillary viscometers (indicate viscosity range when ordering)

14. Temperature sensor: Pt100 platinum resistor

15. Storage method: The experimental results can store 199 sets of historical data for easy query

16. Result output: It can also be equipped with a USB flash drive output function, which can be output to the PC for long-term storage

17. Output Format: The output format of the result USB drive is CSV or Excel

18. Viscometer fixture: Made of all 304 stainless steel material and resistant to high and low temperature graphite sliding bearing device

19. Data memory: The memory of microcomputer instruments can be expanded to 16GB

20. Standard printing: Standard micro printer for automatic measurement and thermal printing

★ 22. Remote upgrade: With TCP network transmission function, software remote upgrade can be carried out in the later stage

★ 23. Data management: can be connected to the LIMS system (optional)

Size : 450 * 380 * 550mm weight: 38kg



Temperature control range room temperature+5 ℃~100.0 ℃
Temperature control accuracy

± 0.1 ℃



Measurement range 0.6-1700mm2/s
Timing range 0.0s~999.9s
Temperature sensor Pt100 platinum resistor

Size : 450 * 380 * 550mm weight: 38kg





Packing list

S/N Name Quantity Unit Remarks
1 Full-automatic viscosity tester 1 set
2 Special viscosity tube 4 piece
3

Sample injector



1 piece
4 Printing paper 2 piece
5 Electric aspirator 1 set
6 certificate 1 copy
7 instructions 1 copy
8 Special tools 1 piece
