Diesel oil above 40 ℃, transformer oil, cold pressed oil flash point SD261 closed flash point meter

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SD261
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SD261 Working Power Supply AC220V±10%, 50Hz
The Sample Heating Rate 1 ~ 12℃/ Min Ignition Source Gas
Firearm Aperture 0.8mm
High Light

chemical analysis equipment


chemical composition analysis equipment

Leave a Message
Product Description

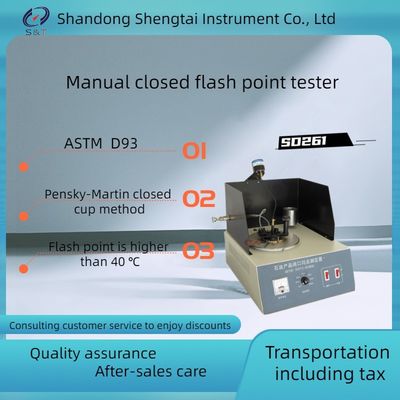

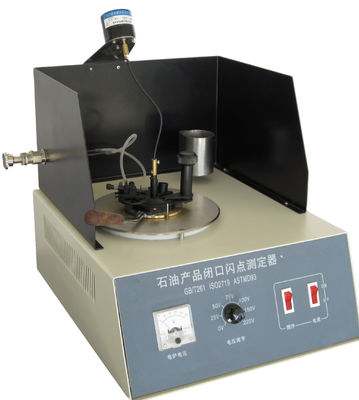

SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.

ASTM D93 Automatic Binsky Martin Closed Cup Flash Point Apparatus Tester


Product model SD261
Test sample Petroleum, electric power, chemicals, products
Compliance with standards GB261-2008 Conforming to ISO-2719, ASTM D93, Binsky Martin closed cup method
Simple technical features or parameters Air source ignition, manual timing and visual observation


I. Main technical features

Heating power continuous, step less adjustable.

II. Main technical parameters and indicators

working power supply AC220V±10%, 50Hz.
Heating device heating power from 0 ~ 600W continuously adjustable.
The sample heating rate

1 ~ 12℃/ min.


Standard oil cup

Inner diameter: 50.7 ~ 50.8 mm.

Depth: 55.7 ~ 56.0 mm.

Test capacity notch depth: 33.9 ~ 34.3 mm.

Test capacity: about 70 ml

Ignition device

ignition source: gas

Firearm aperture: 0.8mm

Thermometer bar mercury thermometer, in line with GB/T 261-2008 standard requirements.

Packing list:

The host 1
Oil cup 1
Thermometer 1
Instructions 1
Certificate warranty card 1


Customer provided: air source and air source required pressure reducing valve

Customer's own: air source and pressure reducing valve for air source
