Product Details
Standard ASTM D95 Function Oil Water Content Tester
Method Distillation Method Product Name Moisture Content Testing Equipment,moisture Meter/analyzer
Key Words Dean Stark Distillation Apparatus ASTM D95 Oil Water Content Tester Place Of Origin China
High Light

chemical analysis equipment

,

chemical composition analysis equipment

Leave a Message
Product Description

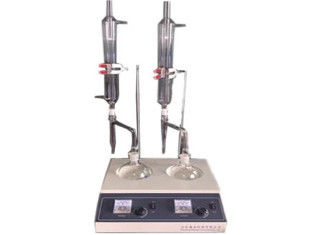

SD260B dual oil moisture meter



The SD260B oil moisture meter is designed and manufactured according to the requirements of the standard GB/T260 petroleum product moisture method of the People's Republic of China, which conforms to the requirements of G/JBJD6 petroleum product moisture tester technical conditions.
This instrument is suitable for the determination of moisture content in petroleum products according to the test method specified in GB/T260 standard, and also for the determination of moisture content in grease according to the test method specified in GB/T512 grease moisture method.

     Moisture Content Determination  ASTM D95 Moisture in Oil Meter by Distillation Method Lab Test Instruments 0
I. main technical features
1. The design of the instrument fully conforms to the requirements of GB/ T260 and G/JBJD6 standards.
2. The gripper design of the test vessel is reasonable, and the condenser tube is easy to install and disassemble.
Main technical parameters and indicators
1. Working power supply: AC 220V±10%, 50Hz.
2. Heating power of electric furnace: 1000W.
3. Ambient temperature: ≤35℃.
4. Relative humidity: ≤85%.
5. Power consumption of the whole machine: no more than 1100W.
Reagents:
Solvent (initial distillation point not less than 50 ° c dc gasoline) oleic acid or stearic acid anhydrous calcium chloride: chemically pure

 Moisture Content Determination  ASTM D95 Moisture in Oil Meter by Distillation Method Lab Test Instruments 1



Technical Parameters

Power supply AC(220±10%)V, 50Hz
Heating power of electric furnace 1000W*2
Heating control Can be continuously adjusted by a silicon knob
Ambient temperature ≤35℃
Relative humidity ≤85%
Maximum power consumption 2200W
Dimensions 430mm×320mm×700mm(L×W×H)



Moisture Content Determination  ASTM D95 Moisture in Oil Meter by Distillation Method Lab Test Instruments 2
