Sulphur Analytical Instrument SH387 Dark petroleum sulfur content tester (tubular furnace method)

Place of Origin CHINA
Brand Name shengtai Instrument
Certification ISO9001
Model Number SH387
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH387 Temperature Range 900 ~ 950 ºC
Heating Power 1600W Temperature Accuracy ± 1 ºC
Electric Stroke 130mm Flow Meter 60 ~ 600 Ml/min
High Light

lab test equipment

,

oil analysis lab equipment

Leave a Message
Product Description

SH387 Dark petroleum sulfur content tester (tubular furnace method) is according to the national standard GB/T387 "determination of sulfur content of petroleum products" (tubular furnace method) requirements, for the production of petroleum and its products, scientific research and other industries design and manufacture.

Petroleum Sulfur Measuring Instrument

New Sulfur Content Measuring Instrument for Fuels

GB/T387Petroleum Oils Sulfur Content Tester/Sulphur Analytical Instrument

It has the characteristics of small shape, reasonable design, using single-chip computer program control and high degree of automation.

It is suitable for the determination of sulfur content in petroleum products such as lubricating oil, crude oil, coke and residue.

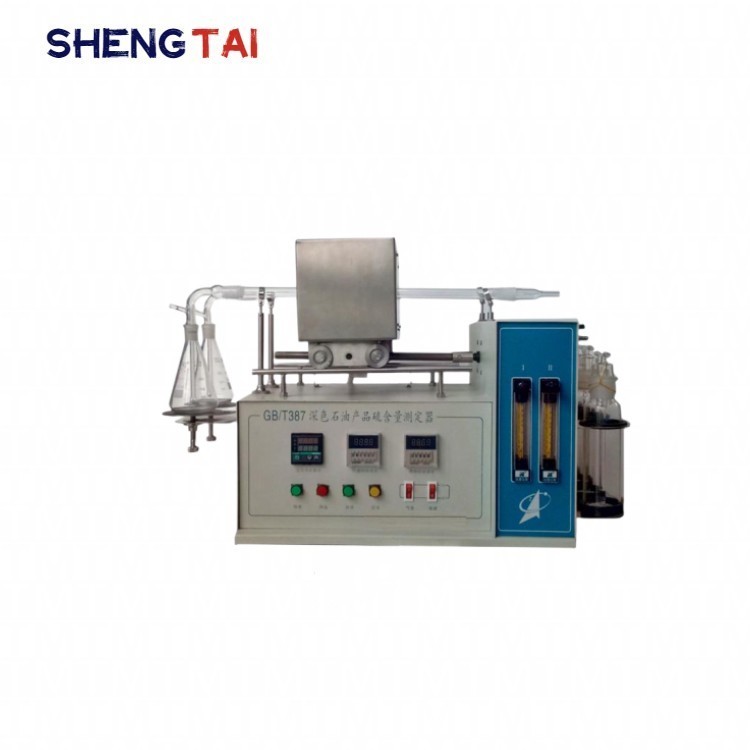

The instrument is mainly composed of horizontal tubular electric furnace system, digital display temperature control system, motor drive control system, air purification flow regulation system, etc.

The electric furnace is heated by the electric furnace wire, and the operation of the servo motor is automatically controlled by the single chip microcomputer, and it has the functions of manual fast forward, fast retreat, measurement and stop.

Two quartz tubes with straight grinding tube installed in parallel can test two samples at the same time, and two results can be made in parallel at one time.

Three gas washing cylinders are used to purify the air. If the sulfur content in the air of the laboratory often changes, the U-shaped pipe with activated carbon can be connected in series in the air supply loop. The air pump and the air flow regulating system can adjust the air flow required by the test.

Thermocouple located in the center of the furnace can accurately measure the heating temperature of the furnace and control the temperature automatically.

Main technical parameters

Model SH387 Dark petroleum sulfur content tester
Temperature range 900 ~ 950 ºC
Temperature accuracy ± 1 ºC
Heating power 1600W
Electric stroke 130mm
Travel time 25 ~ 65 min, can be arbitrarily selected
flow meter 60 ~ 600 ml/min
air flow meter test flow 500ml/min
Thermocouple dividing number K
Ambient temperature room temperature of about 25℃
Instruments Material imported brushed stainless steel
relative humidity < 85%
Power supply AC220V ± 10% 50Hz
Instrument size: 900 × 350× 450 mm weight: 25kg

Packing list

S/N Name Unit Quantity Remarks
1 Determinator set 1
2 Gas cylinder washing set 3 Straight tube type
3 Receiving bottle, 250mL piece 2 Triangular flask
4 Quartz elbow piece 2
5 Small quartz tube piece 2
6 Porcelain boat piece 4
7 Quartz boat moving hook piece 1
8 Quartz straight tube piece 2
9 Thermocouple piece 1
10 Hose meter 2
