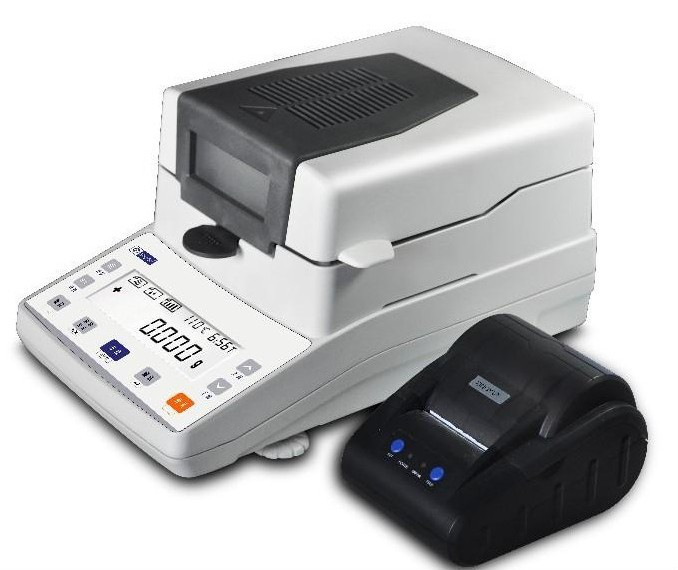

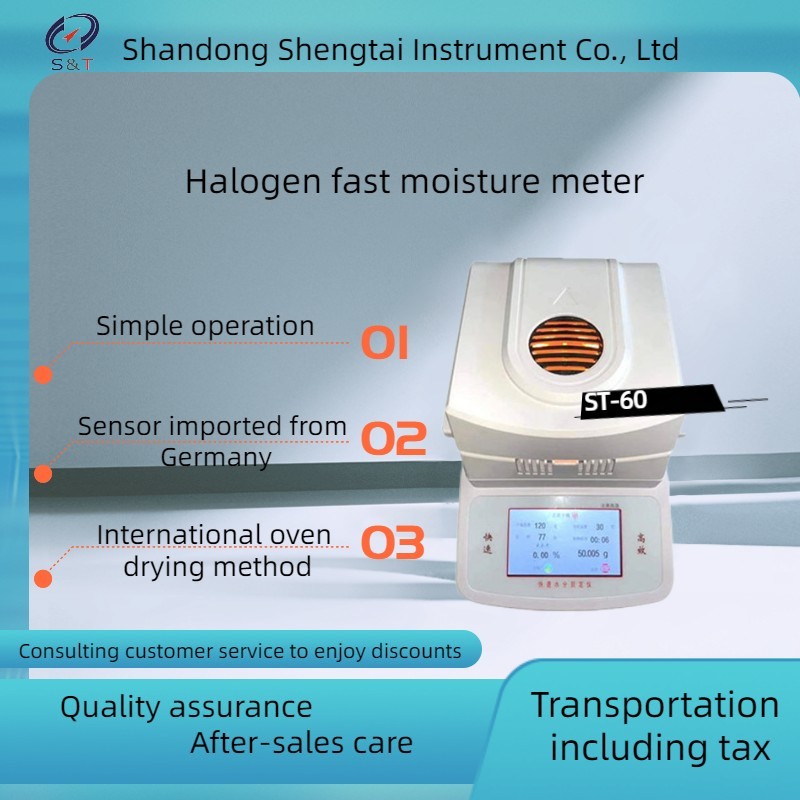

Light Weight Lab Test Instruments Halogen Moisture Meter Stable Performance ST-60

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST-60
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL ST-60 Service Temperature 5°C---35°C
Display LCD Calibration Method External Calibration
Pan Size(mm) Φ90 Heating Mode Halogen Lamp
Temperature Setting 40°C---199°Cby1°Cstep Heating Part 220V+15%50Hz 400W
High Light

lab test equipment


laboratory testing equipment

Leave a Message
Product Description

ST-60Moisture Analyzer with halogen heating, intelligent operation. Quickly drying the sample evenly to obtain accurate moisture determination results of ground water clear determination to achieve visual information display, simple, easy to operate instrument. Water samples stored in a variety of pre-determination, makes testing quick and easy. And improved several times compared to mechanical efficiency and accuracy of measurements. Standard interface with computers and other peripherals connected.

0.001g/1mg/5mg/10mg Digital Halogen Grain Corn Seeds Analysis Moisture Analyzer

110g 0.01g 0.005g 0.001g 0.002g Digital Halogen Moisture Analyzer

Ma-50-5 Digital 0.005g Rapid Halogen Heating Grain Dry Fruit Moisture Analyzer


1. It can be used after unpacking without installation and commissioning;


2. No training is required, the operation is simple, and cumbersome use steps are saved;


3. Short measuring time and high working efficiency;


4. Uniform heating, stable performance and accurate testing;


5. Small size and light weight;


6. Full-automatic measurement, alarm reminder after measurement, no need to watch the measurement process;


7. It is widely used and almost suitable for moisture determination in all industries;


8. The sensor imported from Germany makes the instrument test more excellent and accurate;


9. The unique windshield design makes the instrument weighing system more stable;


10. The water content and solid content of the sample can be converted at the same time;


11. The heating chamber adopts pure stainless steel chamber cover, which is high temperature resistant and easy to clean.

Light Weight Lab Test Instruments Halogen Moisture Meter Stable Performance  ST-60 0

working principle:


The traditional moisture determination method is generally oven drying method. The test of a sample takes two or three or even three or four hours, and the moisture value (moisture content) of the sample can be obtained only after weighing and manual calculation by a balance. The low efficiency of moisture determination by oven method can not meet the needs of high-tempo enterprise production. ST series rapid moisture tester is a high-efficiency moisture tester developed. It uses a high-efficiency drying heater - high-quality annular halogen lamp to heat the sample quickly and evenly, and the moisture of the sample is continuously dried. During the whole measurement process, the instrument automatically displays the measurement results in real time: sample weight, water content, solid content, measurement time, heating temperature, etc.




1. Halogen lamp heating


2. Stainless steel heating chamber


3. Adjustable temperature/time


4. Percentage display of moisture content


5. Percentage display of drying allowance


6. Large LCD screen with backlight


7. Can remember multiple drying processes


Technical parameter

Model ST-60 ST-80 ST-100
Maximum weighing (g) 110 110 110
Reading accuracy (g) 0.005 0.001 0.0001
Moisture measurement error 0.2% 0.1% 0.05%
Service temperature 5°C---35°C
Display LCD
Calibration method External calibration
Pan size(mm) Φ90
Dimensions(W*L*H) 200*180*380
Weight(Kg) 5.8
Heating mode Halogen lamp
Temperature sensor PT-100
temperature range 40°C---199°C
Temperature interva 1°C
Moisture range 0.00%---100%
Moisture readability 0.01%
Dry residual range 100.00%---0.00%
Dry residual readability 0.01%
ATRO 100%---999%
ATRO 0%---999%
Temperature setting 40°C---199°Cby1°Cstep
Time setting 1---99min by 1s step
Automatic stop 0.1%---9.9%within 1 min
Save History 15
Heating part 220V+15%50Hz 400W
Connecting part R232 Interface
Balance part External power supply
Output: 9V Lnput: 220V+15%50Hz


packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Sample tray 5 piece
3 Power cord 1 piece
4 Fuse tube 1 piece 10A in the safety seat
5 instruction manual 1 copy
6 Certificate warranty card 1 COPY

Light Weight Lab Test Instruments Halogen Moisture Meter Stable Performance  ST-60 1Light Weight Lab Test Instruments Halogen Moisture Meter Stable Performance  ST-60 2

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
