ST204A Fully automatic Ubbelohde viscosity tester (relative method) audit tracking function Account Layering

Place of Origin china
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST204A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 5-8work day
Payment Terms T/T
Supply Ability 10000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST204A Methods General Rule 0633 Of 2020 Chinese Pharmacopoeia
Temperature Control Accuracy ±0.1℃; (0.01 ℃ Can Be Customized) Timing Range 0.0s ~ 999.9s;
Timing Accuracy No More Than ±0.01% Within 60min Rated Power 1800W
Highlight

pharmatron hardness tester

,

tablet hardness tester

Leave a Message
Product Description

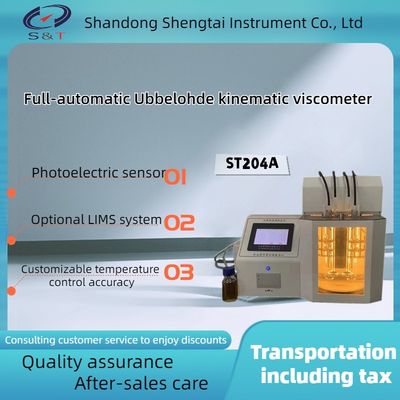

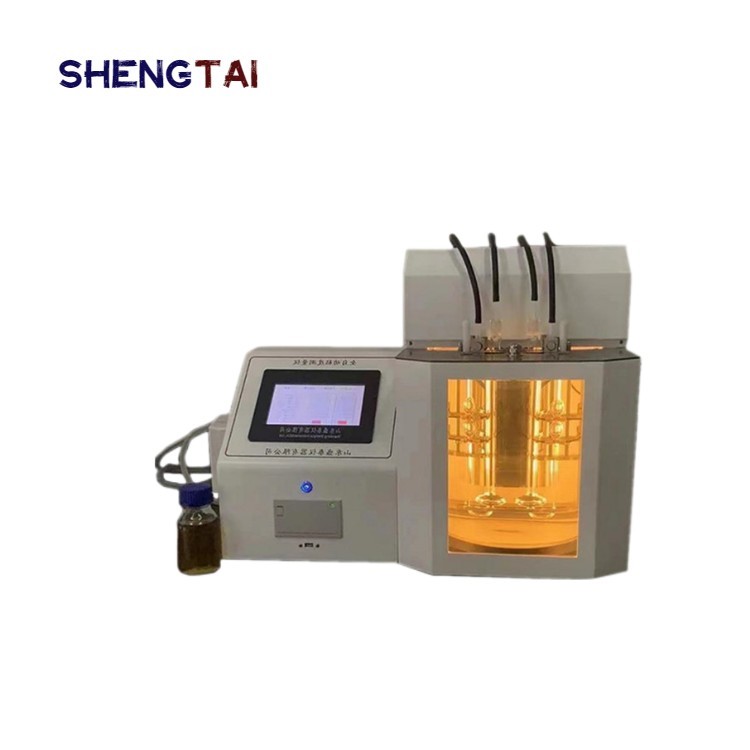

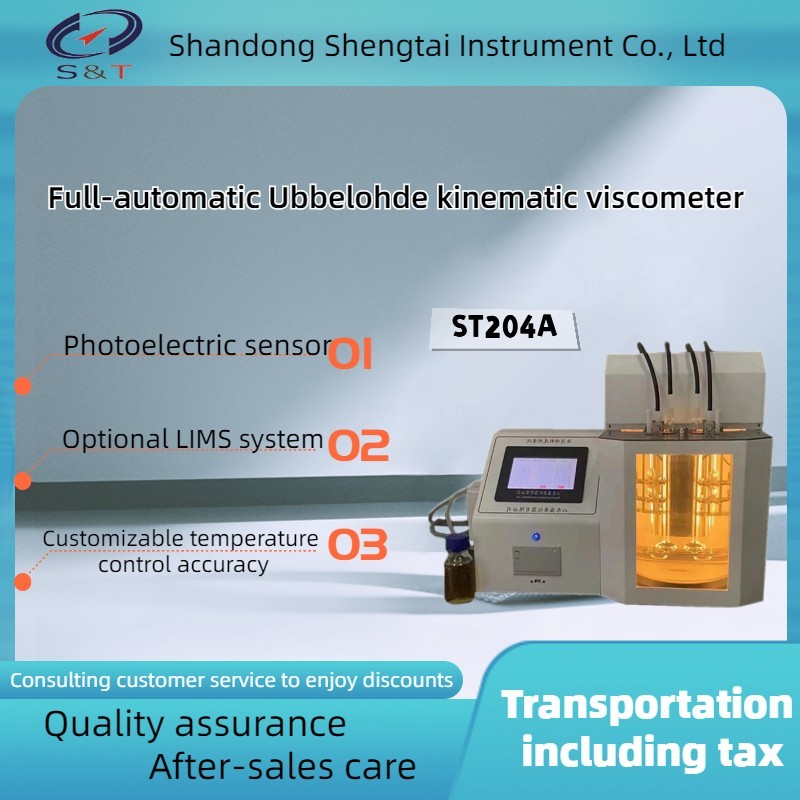

ST204A fully automatic Ubbelohde kinematic viscosity tester is suitable for the design and manufacture of the second method Ubbelohde capillary viscometer in general rule 0633 of The Chinese Pharmacopoeia in 2020. This method is to measure the time required for a certain volume of liquid to flow through the capillary under the action of gravity by the relative method, so as to obtain the kinematic viscosity of the fluid.



ST204A automatic Uhler's kinematic viscometer has a series of automatic functions, such as automatic constant temperature, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, automatic drying, etc. The test can be completed by one sample injection and clicking start.



Main technical features

1. The display mode is a 7-inch color touch screen.

2. Adopt embedded system design, automatic detection and automatic printing in the whole test process.

3. The main parts and electronic components of the instrument are imported, with good stability.

4. The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

5. The test results can be exported through the U disk.

6. Equipped with LED soft light, uniform lighting, easy to observe.

7. The test results can be stored;

You can view the historical data.

8. Printed on the instrument, the bath contains automatic mechanical stirring

9. Date password setting function.

10, with RS232,RS485, Ethernet and other interfaces (optional).

11. The account can be divided into administrators and experimenters (optional).

Technical indicators

Methods General rule 0633 of 2020 Chinese Pharmacopoeia
General temperature control range

room temperature ~ 100.0℃

(High temperature to 150 ℃ or low temperature to 0 ℃ can be customized)

Temperature control accuracy ±0.1℃; (0.01 ℃ can be customized)
Timing range 0.0s ~ 999.9s;
Timing accuracy no more than ±0.01% within 60min;
Number of samples 2 sets of capillary viscometers (viscosity coefficient range shall be indicated when ordering);
Service environment

Ambient temperature 10℃ ~ 35℃,

relative humidity ≤ 85%;

Temperature sensor Pt100 platinum resistance
Rated power 1800W
Size: 450 * 380 * 550mm Weight: 38kg

Packing list



S/N Name Quantity Unit Remarks
1 Host 1 1set
2 Ubbelohde special viscosity tube 4 piece Comply with the pharmacopoeia
3 Special viscometer support 1 set
4 Cleaning fluid conduit 2 piece
5 Electric attractor 1 set
6 power cord 1 piece
7 Certificate warranty card 1 copy
8 instructions 1 copy
9 Printing paper 2 volume

ST204A Fully automatic Ubbelohde viscosity tester (relative method) audit tracking function Account Layering 0ST204A Fully automatic Ubbelohde viscosity tester (relative method) audit tracking function Account Layering 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

ST204A Fully automatic Ubbelohde viscosity tester (relative method) audit tracking function Account Layering 2

Contact us

Shandong Shengtai Instrument Co.,ltd

ADD:6-8 time base NO.15 lanxiang road tianqiao Area Jinan city

TEL:+86 0531-85919987 85929987

FAX:+86 0531-85957987

Whatsapp/facebook:+86 13370527859

QQ:3206156217

Email:3206156217@qq.com

Web:www.labtool.net/en
