Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil standard ISO13736.

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH21789
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Abel Fully Automatic Type Closing Cup Flash Point Tester Of Diesel Oil Standard ISO13736
Sample Heating Rate 1℃/min Detection Interval 0.5℃
Flash Point Measurement Range -30.0℃~75.0℃ Heating Power 150W
Operation Interface 7 Inch High Resolution LCD Touch Screen
High Light

automatic kjeldahl nitrogen analyzer


pellet hardness tester

Leave a Message
Product Description

    SH21789 Automatic Abel closed flash point tester is designed and manufactured according to the requirements of the national standard GB/21789 "Determination of flash point of petroleum products and other liquids (Abel closed cup method)" and ISO13736.

It is suitable for the determination of petroleum products and other liquids in the range of -30℃ ~ 70℃.

Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;

Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil

Color touch screen;

The test results can be stored;

You can view historical data;

Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.


Main Technical Parameters

Power supply AC220V±10%,50Hz
Flash point measurement range -30.0℃~75.0℃
Accuracy measurement range -8.5℃~75.0℃
Sample heating rate 1℃/min
Detection interval 0.5℃
Maximum power consumption ≤700W(each parts not work at the same time)
Heating power 150W
Cooling power 300W
Ignition rod power 120W
Operation interface 7 inch high resolution LCD touch screen with resolution 800*480
Air pressure detection Imported digital air pressure sensor chip, error: ± 0.3kPa at 25℃
Cooling component Compressor refrigeration test bath
Heating method Electric heating test bath
Printer Embedded thermal micro printer
Test result storage 256 pieces of test result can be stored



 Main technical parameters

Applicable standards: GB/T21789, ISO13736 IP170

Test range: -30℃ ~ 80℃ or 0-120℃ (external circulating cold water bath)

Temperature detection: platinum resistance (PT100)

Display mode: 6.4 "TFT LCD

Cooling method: compressor cycle refrigeration

Heating rate: 1℃/min

Display accuracy: 0.1℃

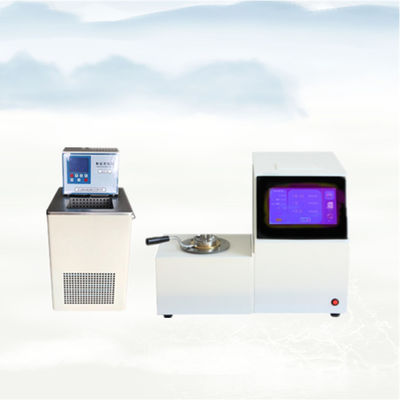

Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil  standard  ISO13736. 0


Mixing speed: 0.5r/s(30r/min)

Storage: 199 sets of historical data can be stored for easy query;

★ Result output: at the same time can be equipped with U disk output function, output to PC for long-term storage (optional)

★ Output format: the output format of the U disk is CSV or EXCEL. (optional)

★ Data protection: with date password setting function. (optional)

Standard printing: standard micro printer automatic measurement automatic thermal printing

★ Remote upgrade: with TCP network transmission function, can be later software remote upgrade (optional)

★ Data management: can be connected to LIMIS system (optional)

★ Data memory: microcomputer instrument memory can be expanded to 16G.

Ignition mode: electronic ignition or gas ignition

Ambient temperature: 10-40℃ Relative humidity: ≤8℃

Host power consumption: ≤650W;

Low temperature circulating refrigerator: ≤1200W

Power supply: AC 220V±10%, 50Hz

Weight: 25 kg

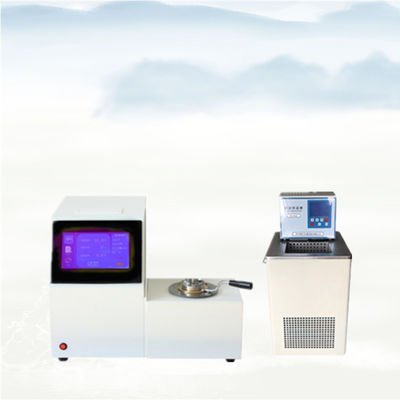

Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil  standard  ISO13736. 1Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil  standard  ISO13736. 2

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.

Packaging & Delivery

1. Out packing: Standard export wooden case.
2. Inner packing: With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated

Abel Fully Automatic Type Closing Cup Flash Point Tester of Diesel Oil  standard  ISO13736. 3
