Vertical Hardness Testing Machine Pellet Hardness Tester Determination of particle hardness large force value

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number ST120K
Minimum Order Quantity 1
Packaging Details wooden case
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL ST120K Power Supply AC220v50hz.
Displacement Resolution 0.01mm Test Speed 0.5-500mm/min
Test Stroke 200mm
High Light

hardness testing machine

,

pellet hardness tester

Leave a Message
Product Description

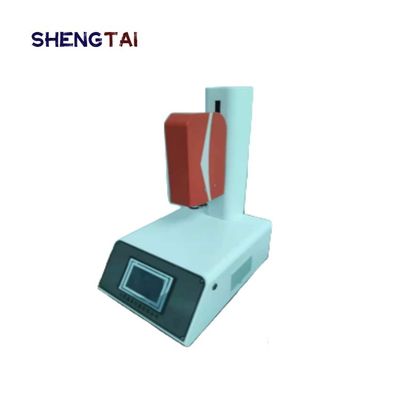

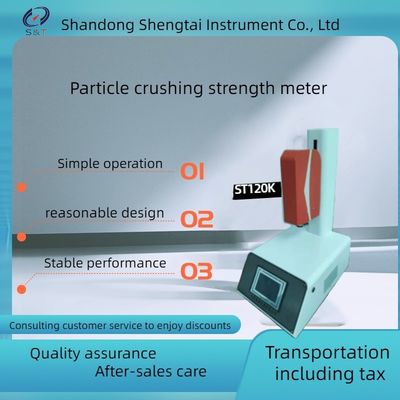

ST120K vertical automatic fertilizer hardness tester



The ST120K automatic fertilizer hardness tester mainly includes the special software for single machine version of the main machine of the quality and configuration instrument, the special fertilizer hardness probe and other accessories.
The basic structure generally consists of a mechanical device that can deform the sample, a fitting for holding the sample and a recording system that records the force, time and rate of deformation.
Test over distance, time and force test and result analysis, physical property analyzer reflects mainly related to the mechanical characteristics of texture feature, the result is of high sensitivity and objectivity, and can be equipped with the special software for accurate quantitative processing, the results by quantitative indicators for objective comprehensive evaluation items.

   Vertical Hardness Testing Machine Pellet Hardness Tester  Determination of particle hardness large force value 0
|
Product introduction:
• used for testing particle hardness such as fertilizer
• test indicators: hardness and other physical indicators
• the testing process was completed via an online LCD touch screen
• the transmission mechanism adopts ball screw, the transmission is stable and accurate;
Imported servo motor, low noise, accurate control
• 24 high precision AD converter and high precision force sensor are adopted to ensure the rapidity and accuracy of instrument force data acquisition.
• real-time display of force-time, force-deformation, force-displacement, etc


Main technical parameters:

Technical parameter



(1) Force measurement resolution: 1/10000 (e.g., 200kg ÷ 10000=0.02kg);



2kg (resolution 0.0002), 5kg (resolution 0.0005), 10kg (resolution 0.001)



(2) Force measurement accuracy: better than ± 1%;



(3) Displacement resolution: 0.01mm



(4) Test speed: 0.5-500mm/min;



(5) Test stroke: 200mm;



(6) Machine weight: about 18kg;



(7) Overall dimension: 300 * 420 * 650 mm (w * d * h)



(8) Power supply: single-phase, AC220v50hz.



Product Packing List

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 Fuse tube 1 piece 10A in the safety seat
4 instruction manual 1 Copy
5 Certificate warranty card 1 copy









    Vertical Hardness Testing Machine Pellet Hardness Tester  Determination of particle hardness large force value 1





OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.



Vertical Hardness Testing Machine Pellet Hardness Tester  Determination of particle hardness large force value 2



Packaging & Delivery

1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.

4.Port Any port of China

Lead Time :

Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 6 20 30 To be negotiated
