ISO 1523 ISO 3679 Low Temperature Closed Cup Flash Point Tester of Gasoline balance method - 30 ℃ to+100 ℃.

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH105D | Power Supply | AC 220V±10%, 50 Hz |
---|---|---|---|
Flash Point Measurement Range | -30~100°C | Temperature Controlling Accuracy | ±0.1°C |
Ambient Temperature | 5°C~30°C | Relative Humidity | 30~80% |
Highlight | lab test equipment,laboratory testing equipment |

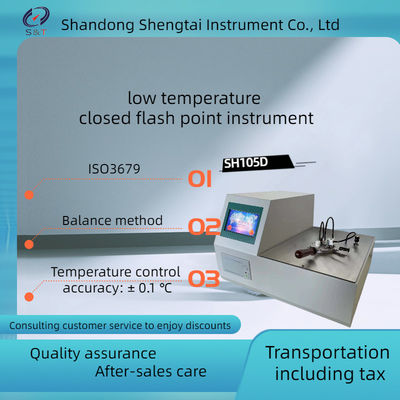

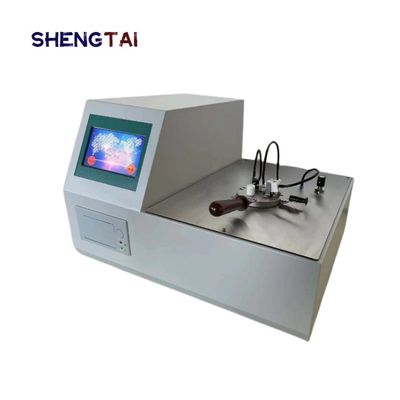

SH105D balance method low temperature closed flash point instrument is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 5208 "determination of flash point rapid balance closed cup method".
The instrument also complies with ISO 1523 and ISO 3679 standards.
This instrument takes the advanced electronic temperature control instrument as the core, is equipped with the appropriate interface circuit, realizes the automation of temperature control, has the heating power automatic switch, the temperature automatic control and other functions.
ISO 1523 ISO 3679
Low Temperature Closed Cup Flash Point Tester of Gasoline balance method
ISO 3679 Petroleum Flash Point Testing Equipment
Rapid Low Temperature Closed Cup Flash Point Tester balance method
Product model | SH105D |
Product name | Equilibrium method low temperature closed flash point instrument |
Manufacturer | Shandong Shengtai Instrument Co., Ltd |
Test items | It can meet the requirements of petroleum, chemical, coating, paint, railway, aviation, electric power, commodity inspection and scientific research institutions for the rapid test of closed flash point of petroleum products |
Compliance with standards | Standard GB/T 5208 Determination of Flash Point Rapid Equilibrium Closed Cup Method |
Simple technical feat | It is suitable for testing the flash point of all kinds of paints, paints, adhesives, solvents, petroleum and related products with the closed cup flash point in the range of - 30 ℃ to+100 ℃. |
The instrument is simple to operate, reasonable structure, accurate detection, stable performance, intuitive display, is an ideal substitute for imported instruments, can meet the petroleum, chemical, coating, paint, railway, aviation, electric power, commodity inspection and scientific research units on petroleum products closed flash point rapid test requirements.
This instrument is especially suitable for testing the flash point of all kinds of colors, paints, adhesives, solvents, petroleum and related products in the range of -30℃ ~ +100℃.
Main technical indexes and parameters
Upgraded to a 7-inch touch-color display
Flash point detection range :(-30 ~ +100)℃;
Measurement precision: the absolute difference between the two experimental results is less than 2℃ (for the same operator);
The absolute difference between the two experimental results is less than 3℃ (for different operators);
Temperature control accuracy: ±0.1℃;
Ignition device: electronic igniter ignition;
Refrigeration mode: semiconductor internal refrigeration and external compressor refrigeration cycle
After upgrade, 199 sets of historical data can be stored for easy query.
Standard: in line with the Chinese standard GB/T5208-2008, GB5207, GB7634, GB/T21790
Storage: 199 sets of historical data can be stored for easy query;
Power Supply | AC 220V±10%, 50 Hz |
Flash point measurement range | -30~100°C |
Measurement accuracy | Repeatability: less than 2°C |
Reproducibility: less than 2°C | |
Temperature controlling accuracy | ±0.1°C |
Igniter | an electron igniter |
Refrigeration type | It uses semiconductor for refrigeration (It connects to outer cooling water); |
Total power consumption | not more than 300 W |
Ambient temperature | 5°C~30°C |
Relative humidity | 30~80% |
Size: 370mm × 280mm × 380mm (L × wide × Height) Weight: 15KG | |
Circulating bath size: 450 * 480 * 580mm Weight: 28kg |
Packing list
S/N | Name | Unit | Quantity |
1 | Full-automatic low-temperature closed flash point tester+low-temperature circulation device | set | 1 |
2 | FuseΦ5×20 10A | piece | 2 |
3 | power cord(250V 10A) | piece | 1 |
4 | Printing paper | piece | 1 |
5 | Connecting water pipe (inner diameter Φ 8) | piece | 1 |
6 | instruction manual | piece | 1 |
7 | Packing list | copy | 1 |
8 | Certificate warranty card | copy | 1 |
