Particle Pulverization Rate feed durability tester Feed Testing Instrument PDI tester Feed durabiklity index tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | ST136 | Power Supply | 220V 50HZ |
---|---|---|---|
Weight | 27kg | Outer Package Size | 520x400x470mm |
Usage | Durability Test For Feed | Name | Feed Particle Pulverization Rate Tester |
Key Words | Feed Durability Tester | ||
Highlight | hardness testing machine,pellet hardness tester |

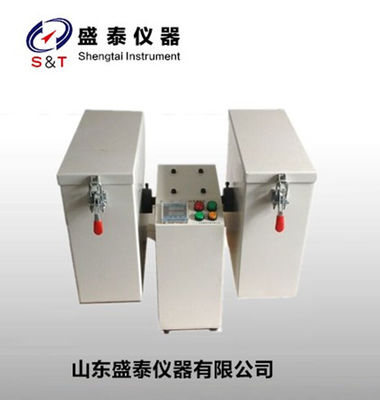

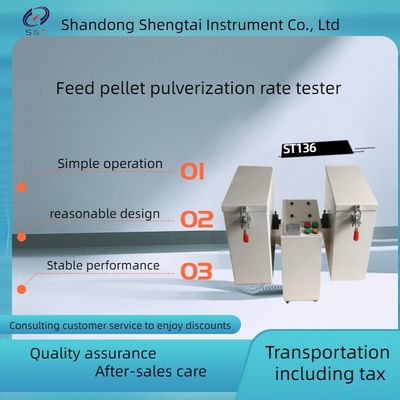

ST136 feed durability tester (feed particle pulverization rate tester) is a special instrument for testing PDI value of pellet feed.The pellet feed produced by the feed factory must have enough durability to withstand the impact of the transportation process, reduce the fine powder, and meet the customer's appearance requirements for the pellet feed.
Feed durability tester is one of the most important indicators to reflect the quality of pellet feed. It is used to measure the relative ability of pellet crushing resistance in the process of conveying and handling of pellet feed products
The higher the PDI value, the stronger the crushing resistance, the better the particle quality and the higher the feed utilization.
Main technical parameter
1. Number of rotating boxes:2
2. Rotation speed: 50 rpm
3. Number of turns: 500 revolutions / time
4. Usage time: 10 minutes
5. Time adjustment range:0-10000s
6. Power distribution: 180W 1450r / min
7. Box size: 300 * 300 * 125mm
8. Outer package size: 520x400x470mm
Number of rotating boxes | 2 |
Rotation speed | 50 rpm |
Number of turns | 500 revolutions / time |
Usage time | 10 minutes |
Time adjustment range | 0-10000s |
Power distribution | 180W 1450r / min |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Host | 1 | set | |
2 | Brush | 1 | piece | |
4 | power cord | 1 | piece | |
5 | Instructions | 1 | copy | |
6 |
Packing list
|
1 | copy | |
7 | Certificate warranty card | 1 | copy |
OUR service
After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
Packaging & Delivery
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
4.Port Any port of China
Lead Time :
Quantity(Sets) | 1 - 1 | 2 - 5 | 6 - 10 | >10 |
Est. Time(days) | 6 | 20 | 30 | To be negotiated |
