ST212B Automatic Yellow/White Vaseline Plaster Ointment Drop Point Meter 2 Holes
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | ST212B | Temperature Measurement Range | Room Temperature ~ 400 ℃ Resolution: 0.1℃ |
---|---|---|---|
Ambient Temperature | 10℃ ~ 35℃ | Environmental Relative Humidity | 30 ~ 80%RH |
Power Supply | AC220± 10% V 50HZ±1HZ | Typing | Chinese Or English Character Printing |
Power Supply | Less Than 2KW | ||
High Light | 2 Holes Drop Point Tester,Drop Point Meter 2 Holes,White Vaseline Drop Point Tester |

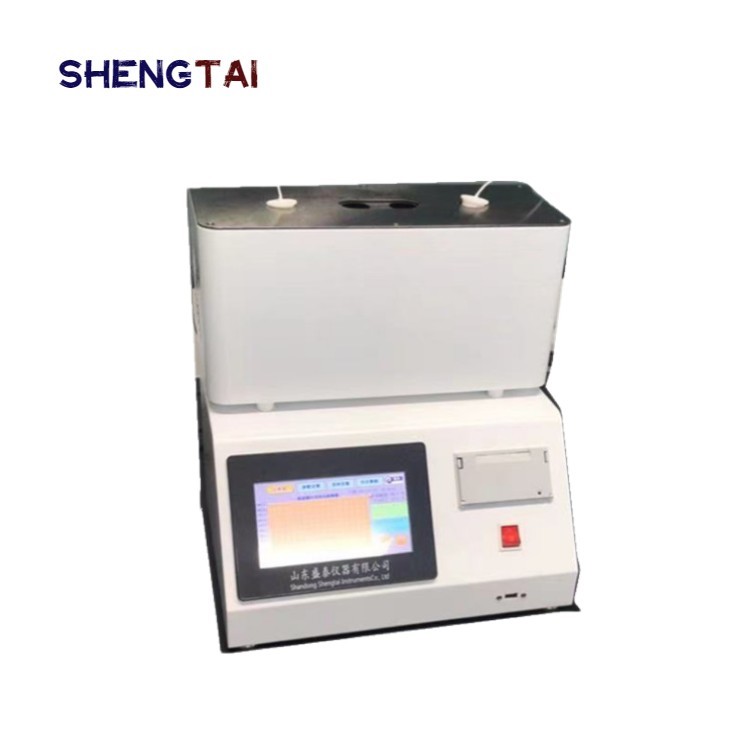

ST212B Automatic Yellow/White Vaseline Plaster Ointment Drop Point Meter(2 Holes)Pharmaceutical Testing Instruments
ST212B fully automatic yellow/white Vaseline Plaster ointment drop point meter meets the 2020 Chinese pharmacopoeia standard and England pharmacopoeia , with microprocessor as the core, it integrates mechanical, photo electronic and micro detection technology, and has the functions of automatic temperature rise control, automatic adjustment of temperature rise rate, automatic detection and recording of drop point data, automatic printing and output, etc., to complete the measurement of drop point.
heating | Metal bath heating, no noise, no pollution, fast heating rate; |
Typing | Chinese or English character printing |
Printer | Micro needle printer |
Test sample | Vaseline ointment |
Test Item | drop point Test |
Main Features and parameter
1.7 "touch screen display;
2.Imported temperature sensor to ensure accurate and stable temperature measurement and control;
3.Metal bath heating, no noise, no pollution, fast heating rate;
4.High temperature resistant special optical fiber is used for droplet detection.
5.Equipped with internal clock, no need to enter experimental date.
Applicable standards | Chinese Vaseline ointment 2020 |
Temperature measurement range | room temperature ~ 400 ℃ Resolution: 0.1℃ |
Number of test holes | 2 |
Ambient temperature | 10℃ ~ 35℃ |
Temperature control precision of metal bath |
±1℃
|
Environmental relative humidity | 30 ~ 80%RH |
Power supply: | AC220± 10% V 50HZ±1HZ |
Power supply | less than 2KW |
Typing | Chinese or English character printing |
Printer | Small thermal printer |
Detection mode | imported high-precision optical fiber detection |
Curve display | Display the trend chart of temperature time curve |
Storage | Experimental results can be stored in 199 groups of historical data for easy query; |
Result output | At the same time can be equipped with U disk output function, output to the computer end for long-term storage |
Output format | The output format of the USB flash disk is CSV or Excel. |
Standard printing | standard printing with micro printer automatic measurement automatic thermal sensitive printing |
Remote upgrade | With TCP network transmission function, software remote upgrade can be carried out later |
Data management | Can connect to LIMS system |
Data memory | Microcomputer instrument memory can be expanded to 16 gigabytes. |
Account management | According to the password to set up the account management layer, can set up the total account and sub-account. |
Packing list
S/N | Name | Quantity | Unit | Remarks |
1 | host | 1 | set | |
2 | Drop some grease cup | 2 | piece | |
3 | Drip test tube | 2 | piece | |
4 | Power cord | 1 | piece | |
5 | Certificate warranty card | 1 | copy | |
6 | Instructions | 1 | copy | |
7 | Printing paper | 1 | volume |
