Single Hole Paraffin Melting Point Tester 0℃ to 120℃ ASTM D87
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Method | Compressor Cooling | Temp Control Range | Adjustable From 0 ℃ ～ 120 ℃ |
|---|---|---|---|
| Number Of Test Holes | Single Hole | Temp Control Accuracy Of Bath | ± 0.01 ℃ |
| Working Environment | 0 ℃ ～ 35 ℃ | Relative Humidity | ≤ 80% |
| Highlight | Single hole paraffin melting point tester,Paraffin melting tester ASTM D87,0℃ to 120℃ melting point tester |
||
Product Description
Single Hole Fully Automatic Paraffin Melting Point Tester Accuracy 0 ℃ ～ 120℃ ASTM D87
Product Specifications
| Attribute | Value |
|---|---|
| Cooling method | Compressor cooling |
| Temp control range | adjustable from 0 ℃ ～ 120 ℃ |
| Number of test holes | single hole |
| Temp control accuracy of bath | ± 0.01 ℃ |
| Working environment | 0 ℃ ～ 35 ℃ |
| Relative humidity | ≤ 80% |
Product Description

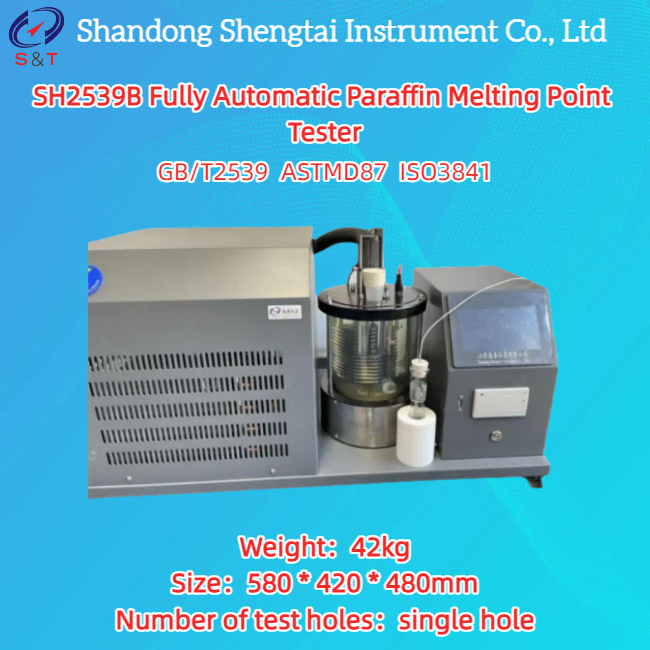

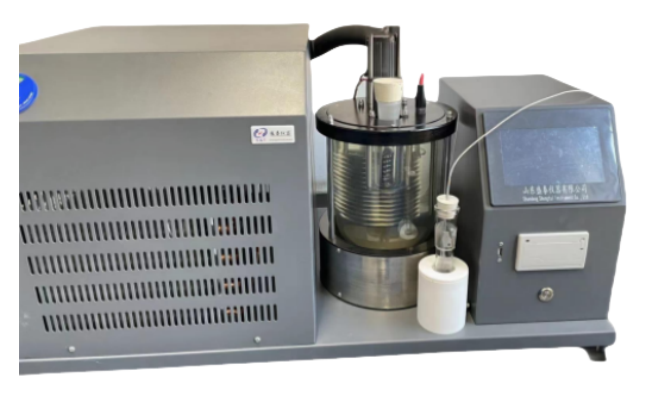

SH2539B Fully Automatic Paraffin Melting Point Tester
The SH2539B fully automatic paraffin melting point tester is designed and produced in accordance with national standards GB/T2539, ASTMD87, and ISO3841. The dual temperature and dual water bath instrument is specially designed and manufactured according to the requirements of national standard GB/T 2539-81, international standard ISO 3841, and American standard ASTM D87 "Determination of Paraffin Melting Point (Cooling Curve)". Suitable for determining the melting point of paraffin wax. Not suitable for measuring microcrystalline wax and oily paraffin products.
Instrument Features
- Designed with an embedded system and equipped with an imported PT100 temperature sensor
- Entire testing process is automatically monitored
- Color touch screen interface
- Experimental results can be stored and historical data viewed
- Print results directly on the instrument
- Results can be exported through USB flash drive for computer storage and comparison
Instrument Function
- Compressor cooling method allows for arbitrary setting of the cooling temperature
- Uses compressor refrigeration system
- Pt100 sensor provides high temperature sensitivity, resolution, and accuracy
- Compact compressor design with stable operation and no vibration
Technical Specifications
Cooling method: Compressor cooling
Temp control range: adjustable from 0 ℃ ～ 120 ℃
Display mode: Color touch screen display
Number of test holes: single hole
Temp control accuracy: ± 0.01 ℃
Storage method: Stores 199 sets of historical data
Result output: USB drive output to computer
Output format: CSV or Excel
Standard printing: Micro printer with automatic thermal printing
Data memory: Expandable to 16GB
Working environment: 0 ℃ ～ 35 ℃
Relative humidity: ≤ 80%
Power supply: 220V ± 10% 50Hz
Power consumption: 800W
Dimensions: 580 × 420 × 480mm
Weight: 42kg
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Quality Assurance
- Brand new instruments meeting national quality standards with manufacturer's certificate
- Materials and components meet specified technical requirements
- One year overall quality assurance (excluding normal wear and tear)
- Free maintenance for quality issues during warranty period
- Lifetime discounted parts supply and maintenance services
- After warranty, maintenance services available at cost
Standard Accessories
| Number | Name | Quantity | Unit | Note |
|---|---|---|---|---|
| 1 | Host | 1 | Unit | |
| 2 | Test bottle rubber stopper | 1 | Piece | |
| 3 | Melting point test tube | 1 | Piece | |
| 4 | Sensor | 2 | Piece | |
| 5 | Power line | 1 | Set | |
| 6 | Instructions | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate of Conformity Warranty Card | 1 | Copy |
