SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323

  • SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323
  • SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd.
Certification GB/T8017 ASTM D-323
Model Number SH8017
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 Sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Heating Power Of Water Bath 1600W Temp Range For Water Bath Use Room Temperature ～ 100 ℃
Pressure Measurement Range 0-200KPa Pressure Gauge Accuracy ± 0.4%
Environmental Temperature -10 ℃ ～ 35 ℃ Relative Humidity ≤ 85%
Highlight

Petroleum vapor pressure tester ASTM D-323

,

Crude oil testing equipment 0-200KPa

,

Vapor pressure tester with warranty
Leave a Message
Product Description
Petroleum Product Vapor Pressure Tester manometry 0-200KPa Reid Method ASTM D-323
Product Specifications
Attribute Value
Heating power of water bath 1600W
Temp range for water bath use room temperature ～ 100 ℃
Pressure measurement range 0-200KPa
Pressure gauge accuracy ± 0.4%
Environmental temperature -10 ℃ ～ 35 ℃
Relative humidity ≤ 85%
Product Description
SH8017 Petroleum Product Vapor Pressure Tester (Reid Method)
The SH8017 petroleum product vapor pressure tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T8017 "Determination of Vapor Pressure of Petroleum Products (Reid Method)" and ASTM D-323, and is suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products.
Technical Specifications
Standard GB/T8017 ASTM D-323
Working power supply AC220V ± 10% 50Hz
Heating power of water bath 1600W
Temp range for water bath use room temperature ～ 100 ℃
Temp control accuracy of water bath ± 0.1 ℃
Pressure measurement range 0-200KPa
Pressure gauge accuracy ± 0.4%
Environmental temperature -10 ℃ ～ 35 ℃
Relative humidity ≤ 85%
Power consumption of the whole machine not exceeding 1700W
Instrument size 485 * 405 * 980mm
Packaging size 1070 * 490 * 640mm
Packaging weight 58kg (wooden crate)

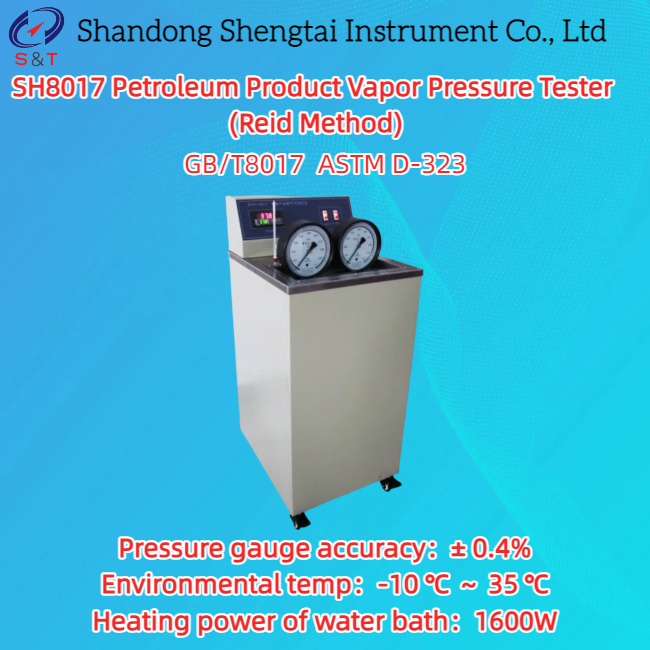

SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323 0
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance
  • The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity
  • The materials and main components provided meet the technical requirements specified in the technical documentation
  • The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts)
  • We are responsible for free maintenance of any instrument quality issues that occur during the warranty period
  • Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine
  • After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee

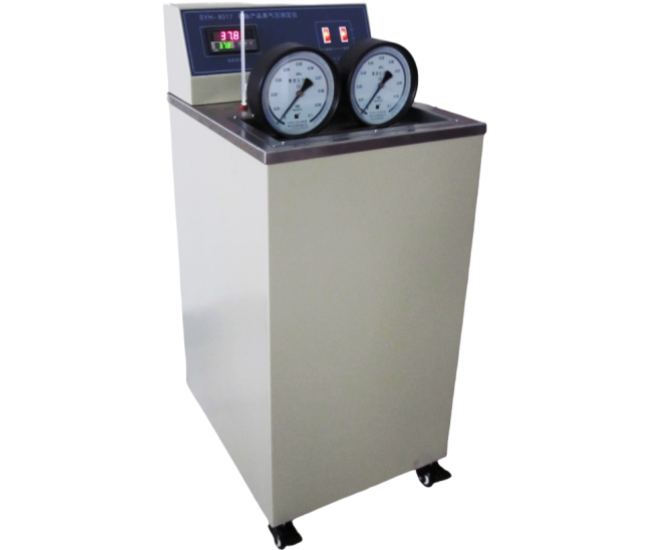

SH8017 Petroleum Vapor Pressure Tester 0-200KPa ASTM D-323 1
Packaging and Delivery
Packaging of goods: standard wooden or cardboard boxes.
Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Standard Package Contents
Number Name Quantity Unit Note
1 Vapor pressure tester 1 Unit
2 Vapor pressure oxygen bomb 2 Set
3 Pressure gauge 2 Piece
4 Mercury thermometer 1 Piece
5 Instructions 1 Copy
6 Packing list 1 Copy
7 Certificate of Conformity Warranty Card 1 Copy
