Automatic Jet Fuel Acid Value Tester 0.000-5.00mgKOH/g ASTM D3242

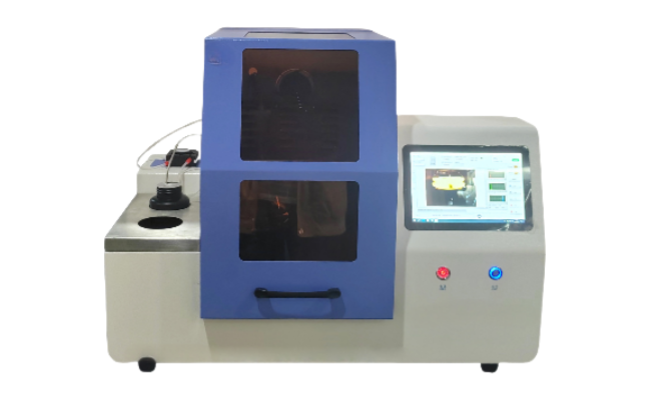

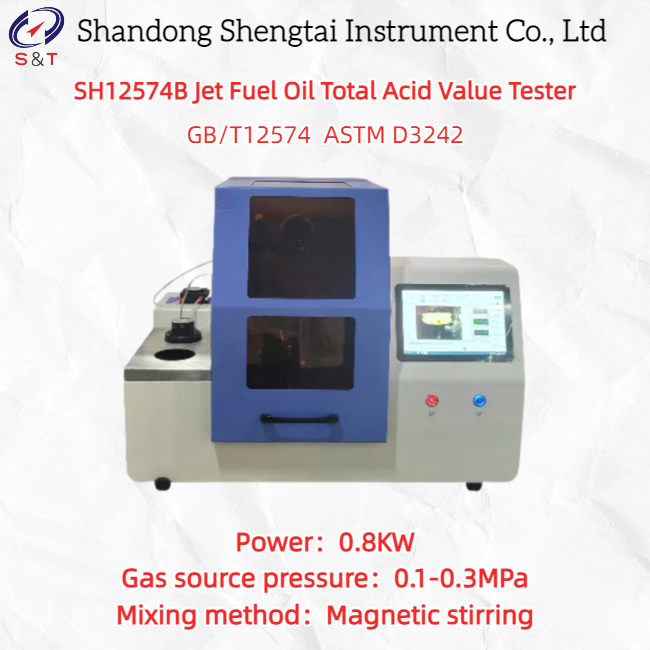

SH12574B Jet Fuel Oil Total Acid Value Tester

The SH12574B automatic jet fuel total acid value analyzer is suitable for measuring the total acid value of jet fuel. It is designed and manufactured strictly in accordance with the GB/T12574 standard, which is applicable to jet fuel with a total acid value range of 0.000-0.100mgKOH/g. Its principle is to use a color indicator to measure the total acid value of jet fuel.

The instrument is a monolithic structure, divided into two independent units: a magnetic stirring device and a nitrogen flow regulating device. The nitrogen flow rate is regulated by a car float flowmeter for stable airflow.

• Acid value measurement range: 0.000-5.00mgKOH/g (wide measurement range)
• Result display accuracy: 0.0001mgKOH/g
• Operating system: Windows and color touch screen display real-time titration process, nitrogen flow rate, and test status
• Backup observation: Closed glass observation window for transparent observation and safe operation
• Titration device: Micro pump automatically titrates with reliable accuracy
• Judgment method: CCD industrial camera image acquisition with automatic judgment
• Intelligent operation: Automatically completes nitrogen filling, titration, stirring, detection, and calculation
• Output record: Automatically stores historical records with time stamps for future reference and printing
• Control mode: Computer automatic control with WINDOWS Chinese operating software and touch control operation
• Titration endpoint: Automatically determined by image software
• Nitrogen flow rate: 10ml/min~1000ml/min, automatic control
• Gas source pressure: 0.1-0.3MPa
• Result processing: Automatic processing with report generation and real-time storage
• Power supply: AC220V ± 10% 50Hz
• Power: 0.8KW
• Operating environment: Laboratory with ventilation and safety protection
