Automatic Asphalt Softening Point Tester 2 Samples ASTM D36

  • Automatic Asphalt Softening Point Tester 2 Samples ASTM D36
  • Automatic Asphalt Softening Point Tester 2 Samples ASTM D36
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co., Ltd
Certification JTG E20 GB/T 4507 T 0606 ASTM D36
Model Number SH4507B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 Sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range Room Temp ～ 230 ℃ Temperature Resolution 0.1 ℃
Heating Slope (5.0 ± 0.5) ℃/min Number Of Measured Samples 2 Samples
Working Power Supply AC220±10%V 50Hz Blender Magnetic Stirring, Continuously Adjustable Stirring Speed
Highlight

Automatic asphalt softening point tester

,

Asphalt tester 2 samples ASTM D36

,

Transformer oil testing equipment with warranty
Leave a Message
Product Description
Automatic Asphalt Softening Point Tester 2 Samples Ring-And-Ball Method ASTM D36
Product Specifications
Attribute Value
Measurement range Room temp ～ 230 ℃
Temperature resolution 0.1 ℃
Heating slope (5.0 ± 0.5) ℃/min
Number of measured samples 2 samples
Working power supply AC220±10%V 50Hz
Blender Magnetic stirring, continuously adjustable stirring speed
Product Description

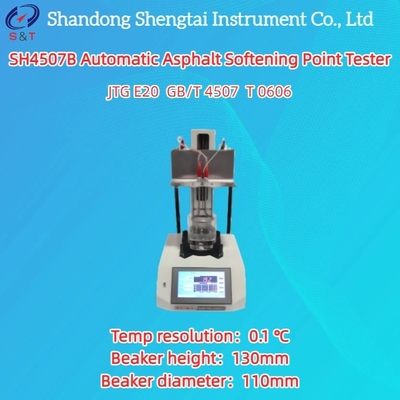

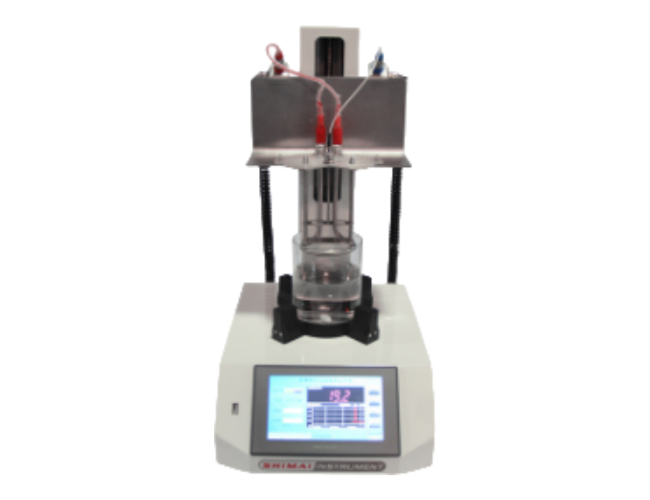

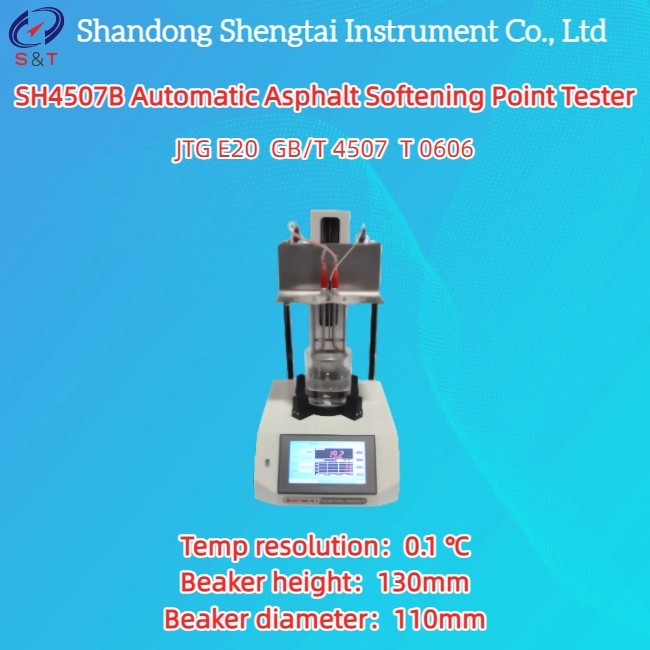

SH4507B Automatic Asphalt Softening Point Tester

The SH4507B automatic asphalt softening point tester is designed and manufactured in accordance with the requirements specified in the industry standards JTG E20 "Test Code for Asphalt and Asphalt Mixtures in Highway Engineering" (T 0606 "Asphalt Softening Point Test (Global Method)" and GB/T 4507 "Determination of Softening Point of Petroleum Asphalt" of the People's Republic of China.

This instrument is suitable for measuring the softening point of various types of asphalt such as road petroleum asphalt, coal tar asphalt, liquid petroleum asphalt, etc. It is the preferred instrument for asphalt production enterprises, highway and bridge construction units, and relevant colleges, universities, and research institutions.

Automatic Asphalt Softening Point Tester 2 Samples ASTM D36 0
Technical Features
  • Microcomputer intelligent control with LCD touch screen interface
  • Laser automatic detection and screw stepper motor lifting
  • Linear heating with uniform stirring of bath solution
  • Automated sample detection for fast and convenient testing
  • Accurate and reliable test results
Detailed Technical Parameters
  • Measurement range: Room temperature to 230℃
  • Temperature resolution: 0.1℃ (deviation can be corrected)
  • Heating tube power: 700W
  • Heating slope: (5.0 ± 0.5)℃/min after 3-minute stabilization
  • Beaker size: 110mm diameter × 130mm height
  • Sample capacity: 2 samples simultaneously
  • Data storage: 200 sets with retrieval and display capability
  • Power supply: 220±10% VAC 50Hz
  • Operating environment: 15℃～35℃ with stable conditions
  • Dimensions: 400 × 300 × 580 mm (Net), 495 × 405 × 660 mm (Packaged)
  • Weight: 12kg (Net), 21.5kg (Packaged)
Measurement Conditions
  • For samples with softening point below 80℃: 5℃～80℃ (distilled water)
  • For samples with softening point above 80℃: 32℃～210℃ (dimethyl silicone oil)
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
