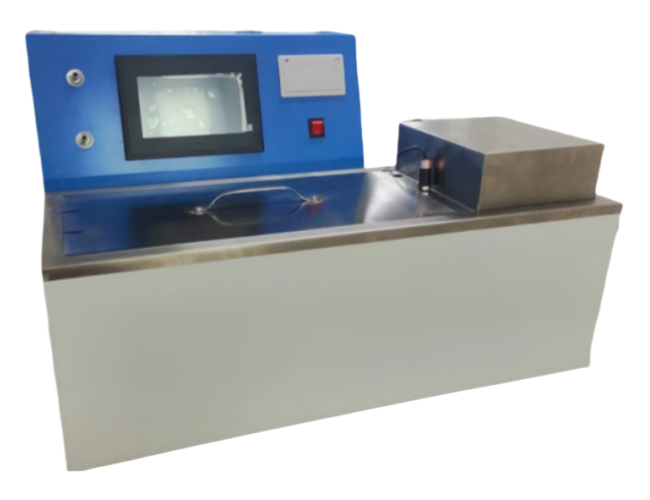

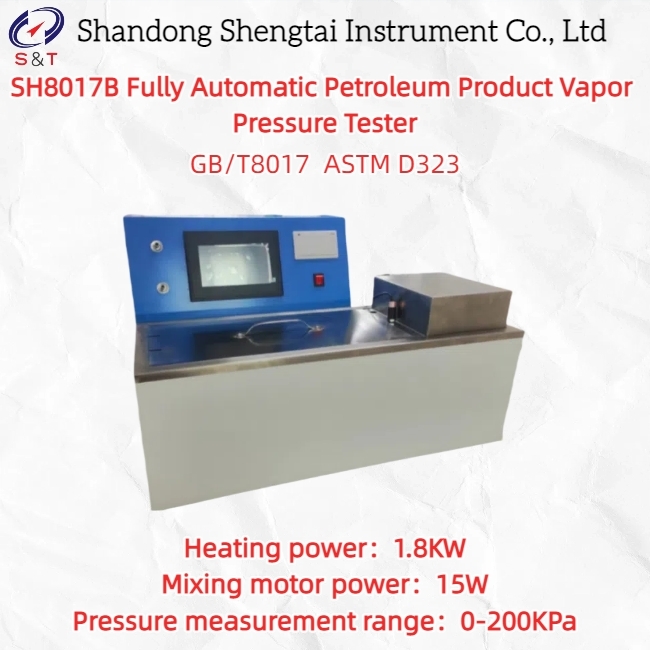

2-Round Automatic Petroleum Vapor Pressure Tester ASTM D323

Standard: GB/T8017 ASTM D323

The SH8017B fully automatic petroleum product vapor pressure tester is designed and manufactured according to GB/T8017 "Petroleum Product Vapor Pressure Determination Method (Reid Method)".

Vapor pressure: Suitable for measuring the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products. This instrument mainly consists of a color LCD touch screen, a water bath and temperature control device, a vapor pressure bomb, a pressure sensor, mechanical rotation, and other parts. It has the characteristics of flexible use, easy mobility, printing, and fault self checking.

• 7-inch color touch screen, can be operated according to screen prompts without training.
• Full Chinese operation interface, allowing for easy and convenient switching of pages. Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing of results, ultra large capacity storage function, can store tens of thousands of data, and can be queried.
• The constant temperature water bath relies on a circulation system and has a stirring function, making the water bath temperature uniform without dead corners and achieving high temperature control accuracy.
• Safety performance: Automatic diagnosis, over temperature alarm and automatic cut-off of heater power supply, with alarm prompt function after the test is completed.
• Equipped with online adjustment function, it can effectively correct the deviation of pressure and temperature sensors.

• Power supply: AC220V ± 10% 50Hz
• Heating power: 1.8KW
• Mixing motor power: 15W
• Pressure measurement range: 0-200KPa
• Temperature control range: room temperature ～ 90 ℃
• Temperature control accuracy: ± 0.1 ℃
• Display accuracy: LCD display, 0.1KPa
• Pressure range: 0-200KPa
• Constant temperature water bath: 37.8℃
• Number of rounds hung: 2 rounds
• Angle degree: The instrument automatically rotates at an angle of 30 degrees
• Sensor: Pt100
• Working power supply: AC220V ± 10% 50HZ
• Dimensions: 900 × 450 × 650mm
• Weight: 50kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice. Continuous product development may require changes to product specifications and prices without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
• The materials and main components provided meet the technical requirements specified in the technical documentation;
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

• The refrigerator can be set to a temperature of 0 degrees Celsius
• Transfer the sample pot
