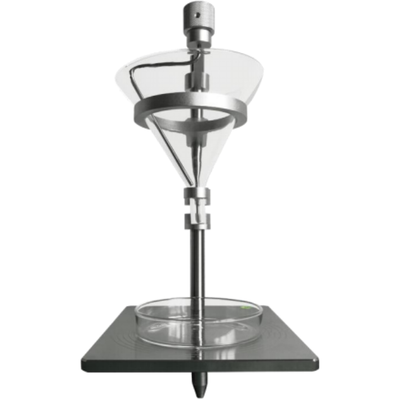

Powder And Granule Angle Of Repose Analyzer Taper 60º Glass Funnel Stainless Steel ISO 4324

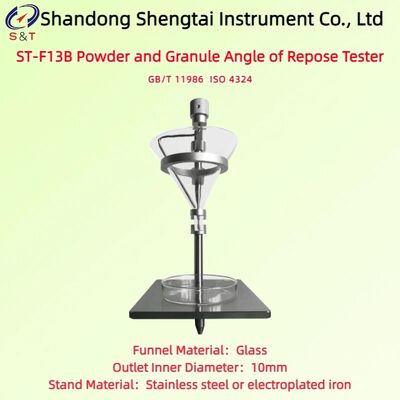

ST-F13B Powder and Granule Angle of Repose Tester

Standard: GB/T 11986 ISO 4324

ST-F13B Powder and Granule Angle of Repose Tester is designed and manufactured in accordance with the provisions of the national standardGB/T 11986-89 "Method for Determination of Angle of Repose of Surfactant Powders and Granules".

Scope of Application

This product is intended for laboratories of production, opon, and user units to determine the angle of repose of surfactant powders and granules.

Applicable Standard Requirements

GB/T 11986-98for Determination of Angle of Repose of Surfactant Powders and Granules". ISO 4324

Technical Parameters of the Tester

1.Lighting: Meets the lighting requirements for microscope operation.

2.The laboratory is in a natural state regarding airflow and vibration, installed in a stable fume hood with thn turned off. Additionally, the laboratory is free from dust, corrosive substances, and volatile materials.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, there are may be slight changes without prior notice.

General performance

1. Complies with GB-T11986-98 Technical Specification for Measuring the Angle of Rest of Surfactant Powder and Particles.

2. The product meets the requirements of easy use and maintenance, safety and reliability, economic rationality, and practical beauty.

3. Installation, debugging, and usage methods of the instrument

4. Confirm that the experimental platform for placing this instrument is in a horizontal state,

5. Install the instrument according to the assembly diagram and technical specifications in GB-T11986-98 Surface active agent powder and particle angle of repose measurement.

Installation of instruments

1. The guide rod of this instrument bracket is divided into four adjustable sliding sleeves, starting from the top, which are the movable sliding sleeve of the mixing device, the fixed sleeve at the 60 degree taper of the glass funnel, the movable sliding sleeve at the 10mm discharge port, and the movable sliding sleeve of the ruler

2. Release and remove the movable sliding sleeve of the mixing device, fix the glass funnel through the 60 degree taper and the lower discharge port through the 10mm fixed sleeve of the discharge port, and visually adjust it to be perpendicular to the base.

3. Place a container with an inner diameter of 100mm and a height of 25mm at the center point with reference to the bottom plate scale

4. Adjust the height value between the discharge port under the glass funnel and the bottom plate by 100mm.

5. Adjust the appropriate height visually above the fixed mixing device and glass funnel, and fix it.

6. Complete the test according to the standard requirements

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold tou:

----The materials provided are brand new, meet quality standards, and are accompanied by manufacturer certificates of conformity;

----The materials and major components comply with the technical requirements specified in the technical dumentation;

----The quality warranty period for the complete equipment is one year (excluding normal wear and tear of consumable parts).

----For any instrument quality issues arising during the warrantriod, we are responsible for free repairs. For equipment failures caused by the user's responsibility, we will provide repairs at a reasonable charge.

----We offer lifetime discounted supply of spare parts and lifetimentenance and repair services for the equipment.

----After the warranty period expires, if the user requires repairs or technical services, we will only charge for the cost of materials.

Packaging and Delivery

1. Packaging: Standard wooden crates or cartons.

2. Inner packaging: Products are wrapped in elastic foam, and corners are secured with hardwood boards and strong strapping.

Packing List
