Touch Screen Auto Medication Relative Density Meter 0.001 ～ 1.999g/Cm³ Temp Control 20℃ EP 2.2.5

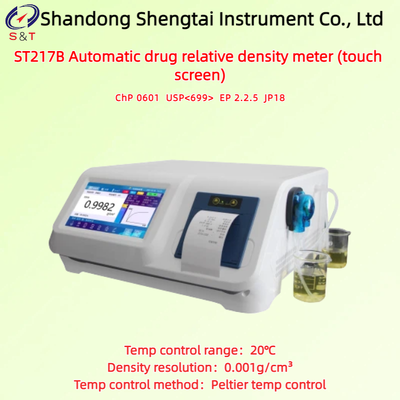

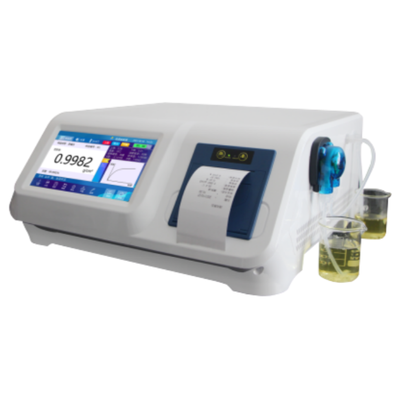

ST217B Automatic medication relative density meter touch screen

Standard: ChP 0601, USP<699>, EP 2.2.5, JP18

ST217B automatic medication relative density meter (touch screen) is designed and manufactured based on the third method of oscillating density meter in the 2020 Chinese Pharmacopoeia 0601 relative density measurement method. The oscillating density meter mainly consists of a U-shaped oscillating tube (usually made of glass material, used to place samples), an electromagnetic excitation system (to make the oscillating tube oscillate), a frequency meter (used to determine the oscillation period), and a temperature control system.

Testing principle

Inject a small amount of sample into a temperature controlled sample tube, record the vibration frequency or period, and calculate the density of the sample using the previously obtained sample tube constant. The constant of the sample tube is determined by the vibration frequency of the sample tube when it is filled with a known density calibration solution. The instrument will directly display the density value after injecting the sample into the sample tube.

Performance characteristics

● Built-in sample injection pump for automatic sample injection, rinsing, and drying of the measurement cell

● High-definition video camera technology for convenient direct observation and measurement of the pool

● The operation procedure can be performed manually or automatically. Manual operation takes 1 to 4 minutes, while the automatic program lasts 2 to 10 minutes (specific duration depends on the actual temperature of the sample)

● Automatic Sampling: Utilizes a microcontroller-controlled stepper motor to drive the peristaltic pump for sample collection, enhancing the product's automation level

● Acid and alkali-resistant pipelines: All pipelines in direct contact with liquids are imported acid and alkali-resistant pipes, ensuring the instrument can measure acidic and alkaline solutions

● High-definition video imaging technology for convenient direct observation and measurement of the pool

● 100 sets of test values are automatically saved, with the ability to automatically calculate the average, maximum, and minimum values

● Calibration function: When the instrument is not used for a long time, drift may occur. This instrument can use pure water at 20°C as a standard for calibration, a feature unattainable with a glass hydrometer.

Main technical parameters

● Display values: density, relative density, temperature, concentration, Bomei degree

● Measurement method: Store 100 sets of custom measurement methods, including measurement parameters for each sample

● Stability assessment: Based on measurement accuracy and time, the stability time can be set independently

● Concentration conversion: Input density and concentration table or conversion formula, automatically convert concentration values

● Statistical calculation: 100 sets of test values are automatically saved, and the average, maximum, and minimum values can be automatically calculated

● Software extension: User management, audit tracking, able to export data in Excel format

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
