Digital Vibration Density Meter 500g Sample Amplitude Max 15mm Torsion 0.86N.M ASTM B527

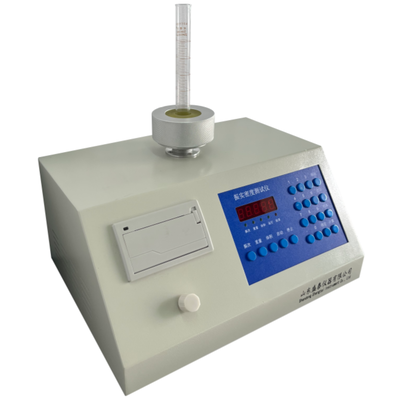

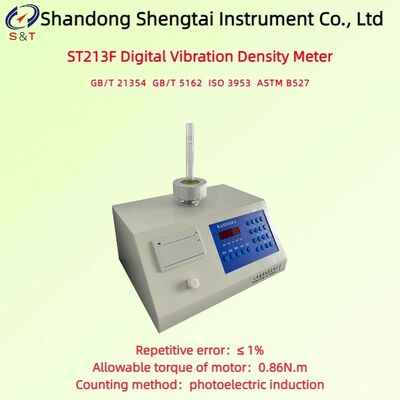

ST213F Digital Vibration Density Meter

Standard: GB/T 21354, GB/T 5162, ISO 3953, ASTM B527

Powder density refers to the mass of powder per unit volume. Due to the voids (or pores) between particles or within particles, the powder density is typically lower than the true density of the corresponding material. Based on testing methods, powder density can be classified into bulk density (also known as settled density) and tapped density. Bulk density is determined by filling a known volume of measuring cup with the powder sample in a loose state, then weighing the cup and the powder sample to calculate the bulk density. Tapped density is measured by compacting the powder in a container under specified conditions.

Compliant with standards:

GB/T 21354-2008 "General Method for Determination of Tap Density of Powder Products", GB/T 5162-2020 "Determination of Tap Density of Metallic Powders", ISO 3953:1993 "Methods for Determination of Tap Density of Metallic Powders", and independently developed and manufactured powder density testing instruments with proprietary intellectual property rights, referenced the United States Pharmacopeia.

The instrument covers all the indicators specified in the national standard GB/T 5162-2020 and ISO 3953:1993

For non-metallic powders, the powder density tester has expanded certain functions, such as: - The "vibration amplitude" has been extended from the standard-specified 3mm to adjustable integer values of 1mm to 15mm; - The "vibration frequency" has been expanded from the standard-specified range of 100 to 300 cycles per minute to a range of 0 to 300 cycles per minute; - The "vibration count" has been extended from the standard-specified 3000 cycles to arbitrary settings of 0 to 99,999 cycles (Note: When set to 0 cycles, the output result is the "loose bulk density").

Features:

It consists of adjustable-speed motors, vibration components, and other parts. The instrument features a compact, sturdy structure and simple operation.

Technical Specifications

Other requirements: The environment should be clean and free of smoke and dust, and there should be no mechanical vibration sources or electromagnetic interference sources around.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Test Object:

Various metal powders: such as aluminum powder, zirconium powder, nickel powder, tungsten powder, tin powder, zinc powder, molybdenum powder, magnesium powder, copper powder, and other rare metal powders, alloy powders, or metal oxide powders. Various non-metal powders: such as talcum powder, kaolin, calcium carbonate, coal powder, fluorescent powder, brucite, calcite, wollastonite, tourmaline, diamond, barite, fluorite, zeolite, boron carbide, clay, graphite, quartz, gypsum, bentonite, diatomite, zirconia, corundum, mica, clay, titanium dioxide, etc. Other powders: such as soil, dyes, pesticides, abrasives, coatings, food additives, catalysts, cement, river sediment, etc.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
