Vaseline Ointment Cone Penetration Analyzer 1 - 700 Cone Penetration Cold Light Source ChP 0983

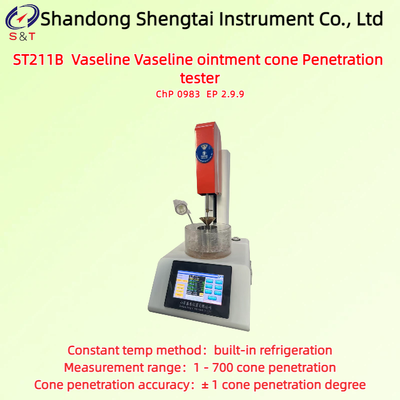

ST211B Vaseline Vaseline ointment cone Penetration tester

Standard: ChP 0983 EP 2.9.9

ST211B automatic yellow/white Vaseline ointment cone Penetration tester is designed and manufactured in accordance with the technical requirements and relevant regulations of pharmacopoeia 2025 0983 cone Penetration law and European Pharmacopoeia Method 2.9.9 - Measurement of Consistency by Penetration and is mainly suitable for testing the coning degree of Vaseline and ointment.

This instrument can also be used for the inspection of solid fine grain, powder, colloid, jelly and other materials, as well as food raw materials such as cheese, sugar gum, butter, wheat gluten, cream and fermentation, etc. It can be widely used in food industry, traffic highway engineering and other industrial sectors.

Main technical features

● Conforms to the standard: Chinese Pharmacopoeia 2025, Method 0983 for Penetration Test

● Upgraded to a 7-inch TFT color LCD display

● Constant temperature cooling method: Built-in semiconductor cooling

● Detection method: High-precision displacement sensor

● Others: Equipped with a cold light source for convenient use and operation

● Storage Method: The experimental results can store up to 1,999 sets of historical data for easy retrieval;

● Result Output: It can also be equipped with a USB output function to transfer data to a PC for long-term storage

● Output Format: The result USB drive output format is CSV or Excel.

● Data Protection: Features a date and password setting function.

● Standard Printing: Standard mini printer, automatic measurement, automatic pin printing

★ Remote Upgrade: Equipped with TCP network transmission capability, enabling remote software upgrades in later stages (optional)

★ Data Management: Compatible with LIMS system (optional)

★ Account Management: Based on password settings, accounts can be hierarchically managed with the option to create master accounts and sub-accounts, featuring role assignment functionality (optional).

★ Audit Trail: Based on account hierarchy, the audit trail feature allows for role assignment, including roles such as administrator, engineer, and operator, which can be either fixed or assigned dynamically (optional).

Technical parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
