Manual Vaseline Ointment Cone Penetration Analyzer Mearsure 0 - 70mm Temp Control 25 ± 0.1℃ EP 2.9.9
Product Details
| Measurement Range | 0-700 Cone Penetration (digital Display Shows 0-70mm) | Resolution | 0.01mm |
|---|---|---|---|
| Needle Insertion Accuracy | ± 1 Cone Penetration Degree | Temp Measurement Range | 10 ～ 50℃ (equipped With Semiconductor Cold Cycle Device, Can Be Heated Or Cooled) |
| Temp Control Accuracy | 25 ± 0.1℃ | Instrument Size | 330 * 225 * 570mm |
| Highlight | Manual Vaseline ointment analyzer,Cone penetration tester 0-70mm,Temperature-controlled penetration analyzer |
||
Product Description

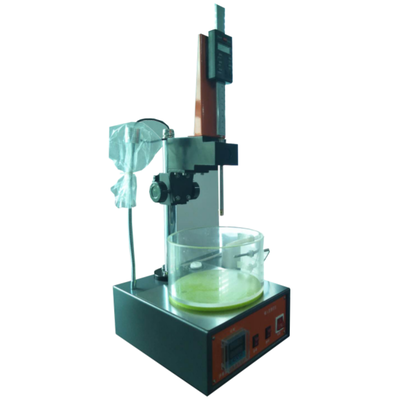

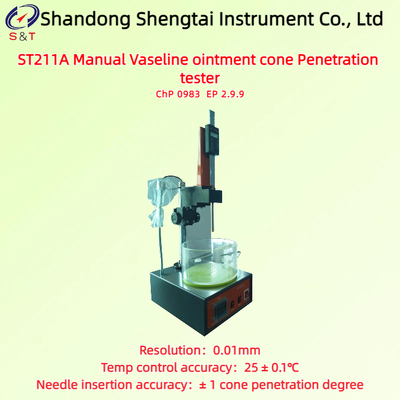

ST211A Manual Vaseline ointment cone Penetration tester
Standard: ChP 0983 EP 2.9.9
ST211A manual Vaseline ointment cone Penetration tester is based on the 2025 pharmacopoeia 0983 cone Penetration and European Pharmacopoeia Method 2.9.9 - Measurement of Consistency by Penetration the determination of the technical requirements of the law of and the relevant provisions of the design and manufacturing, the main applicable is suitable for the soft cream, eye cream and commonly used matrix materials (such as vaseline, lanolin, wax) half solid material, in order to control the hardness and the properties such as viscosity, avoid affect coating and ductility.
Main technical features
● Digital display is adopted to display the coning degree value, which is intuitive and eye-catching.
● With the lifting frame coarse adjustment, fine adjustment function, easy to adjust, accurate needle.
● Equipped with heating and cooling constant temperature bath, water bath temperature automatic control, cost-effective equipment.
Main technical parameters and indicators
| Measurement range | 0-700 cone penetration (digital display shows 0-70mm) |
| Cone entry time control device | The time can be set arbitrarily according to one's own needs, with a time error of less than ± 0.1s |
| Resolution | 0.01mm |
| Needle insertion accuracy | ± 1 cone penetration degree |
| Temp measurement range | 10 ～ 50℃ (equipped with semiconductor cold cycle device, can be heated or cooled) |
| Temp control accuracy | 25 ± 0.1℃ |
| Temp control method | high-precision digital temperature controller, capable of maintaining a constant temp up to the standard requirement of 25℃ |
| Standard cone | 102.5 ± 0.05g, in compliance with the 2025 Pharmacopoeia |
| Lifting bracket | a dual lifting and adjusting mechanism for coarse and fine adjustment, making it easy for the needle tip to align with the sample plane |
| Other | Equipped with a cold light source for easy use and operation |
| Standard cone |
Cone 1: The mass of cone I is 102.5g ± 0.05g, and the mass of the matching cone rod is 47.5g ± 0.05g; Cone 2: The mass of cone II is 22.5g ± 0.025g, and the mass of the matching cone rod is 15g ± 0.025g (optional); Cone No. 3: The total mass of cone No. III and cone rod is 9.38g ± 0.025g (optional) |
| Instrument size | 330 * 225 * 570mm |
| Instrument weight | 7.3kg |
| Packaging size | 450 * 350 * 550mm |
| Packaging weight | 12.2kg |
| Thermostatic bath size | 280 * 155 * 195mm |
| Weight of constant temperature bath | 2.4kg |
| Thermostatic bath packaging size | 395 * 285 * 480mm |
| Thermostatic bath packaging weight | 6.1kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they maybe slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | No. 1 cone | 1 | Piece | |
| 3 | Sample box 1 | 1 | Piece | |
| 4 | Heating and cooling thermostatic bath | 1 | Set | |
| 5 | Power cord | 1 | Piece | |
| 6 | Certificate warranty card | 1 | Copy | |
| 7 | Instructions | 1 | Copy |
