4 Holes Auto Phenol Kinematic Viscometer RT ～ 100℃ Digital Display USB Input ASTM D445

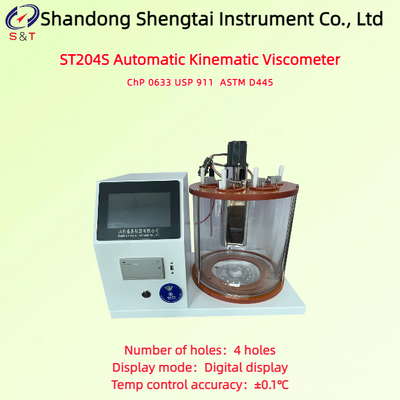

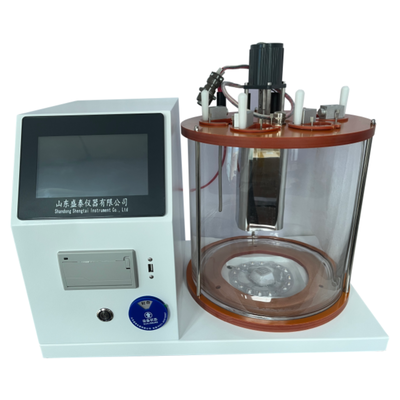

ST204S Automatic Kinematic Viscometer

Standard: ChP 0633 USP 911 ASTM D445

ST204S Automatic Kinematic Viscosimeter is designed and manufactured in accordance with the method specified in General Rule 0633 of the 2025 Chinese Pharmacopoeia. This method employs a relative approach to measure the time required for a fixed volume of liquid to flow through a capillary tube under gravity, thereby determining the kinematic viscosity of the fluid.

It can simultaneously accommodate four viscometers for experiments, featuring a large-color LCD screen with Chinese display and no-label buttons. Temperature measurement employs a precision platinum resistance PT100, allowing arbitrary setting from 15 to 200°C. It supports power-off memory storage of capillary constants, automatically calculates viscosity values, and complies with ASTM D445 standards

Kinematic viscosity: At a constant temperature, the gravitational flow of a specific volume of model is determined through a calibrated glass capillary viscometer. The constant of the capillary viscometer varies with time, and the kinematic viscosity of the product is used to measure the viscosity of liquids

Instrument features:

● The constant temperature bath is a round glass tank with uniform temperature distribution inside and excellent temperature control

● This instrument employs a precision digital temperature controller to regulate the temperature within the bath, with solid-state relays (SSRs) serving as the actuating components. It features accurate temperature control, contactless operation, silent performance, spark-free operation, rapid response, and long service life.

● The capillary gauge features a three-point vertical design, offering flexible and convenient operation with reliable clamping.

● The viscosity tube can be selected as either the Ubbelohde or Ostwald tube based on requirements.

● Equipped with USB input functionality, it can output data to a PC for long-term storage.

● Storage Method: Experimental results can store 199 sets of historical data for easy retrieval;

● Output Format: The result USB flash drive output format is CSV or Excel.

Technical Specifications:

Consumables to be prepared by the customer: water or glycerin.

Strictly in accordance with national standards, the following reagents must be used to clean the viscosity tube before the experiment: solvent oil or petroleum.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
