2 Holes Air-Cooled Stearic Acid Congealing Temperature Teste Stirring 1200rpm ChP 0613

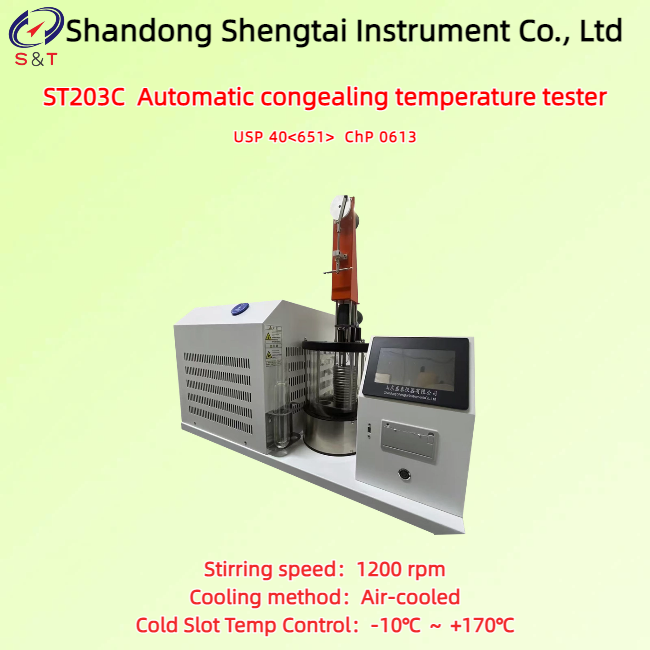

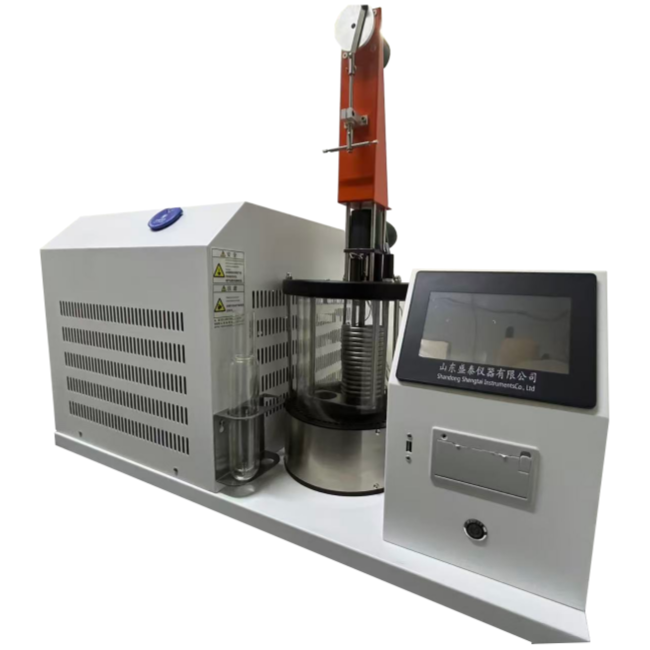

ST203C Automatic congealing temperature tester

Polyethylene glycol congealing temperature tester/Freezing point tester

glacial acetic acid congealing temperature tester/Freezing point tester

Phenol congealing temperature tester/Freezing point tester

Chlorophenol congealing temperature tester/Freezing point tester

stearic acid congealing temperature tester/Freezing point tester

magnesium stearate congealing temperature tester/Freezing point tester

dibutyl hydroxytoluene congealing temperature tester/Freezing point tester

bisphenol A congealing temperature tester/Freezing point tester

Standard: ChP 0613 USP40<651>

ST203C Automatic medicine Freezing Point Determinator is designed and manufactured in accordance with USP40 (U.S. Pharmacopeia 40th Edition) Method 651 for Freezing Point Determination and the General Rule 0613 for Freezing Point Determination in the 2025 Chinese Pharmacopoeia. It is suitable for measuring the freezing point of medicine solutions, which refers to the temperature at which a liquid medicine solidifies and remains unchanged for a short period. Certain medicine exhibit specific freezing points, and changes in purity can alter the freezing point accordingly. Measuring the freezing point helps distinguish or assess the purity of medicine, such as polyethylene glycol, glacial acetic acid, magnesium stearate phenol, and bisphenol A.

Instrument Features:

● Designed with an embedded system, featuring automatic detection and printing throughout the entire testing process

● Test results can be exported via USB flash drive;

● 7-inch color touchscreen; capable of storing test results; allows viewing of historical data;

● The results are printed on the instrument, and mechanical stirring is performed automatically.

● Account Management: Audit tracking function and hierarchical account management, supporting 3-level account management (optional).

● Storage Method: The experimental results can store up to 1,999 sets of historical data for convenient retrieval;

● Result Output: It can also be equipped with a USB flash drive output function, allowing data to be saved on a computer for long-term storage

● Output Format: The result USB flash drive output format is CSV or Excel.

● Standard printing: Standard mini printer, automatic measurement, automatic pin-type printing

● Data Management: Compatible with LIMS system (optional)

Technical Parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
