2 Holes Auto Medicine Freezing Point Determination Instrument -10℃ ～ +170℃ USP 40<651>

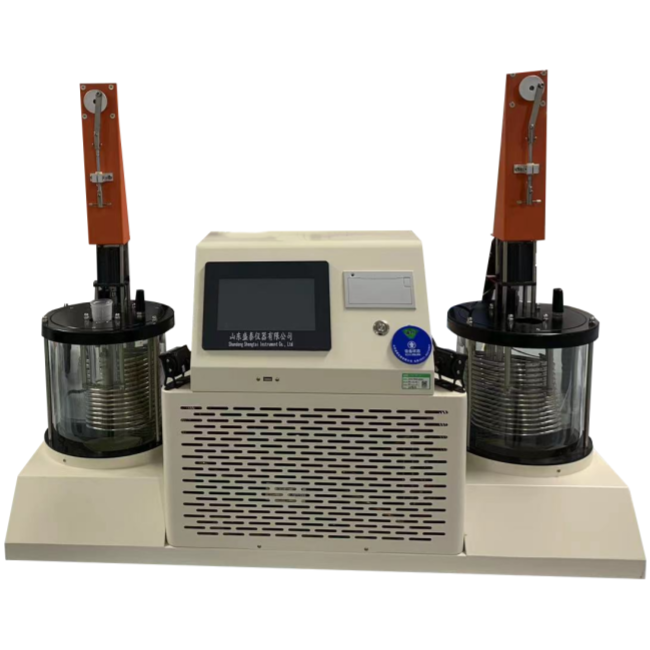

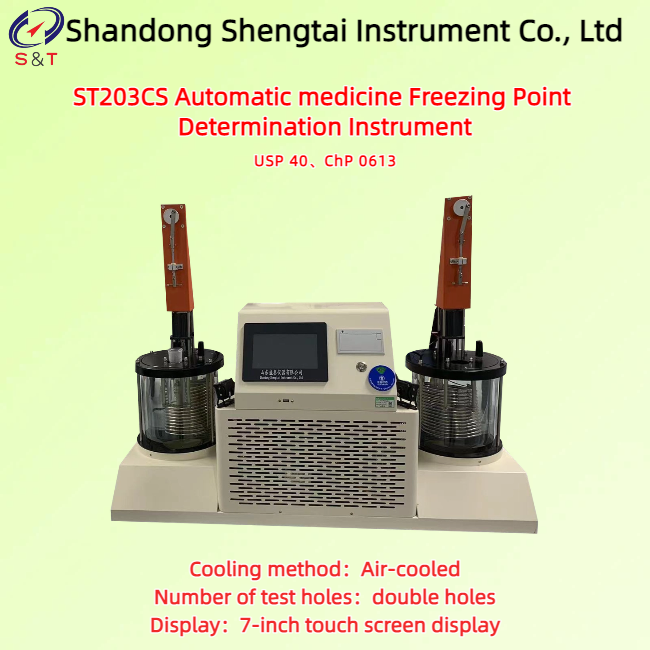

ST203CS Automatic medicine Freezing Point Determination Instrument

Standard: USP 40<651>,ChP 0613

ST203CS Automatic medicine Freezing Point Apparatus is designed and manufactured in accordance with USP 40 (United States Pharmacopeia 40th Edition) Chapter 651 "Freezing Point Determination" and the "General Rule 0613 Freezing Point Determination" from the Chinese Pharmacopoeia 2025. It is suitable for measuring the freezing point of pharmaceutical solutions, which is the temperature at which a medicine transitions from liquid to solid and remains stable for a short period. Certain medicine exhibit specific freezing points, and changes in purity can alter these points. Freezing point determination helps distinguish or assess the purity and impurity levels of medicines, such as polyethylene glycol, glacial acetic acid, phenol, magnesium stearate, bisphenol A, and others.

Instrument Characteristics:

● Designed with an embedded system, featuring automatic detection and printing throughout the entire testing process

● Test results can be exported via a USB drive;

● 7-inch color touch screen; capable of storing test results; allows viewing of historical data;

● The instrument prints the results, and mechanical stirring is performed automatically.

● Data Management: Compatible with LIMS systems

● Account Management: Audit trail functionality and hierarchical account management, supporting 3-level account administration.

● Data Memory: The microcomputer instrument's memory can be expanded to 16GB.

● Sample stirring: Synchronous geared motor, 60 cycles per minute.

● Storage Method: The experimental results can store up to 1,999 sets of historical data for convenient retrieval;

● Result Output: It can also be equipped with a USB flash drive output function to transfer data to a computer for long-term storage

● Output format: The result USB drive output format is CSV or Excel.

● Standard printing features: Standard mini printer, automatic measurement, automatic pin printing

Technical parameters:

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
