Polyethylene Glycol Congealing Temperature Analyzer -30℃ ～ +80℃ Air Cooling USP 41 651

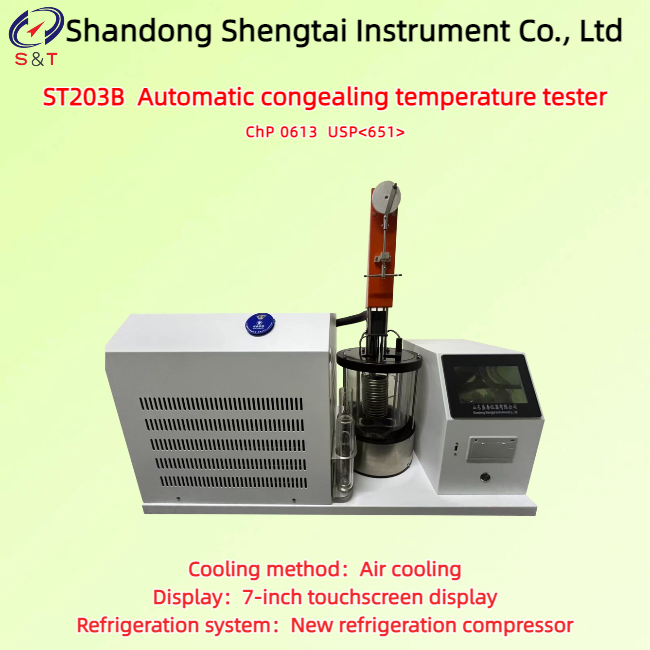

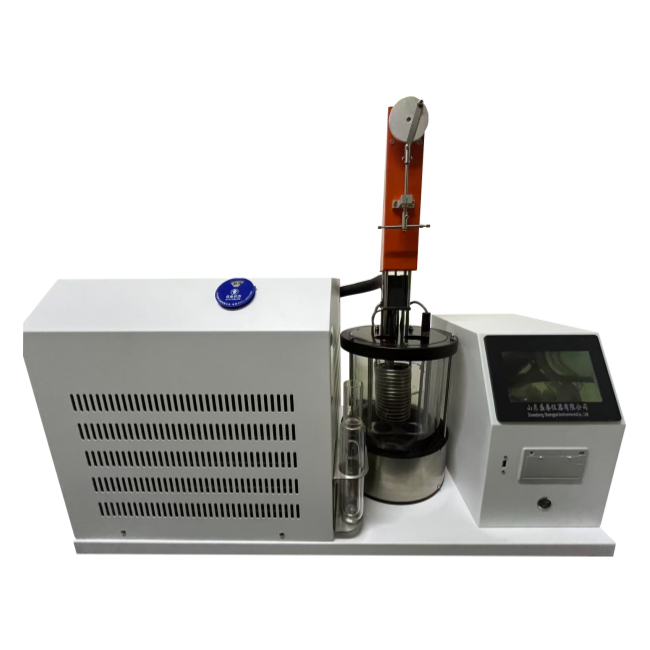

ST203B Automatic congealing temperature tester

Polyethylene glycol congealing temperature tester/Freezing point tester

Glacial acetic acid congealing temperature tester/Freezing point tester

Phenol congealing temperature tester/Freezing point tester

Chlorophenol congealing temperature tester/Freezing point tester

Stearic acid congealing temperature tester/Freezing point tester

Magnesium stearate congealing temperature tester/Freezing point tester

Dibutyl hydroxytoluene congealing temperature tester/Freezing point tester

Standard: ChP 0613 USP 41 651

ST203B automatic congealing temperature tester is designed and manufactured according to the general rule 0613 of The Chinese Pharmacopoeia in 2025 and USP41 651 congealing temperature. Suitable for determination of the congealing temperature of medicine. The maximum temperature at which a medicine stays unchanged in a short period of time when it condenses from a liquid to a solid is determined. Some medicine have certain condensation point, purity change, condensation point also changed.

The determination coagulate point may distinguish or examine the pure impurity degree of the medicine.

Technical parameters:

● Designed with an embedded control system, featuring automatic monitoring and printing throughout the entire testing process.

● Data Memory: The microcomputer instrument's memory can be expanded up to 16GB.

● 7-inch color touchscreen; capable of storing test results; allows viewing of historical data;

● Storage Method: The experimental results can store 1,999 sets of historical data for easy retrieval;

● Result Output: It can also be equipped with a USB output function to transfer data to a computer for long-term storage

● Output format: The results should be exported to a USB drive in CSV or Excel format.

● Standard Printing: Standard mini printer, automatic measurement, automatic pin-type printing

★ Output Extension: Printer interface, compatible with HP1108 laser printers for printing A4 experimental reports and curves (optional)

● Account Management: Audit trail functionality and hierarchical account management, supporting 3-level account management (optional).

● Data Management: Compatible with LIMS system (optional)

● Data extension: Audit trail function (optional)

● Low-temperature bath requires a thermal conduction medium: dimethyl silicone oil (optional) 6L

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
